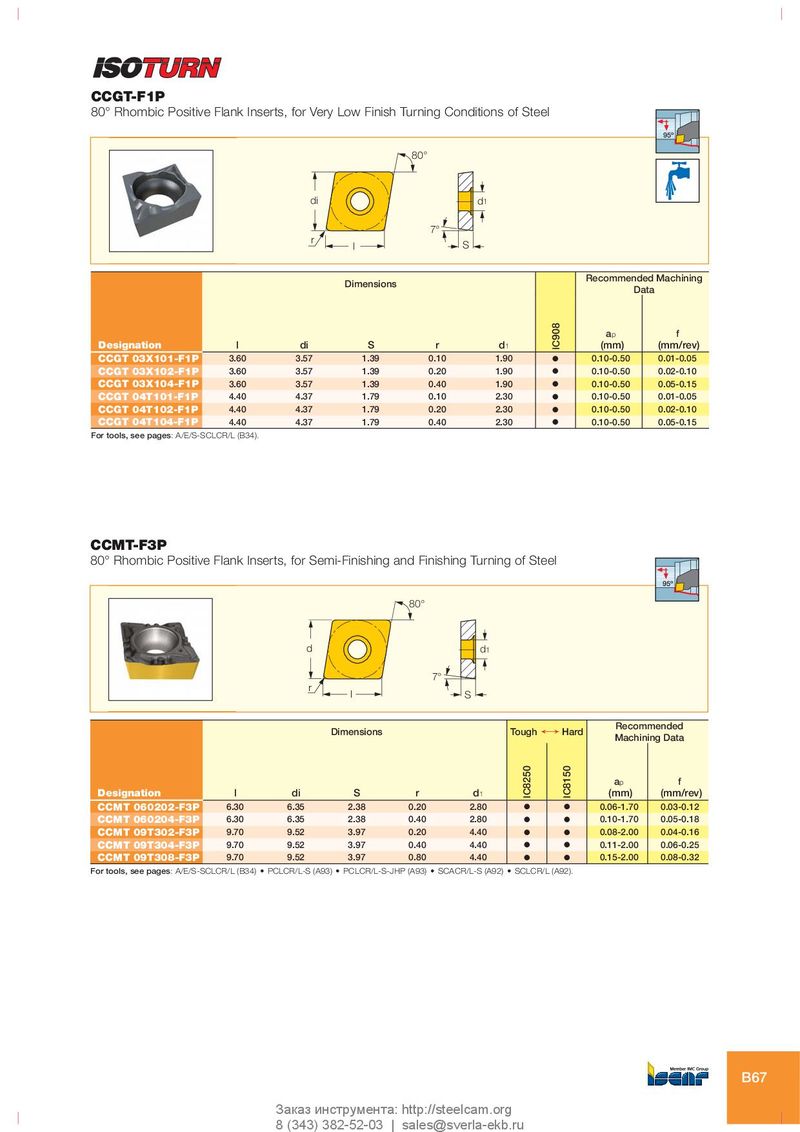

Каталог Iscar инструмент для внутренней обработки - страница 67

CCGT-F1P
80° Rhombic Positive Flank Inserts, for Very Low Finish Turning Conditions of Steel
95º

80°

di d1
7°
r
l S

Recommended Machining
Dimensions
Data


IC908
ap f
Designation l di S r d1 (mm) (mm/rev)
CCGT 03X101-F1P 3.60 3.57 1.39 0.10 1.90 O 0.10-0.50 0.01-0.05
CCGT 03X102-F1P 3.60 3.57 1.39 0.20 1.90 O 0.10-0.50 0.02-0.10
CCGT 03X104-F1P 3.60 3.57 1.39 0.40 1.90 O 0.10-0.50 0.05-0.15
CCGT 04T101-F1P 4.40 4.37 1.79 0.10 2.30 O 0.10-0.50 0.01-0.05
CCGT 04T102-F1P 4.40 4.37 1.79 0.20 2.30 O 0.10-0.50 0.02-0.10
CCGT 04T104-F1P 4.40 4.37 1.79 0.40 2.30 O 0.10-0.50 0.05-0.15
For tools, see pages: A/E/S-SCLCR/L (B34).


CCMT-F3P
80° Rhombic Positive Flank Inserts, for Semi-Finishing and Finishing Turning of Steel
95º

80°

d d1
7°
r
l S

Recommended
Dimensions Tough ¥ Hard
Machining Data
IC8250

IC8150


ap f
Designation l di S r d1 (mm) (mm/rev)
CCMT 060202-F3P 6.30 6.35 2.38 0.20 2.80 O O 0.06-1.70 0.03-0.12
CCMT 060204-F3P 6.30 6.35 2.38 0.40 2.80 O O 0.10-1.70 0.05-0.18
CCMT 09T302-F3P 9.70 9.52 3.97 0.20 4.40 O O 0.08-2.00 0.04-0.16
CCMT 09T304-F3P 9.70 9.52 3.97 0.40 4.40 O O 0.11-2.00 0.06-0.25
CCMT 09T308-F3P 9.70 9.52 3.97 0.80 4.40 O O 0.15-2.00 0.08-0.32
For tools, see pages: A/E/S-SCLCR/L (B34) • PCLCR/L-S (A93) • PCLCR/L-S-JHP (A93) • SCACR/L-S (A92) • SCLCR/L (A92).


B67
