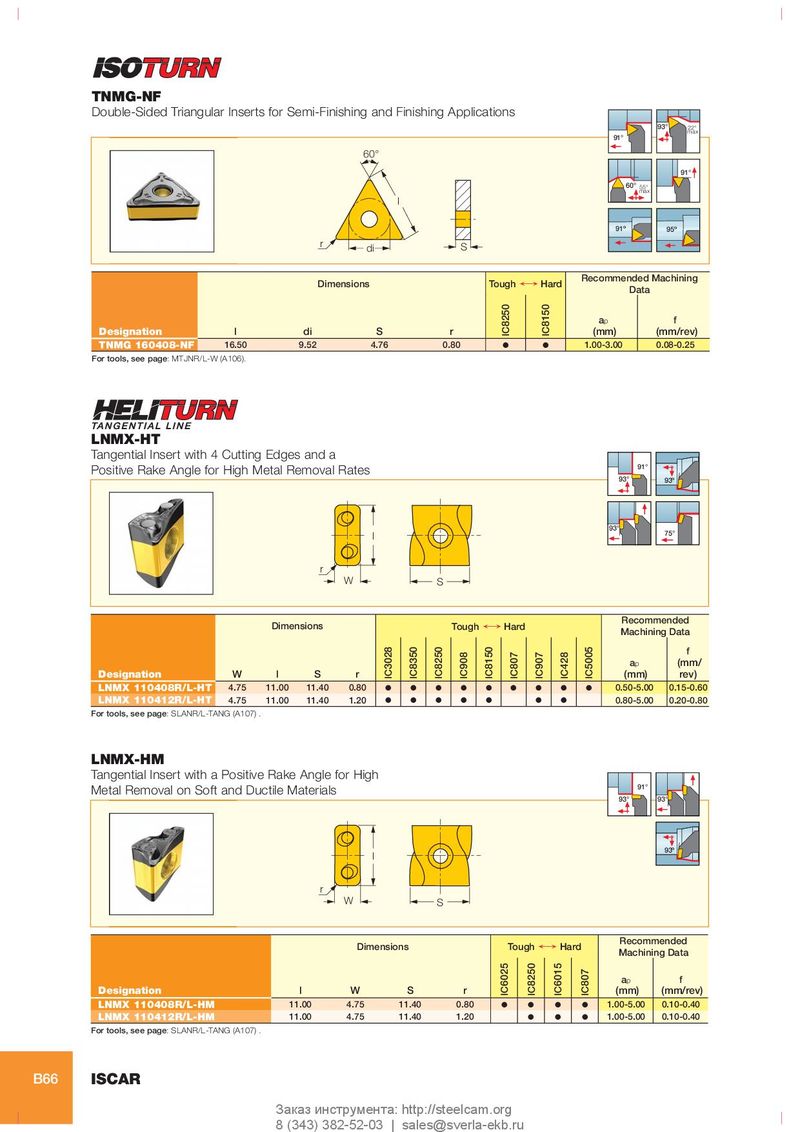

TNMG-NF
Double-Sided Triangular Inserts for Semi-Finishing and Finishing Applications
60°
l
r S di
Dimensions Tough ¥ Hard
| Designation | l | di | S | r | ||
| TNMG 160408-NF | 16.50 | 9.52 | 4.76 | 0.80 | O | O |
For tools, see page: MTJNR/L-W (A106).
93° 22° max 91°
91° 60° 55° max
91º 95º
Recommended Machining Data
ap f (mm) (mm/rev) 1.00-3.00 0.08-0.25
LNMX-HT
Tangential Insert with 4 Cutting Edges and a
Positive Rake Angle for High Metal Removal Rates 91° 93° 93º
93° l 75°
r W S
Recommended Dimensions Tough ¥ Hard Machining Data f ap (mm/
| Designation | W | l | S | r | (mm) | rev) | |||||||||
| LNMX 110408R/L-HT | 4.75 | 11.00 | 11.40 | 0.80 | O | O | O | O | O | O | O | O | O | 0.50-5.00 | 0.15-0.60 |
| LNMX 110412R/L-HT | 4.75 | 11.00 | 11.40 | 1.20 | O | O | O | O | O | O | O | 0.80-5.00 | 0.20-0.80 |
For tools, see page: SLANR/L-TANG (A107) .
LNMX-HM
Tangential Insert with a Positive Rake Angle for High
Metal Removal on Soft and Ductile Materials 91° 93° 93°
93º l
r W S
Recommended Dimensions Tough ¥ Hard Machining Data
ap f
| Designation | l | W | S | r | (mm) | (mm/rev) | ||||
| LNMX 110408R/L-HM | 11.00 | 4.75 | 11.40 | 0.80 | O | O | O | O | 1.00-5.00 | 0.10-0.40 |
| LNMX 110412R/L-HM | 11.00 | 4.75 | 11.40 | 1.20 | O | O | O | 1.00-5.00 | 0.10-0.40 |
For tools, see page: SLANR/L-TANG (A107) .
