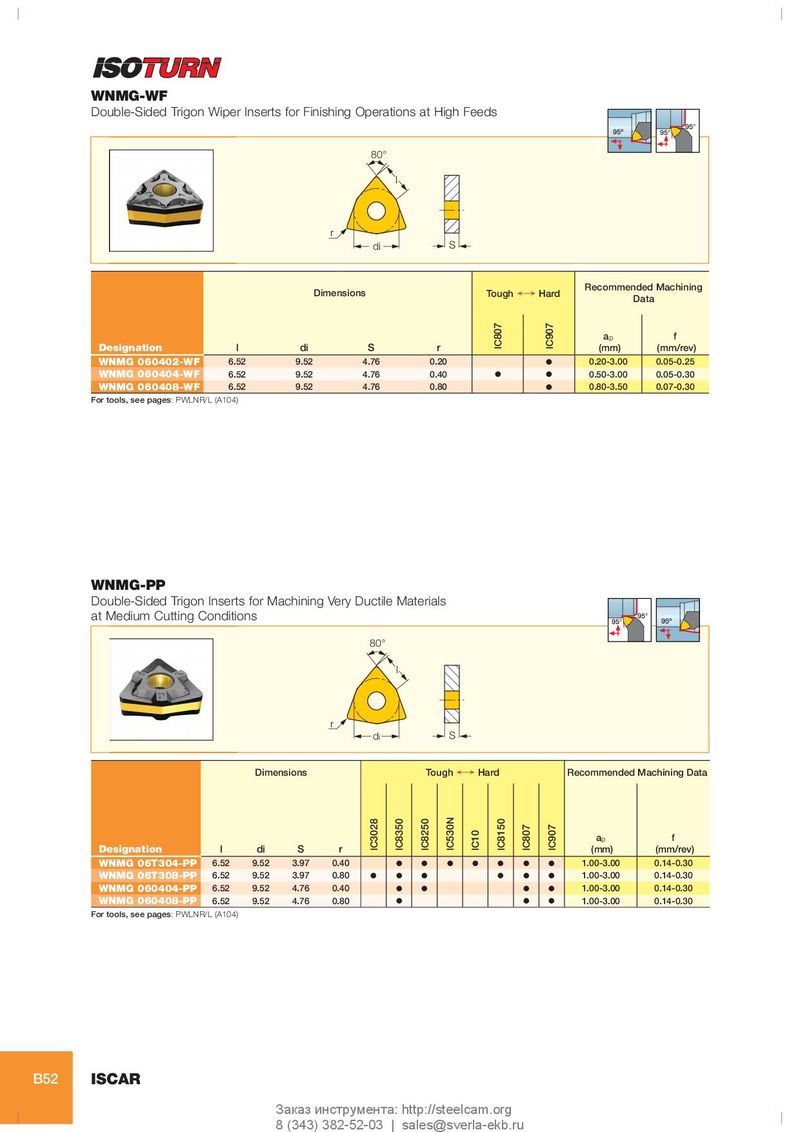

WNMG-WF
Double-Sided Trigon Wiper Inserts for Finishing Operations at High Feeds
95°
95º 95°

80°
l


r
di S

Recommended Machining
Dimensions Tough ¥ Hard
Data


IC807


IC907
ap f
Designation l di S r (mm) (mm/rev)
WNMG 060402-WF 6.52 9.52 4.76 0.20 O 0.20-3.00 0.05-0.25
WNMG 060404-WF 6.52 9.52 4.76 0.40 O O 0.50-3.00 0.05-0.30
WNMG 060408-WF 6.52 9.52 4.76 0.80 O 0.80-3.50 0.07-0.30
For tools, see pages: PWLNR/L (A104)


WNMG-PP
Double-Sided Trigon Inserts for Machining Very Ductile Materials
at Medium Cutting Conditions 95°
95°
95º

80°
l


r
di S

Dimensions Tough ¥ Hard Recommended Machining Data
IC530N
IC3028
IC8350
IC8250


IC8150
IC807
IC907
IC10


ap f
Designation l di S r (mm) (mm/rev)
WNMG 06T304-PP 6.52 9.52 3.97 0.40 O O O O O O O 1.00-3.00 0.14-0.30
WNMG 06T308-PP 6.52 9.52 3.97 0.80 O O O O O O 1.00-3.00 0.14-0.30
WNMG 060404-PP 6.52 9.52 4.76 0.40 O O O O 1.00-3.00 0.14-0.30
WNMG 060408-PP 6.52 9.52 4.76 0.80 O O O 1.00-3.00 0.14-0.30
For tools, see pages: PWLNR/L (A104)


B52 ISCAR
