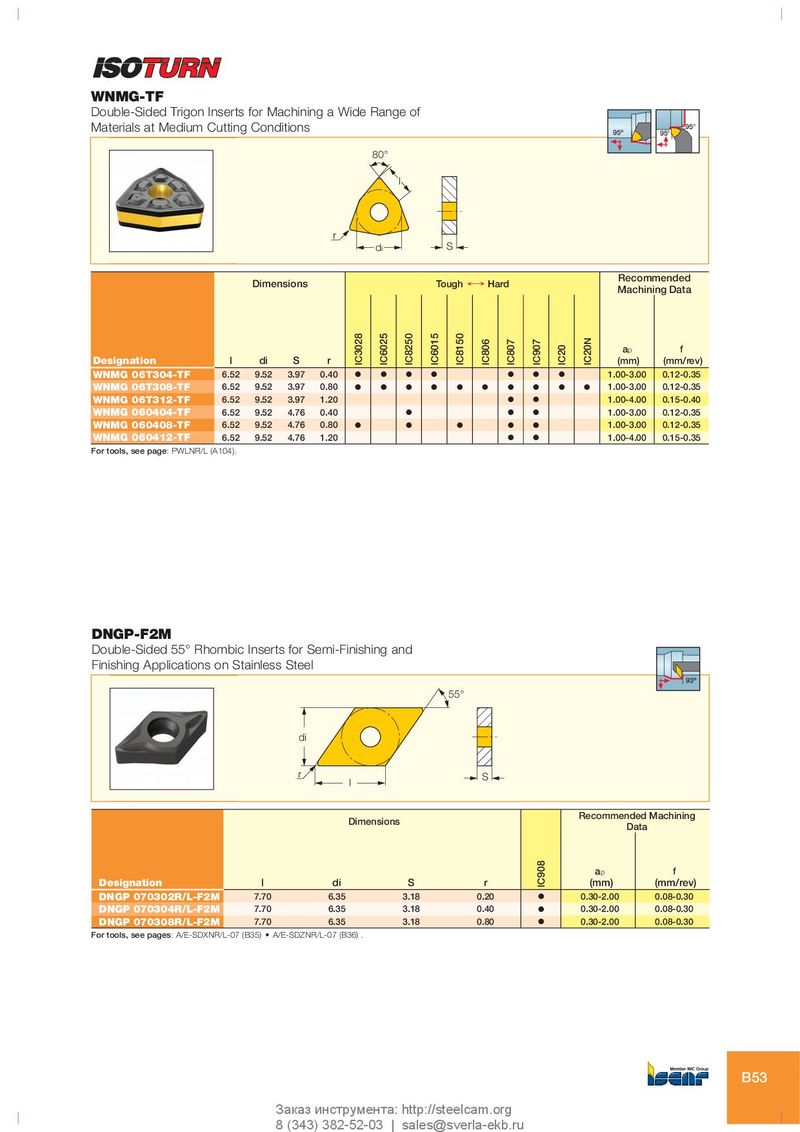

WNMG-TF
Double-Sided Trigon Inserts for Machining a Wide Range of
Materials at Medium Cutting Conditions 95º 95°
95°

80°
l


r
di S

Recommended
Dimensions Tough ¥ Hard
Machining Data


IC3028
IC6025
IC8250
IC6015
IC8150


IC20N
IC806
IC807
IC907
IC20
ap f
Designation l di S r (mm) (mm/rev)
WNMG 06T304-TF 6.52 9.52 3.97 0.40 O O O O O O O 1.00-3.00 0.12-0.35
WNMG 06T308-TF 6.52 9.52 3.97 0.80 O O O O O O O O O O 1.00-3.00 0.12-0.35
WNMG 06T312-TF 6.52 9.52 3.97 1.20 O O 1.00-4.00 0.15-0.40
WNMG 060404-TF 6.52 9.52 4.76 0.40 O O O 1.00-3.00 0.12-0.35
WNMG 060408-TF 6.52 9.52 4.76 0.80 O O O O O 1.00-3.00 0.12-0.35
WNMG 060412-TF 6.52 9.52 4.76 1.20 O O 1.00-4.00 0.15-0.35
For tools, see page: PWLNR/L (A104).


DNGP-F2M
Double-Sided 55° Rhombic Inserts for Semi-Finishing and
Finishing Applications on Stainless Steel
93º
55°

di

r S
l

Recommended Machining
Dimensions
Data
IC908


ap f
Designation l di S r (mm) (mm/rev)
DNGP 070302R/L-F2M 7.70 6.35 3.18 0.20 O 0.30-2.00 0.08-0.30
DNGP 070304R/L-F2M 7.70 6.35 3.18 0.40 O 0.30-2.00 0.08-0.30
DNGP 070308R/L-F2M 7.70 6.35 3.18 0.80 O 0.30-2.00 0.08-0.30
For tools, see pages: A/E-SDXNR/L-07 (B35) • A/E-SDZNR/L-07 (B36) .


B53
