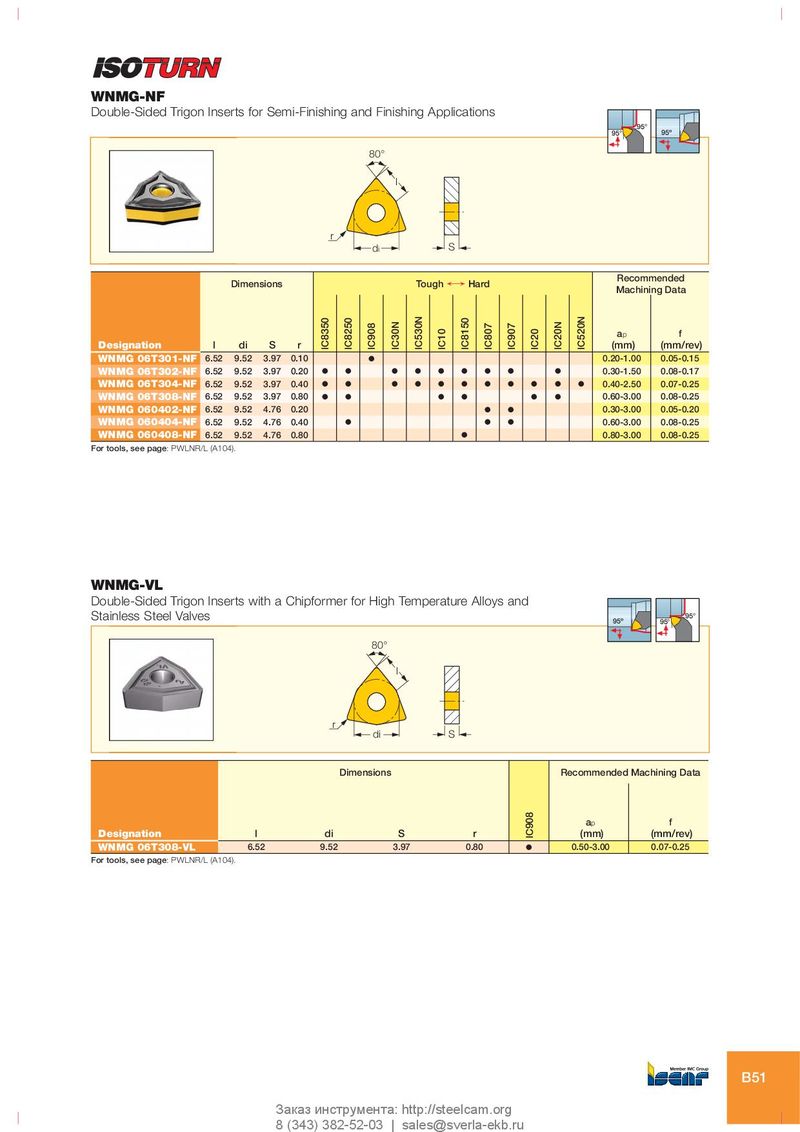

WNMG-NF
Double-Sided Trigon Inserts for Semi-Finishing and Finishing Applications
95°
95° 95º

80°
l


r
di S

Recommended
Dimensions Tough ¥ Hard
Machining Data


IC530N


IC520N
IC8350
IC8250


IC8150
IC30N


IC20N
IC908


IC807
IC907
IC10


IC20
ap f
Designation l di S r (mm) (mm/rev)
WNMG 06T301-NF 6.52 9.52 3.97 0.10 O 0.20-1.00 0.05-0.15
WNMG 06T302-NF 6.52 9.52 3.97 0.20 O O O O O O O O O 0.30-1.50 0.08-0.17
WNMG 06T304-NF 6.52 9.52 3.97 0.40 O O O O O O O O O O O 0.40-2.50 0.07-0.25
WNMG 06T308-NF 6.52 9.52 3.97 0.80 O O O O O O 0.60-3.00 0.08-0.25
WNMG 060402-NF 6.52 9.52 4.76 0.20 O O 0.30-3.00 0.05-0.20
WNMG 060404-NF 6.52 9.52 4.76 0.40 O O O 0.60-3.00 0.08-0.25
WNMG 060408-NF 6.52 9.52 4.76 0.80 O 0.80-3.00 0.08-0.25
For tools, see page: PWLNR/L (A104).


WNMG-VL
Double-Sided Trigon Inserts with a Chipformer for High Temperature Alloys and
Stainless Steel Valves 95º 95°
95°

80°
l


r
di S

Dimensions Recommended Machining Data
IC908


ap f
Designation l di S r (mm) (mm/rev)
WNMG 06T308-VL 6.52 9.52 3.97 0.80 O 0.50-3.00 0.07-0.25
For tools, see page: PWLNR/L (A104).


B51
