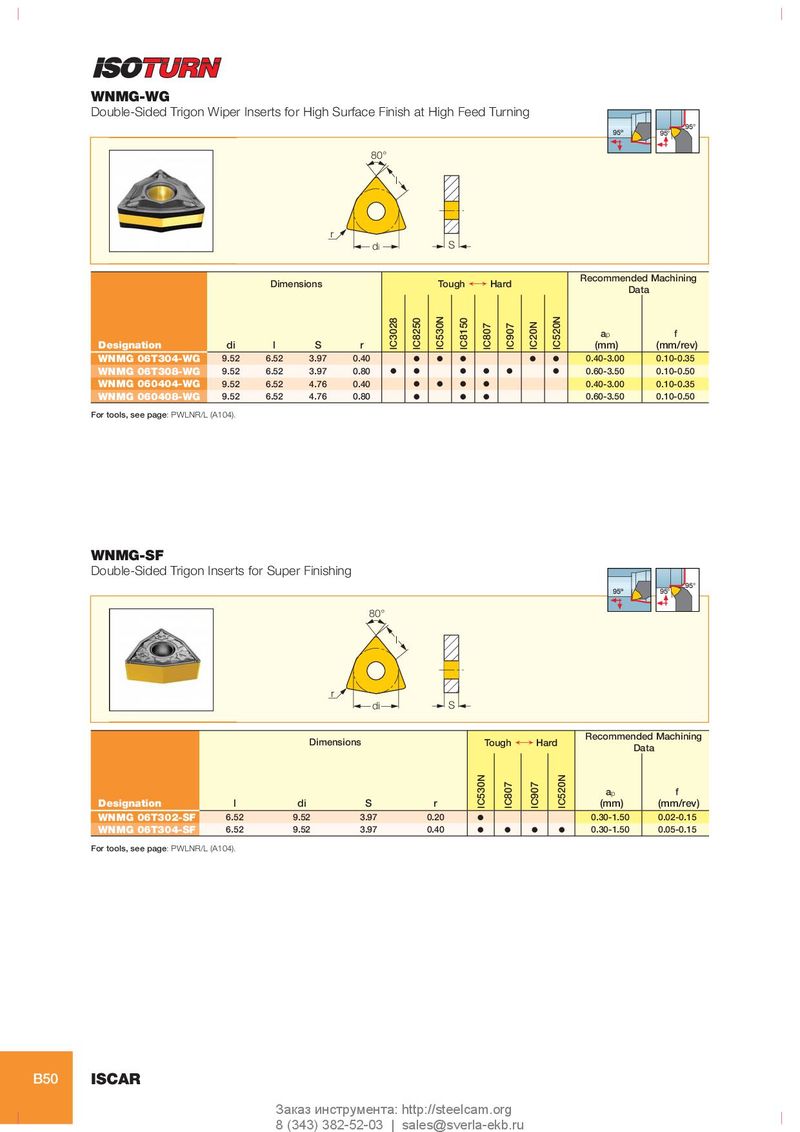

WNMG-WG
Double-Sided Trigon Wiper Inserts for High Surface Finish at High Feed Turning
95°
95º 95°

80°
l


r
di S

Recommended Machining
Dimensions Tough ¥ Hard
Data


IC530N


IC520N
IC3028
IC8250

IC8150


IC20N
IC807
IC907
ap f
Designation di l S r (mm) (mm/rev)
WNMG 06T304-WG 9.52 6.52 3.97 0.40 O O O O O 0.40-3.00 0.10-0.35
WNMG 06T308-WG 9.52 6.52 3.97 0.80 O O O O O O 0.60-3.50 0.10-0.50
WNMG 060404-WG 9.52 6.52 4.76 0.40 O O O O 0.40-3.00 0.10-0.35
WNMG 060408-WG 9.52 6.52 4.76 0.80 O O O 0.60-3.50 0.10-0.50
For tools, see page: PWLNR/L (A104).


WNMG-SF
Double-Sided Trigon Inserts for Super Finishing
95°
95º 95°

80°
l


r
di S

Recommended Machining
Dimensions Tough ¥ Hard
Data
IC530N


IC520N
IC807
IC907


ap f
Designation l di S r (mm) (mm/rev)
WNMG 06T302-SF 6.52 9.52 3.97 0.20 O 0.30-1.50 0.02-0.15
WNMG 06T304-SF 6.52 9.52 3.97 0.40 O O O O 0.30-1.50 0.05-0.15
For tools, see page: PWLNR/L (A104).


B50 ISCAR
