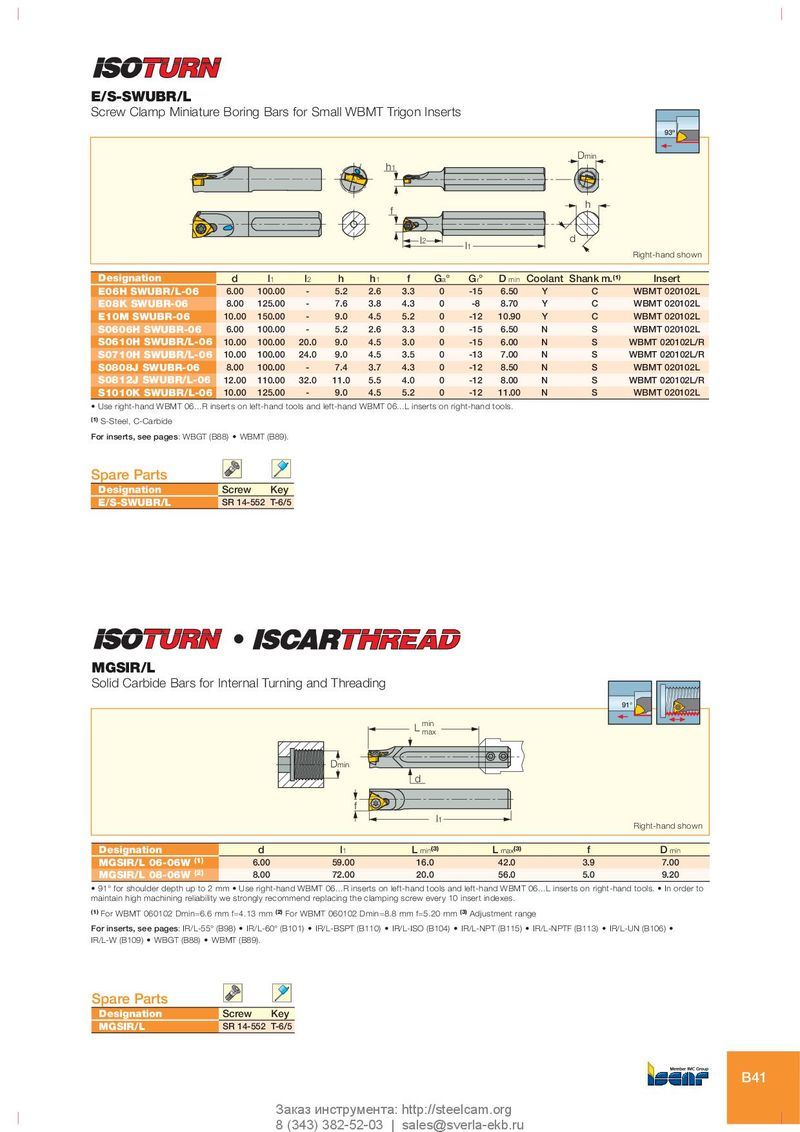

E/S-SWUBR/L
Screw Clamp Miniature Boring Bars for Small WBMT Trigon Inserts
| | | | | | f h1 l2 | | l1 | | d h Dmin | 93º Right-hand shown |
| Designation | d | l1 | l2 | h | h1 | f | Ga° | Gr° | Dmin | Coolant Shank m.( | 1) Insert |
| E06H SWUBR/L-06 | 6.00 | 100.00 | - | 5.2 | 2.6 | 3.3 | 0 | -15 | 6.50 | Y C | WBMT 020102L |
| E08K SWUBR-06 | 8.00 | 125.00 | - | 7.6 | 3.8 | 4.3 | 0 | -8 | 8.70 | Y C | WBMT 020102L |
| E10M SWUBR-06 | 10.00 | 150.00 | - | 9.0 | 4.5 | 5.2 | 0 | -12 | 10.90 | Y C | WBMT 020102L |
| S0606H SWUBR-06 | 6.00 | 100.00 | - | 5.2 | 2.6 | 3.3 | 0 | -15 | 6.50 | N S | WBMT 020102L |
| S0610H SWUBR/L-06 | 10.00 | 100.00 | 20.0 | 9.0 | 4.5 | 3.0 | 0 | -15 | 6.00 | N S | WBMT 020102L/R |
| S0710H SWUBR/L-06 | 10.00 | 100.00 | 24.0 | 9.0 | 4.5 | 3.5 | 0 | -13 | 7.00 | N S | WBMT 020102L/R |
| S0808J SWUBR-06 | 8.00 | 100.00 | - | 7.4 | 3.7 | 4.3 | 0 | -12 | 8.50 | N S | WBMT 020102L |
| S0812J SWUBR/L-06 | 12.00 | 110.00 | 32.0 | 11.0 | 5.5 | 4.0 | 0 | -12 | 8.00 | N S | WBMT 020102L/R |
| S1010K SWUBR/L-06 | 10.00 | 125.00 | - | 9.0 | 4.5 | 5.2 | 0 | -12 | 11.00 | N S | WBMT 020102L |
- Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools.
(1) S-Steel, C-Carbide For inserts, see pages: WBGT (B88) WBMT (B89).
| SpareParts | | |
| Designation | Screw | Key |
| E/S-SWUBR/L | SR 14-552 | T-6/5 |
O
MGSIR/L
Solid Carbide Bars for Internal Turning and Threading
| Dmin f | l1 L min max d | | | 91° Right-hand shown |
| Designation | d l1 | Lmin(3) | Lmax(3) | f | Dmin |
| MGSIR/L 06-06W(1) | 6.00 59.00 | 16.0 | 42.0 | 3.9 | 7.00 |
| MGSIR/L 08-06W(2) | 8.00 72.00 | 20.0 | 56.0 | 5.0 | 9.20 |
- 91° for shoulder depth up to 2 mm
- Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools.
- In order to
maintain high machining reliability we strongly recommend replacing the clamping screw every 10 insert indexes. (1) For WBMT 060102 Dmin=6.6 mm f=4.13 mm (2) For WBMT 060102 Dmin=8.8 mm f=5.20 mm (3) Adjustment range For inserts, see pages: IR/L-55° (B98) IR/L-60° (B101) IR/L-BSPT (B110) IR/L-ISO (B104) IR/L-NPT (B115) IR/L-NPTF (B113) IR/L-UN (B106) IR/L-W (B109) WBGT (B88) WBMT (B89).
Spare Parts
| Designation Screw Key |
| MGSIR/L SR 14-552 T-6/5 |
