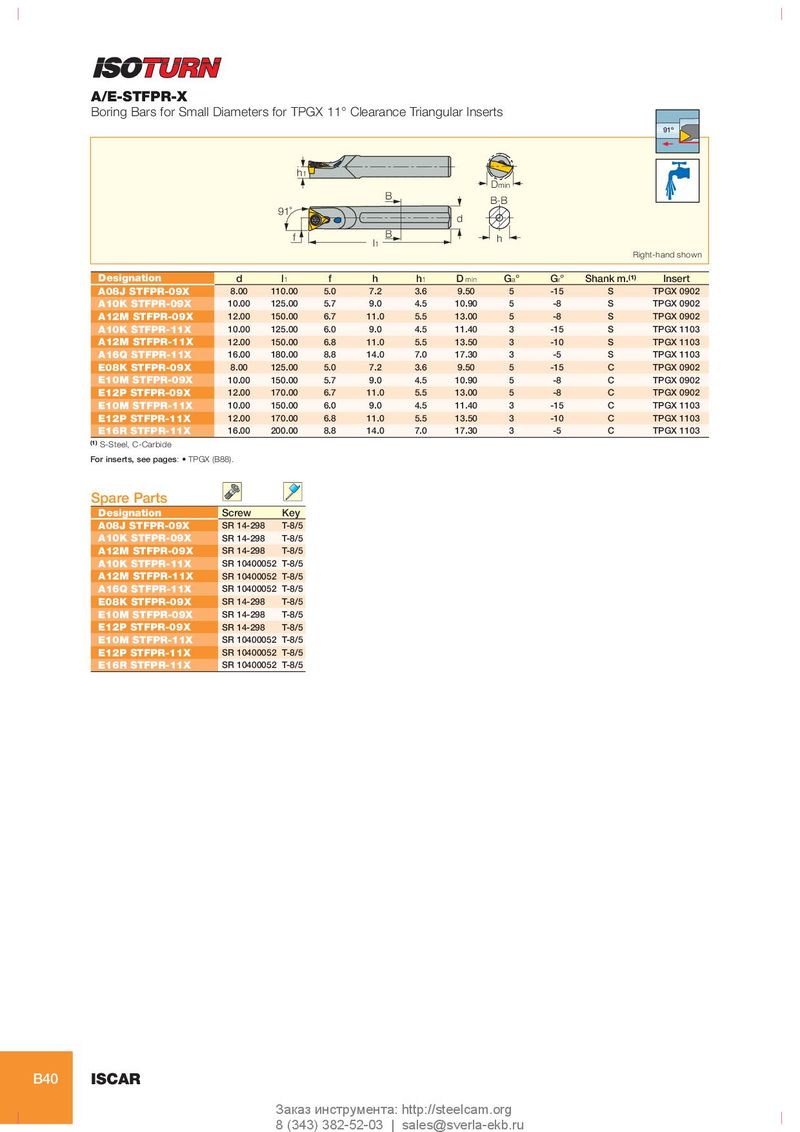

A/E-STFPR-X
Boring Bars for Small Diameters for TPGX 11° Clearance Triangular Inserts
| 91˚ h1 f | l1 B B | d | h Dmin B-B | 91º Right-hand shown | ||||||
| Designation | d | l1 | f | h | h1 | Dmin | Ga° | Gr° | Shank m | .(1) Insert |
| A08J STFPR-09X | 8.00 | 110.00 | 5.0 | 7.2 | 3.6 | 9.50 | 5 | -15 | S | TPGX 0902 |
| A10K STFPR-09X | 10.00 | 125.00 | 5.7 | 9.0 | 4.5 | 10.90 | 5 | -8 | S | TPGX 0902 |
| A12M STFPR-09X | 12.00 | 150.00 | 6.7 | 11.0 | 5.5 | 13.00 | 5 | -8 | S | TPGX 0902 |
| A10K STFPR-11X | 10.00 | 125.00 | 6.0 | 9.0 | 4.5 | 11.40 | 3 | -15 | S | TPGX 1103 |
| A12M STFPR-11X | 12.00 | 150.00 | 6.8 | 11.0 | 5.5 | 13.50 | 3 | -10 | S | TPGX 1103 |
| A16Q STFPR-11X | 16.00 | 180.00 | 8.8 | 14.0 | 7.0 | 17.30 | 3 | -5 | S | TPGX 1103 |
| E08K STFPR-09X | 8.00 | 125.00 | 5.0 | 7.2 | 3.6 | 9.50 | 5 | -15 | C | TPGX 0902 |
| E10M STFPR-09X | 10.00 | 150.00 | 5.7 | 9.0 | 4.5 | 10.90 | 5 | -8 | C | TPGX 0902 |
| E12P STFPR-09X | 12.00 | 170.00 | 6.7 | 11.0 | 5.5 | 13.00 | 5 | -8 | C | TPGX 0902 |
| E10M STFPR-11X | 10.00 | 150.00 | 6.0 | 9.0 | 4.5 | 11.40 | 3 | -15 | C | TPGX 1103 |
| E12P STFPR-11X | 12.00 | 170.00 | 6.8 | 11.0 | 5.5 | 13.50 | 3 | -10 | C | TPGX 1103 |
| E16R STFPR-11X | 16.00 | 200.00 | 8.8 | 14.0 | 7.0 | 17.30 | 3 | -5 | C | TPGX 1103 |
(1) S-Steel, C-Carbide For inserts, see pages: • TPGX (B88).
Spare Parts
| Designation | Screw | Key |
| A08J STFPR-09X | SR 14-298 | T-8/5 |
| A10K STFPR-09X | SR 14-298 | T-8/5 |
| A12M STFPR-09X | SR 14-298 | T-8/5 |
| A10K STFPR-11X | SR 10400052 | T-8/5 |
| A12M STFPR-11X | SR 10400052 | T-8/5 |
| A16Q STFPR-11X | SR 10400052 | T-8/5 |
| E08K STFPR-09X | SR 14-298 | T-8/5 |
| E10M STFPR-09X | SR 14-298 | T-8/5 |
| E12P STFPR-09X | SR 14-298 | T-8/5 |
| E10M STFPR-11X | SR 10400052 | T-8/5 |
| E12P STFPR-11X | SR 10400052 | T-8/5 |
| E16R STFPR-11X | SR 10400052 | T-8/5 |
