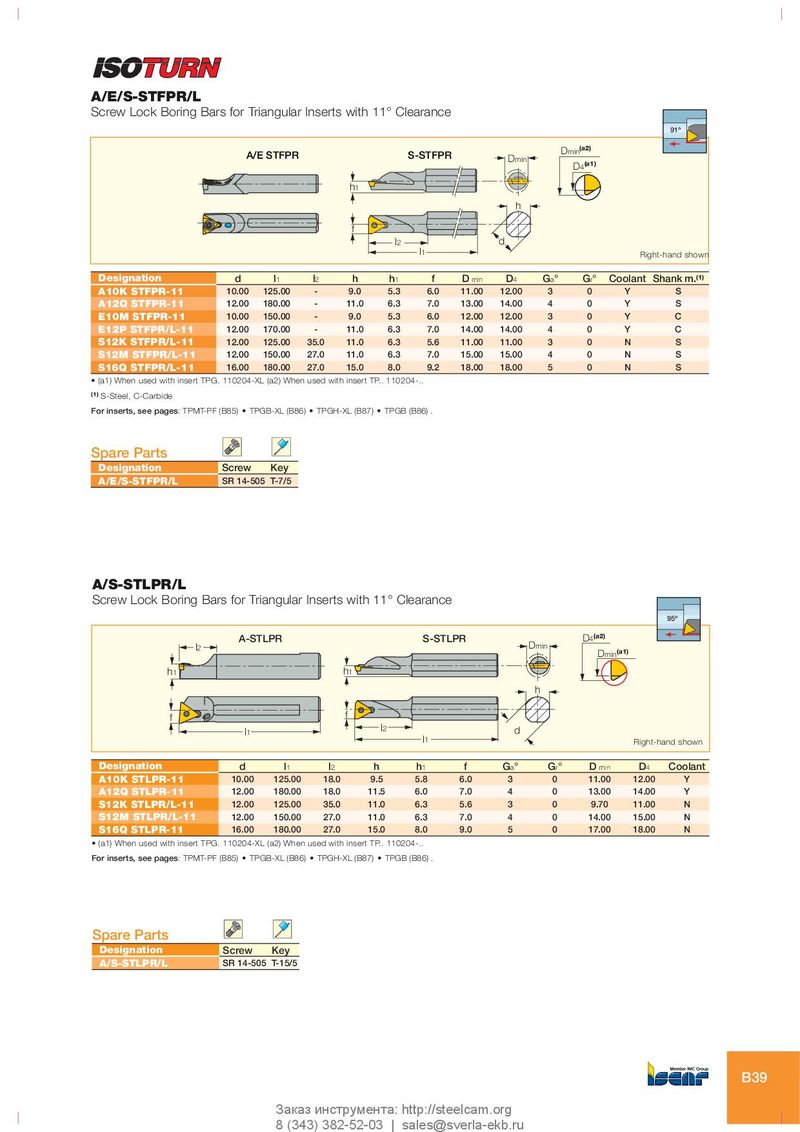

A/E/S-STFPR/L
Screw Lock Boring Bars for Triangular Inserts with 11° Clearance
91º D (a2)
A/E STFPR S-STFPR min
Dmin D (a1) 4 h1
h f l2 d l1 Right-hand shown
| Designation | d | l1 | l2 | h | h1 | f | D min | D4 | Ga° | Gr° | Coolant Shank m.(1) | |
| A10K STFPR-11 | 10.00 | 125.00 | - | 9.0 | 5.3 | 6.0 | 11.00 | 12.00 | 3 | 0 | Y | S |
| A12Q STFPR-11 | 12.00 | 180.00 | - | 11.0 | 6.3 | 7.0 | 13.00 | 14.00 | 4 | 0 | Y | S |
| E10M STFPR-11 | 10.00 | 150.00 | - | 9.0 | 5.3 | 6.0 | 12.00 | 12.00 | 3 | 0 | Y | C |
| E12P STFPR/L-11 | 12.00 | 170.00 | - | 11.0 | 6.3 | 7.0 | 14.00 | 14.00 | 4 | 0 | Y | C |
| S12K STFPR/L-11 | 12.00 | 125.00 | 35.0 | 11.0 | 6.3 | 5.6 | 11.00 | 11.00 | 3 | 0 | N | S |
| S12M STFPR/L-11 | 12.00 | 150.00 | 27.0 | 11.0 | 6.3 | 7.0 | 15.00 | 15.00 | 4 | 0 | N | S |
| S16Q STFPR/L-11 | 16.00 | 180.00 | 27.0 | 15.0 | 8.0 | 9.2 | 18.00 | 18.00 | 5 | 0 | N | S |
- (a1) When used with insert TPG. 110204-XL (a2) When used with insert TP.. 110204-..
(1) S-Steel, C-Carbide For inserts, see pages: TPMT-PF (B85) TPGB-XL (B86) TPGH-XL (B87) TPGB (B86) .
Spare Parts
Designation Screw Key
A/E/S-STFPR/L SR 14-505 T-7/5
A/S-STLPR/L
Screw Lock Boring Bars for Triangular Inserts with 11° Clearance
95º
A-STLPR S-STLPR D4(a2)
l Dmin 2 Dmin(a1) h1 h1
h f f
| l | l2 | d | ||
| 1 | ||||
| l1 | ||||
| Right-hand shown |
| Designation | d | l1 | l2 | h | h1 | f | Ga° | Gr° | D min | D4 | Coolant |
| A10K STLPR-11 | 10.00 | 125.00 | 18.0 | 9.5 | 5.8 | 6.0 | 3 | 0 | 11.00 | 12.00 | Y |
| A12Q STLPR-11 | 12.00 | 180.00 | 18.0 | 11.5 | 6.0 | 7.0 | 4 | 0 | 13.00 | 14.00 | Y |
| S12K STLPR/L-11 | 12.00 | 125.00 | 35.0 | 11.0 | 6.3 | 5.6 | 3 | 0 | 9.70 | 11.00 | N |
| S12M STLPR/L-11 | 12.00 | 150.00 | 27.0 | 11.0 | 6.3 | 7.0 | 4 | 0 | 14.00 | 15.00 | N |
| S16Q STLPR-11 | 16.00 | 180.00 | 27.0 | 15.0 | 8.0 | 9.0 | 5 | 0 | 17.00 | 18.00 | N |
- (a1) When used with insert TPG. 110204-XL (a2) When used with insert TP.. 110204-..
For inserts, see pages: TPMT-PF (B85) TPGB-XL (B86) TPGH-XL (B87) TPGB (B86) .
Spare Parts
Designation Screw Key
A/S-STLPR/L SR 14-505 T-15/5
