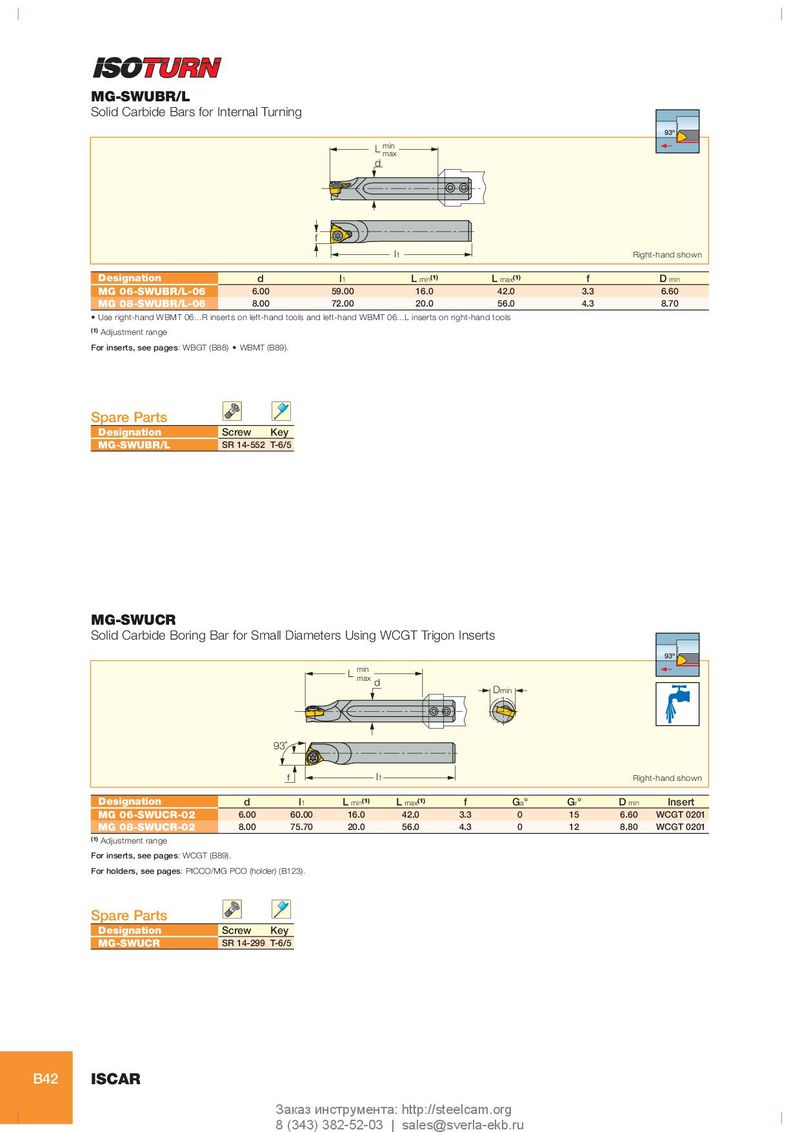

MG-SWUBR/L
Solid Carbide Bars for Internal Turning
93º L min max d
f l1 Right-hand shown
| Designation | d | l1 | L min(1) | L max (1) | f | D min |
| MG 06-SWUBR/L-06 | 6.00 | 59.00 | 16.0 | 42.0 | 3.3 | 6.60 |
| MG 08-SWUBR/L-06 | 8.00 | 72.00 | 20.0 | 56.0 | 4.3 | 8.70 |
- Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools
(1) Adjustment range For inserts, see pages: WBGT (B88) WBMT (B89).
| SpareParts | ||
| Designation | Screw | Key |
| MG-SWUBR/L | SR 14-552 | T-6/5 |
MG-SWUCR
Solid Carbide Boring Bar for Small Diameters Using WCGT Trigon Inserts
93º L min max d Dmin
93˚
f l1 Right-hand shown
| Designation | d | l1 | L min(1) | L max(1) | f | Ga° | Gr° | D min | Insert | |
| MG 06-SWUCR-02 | 6.00 | 60.00 | 16.0 | 42.0 | 3.3 | 0 | 15 | 6.60 | WCGT 0201 | |
| MG 08-SWUCR-02 | 8.00 | 75.70 | 20.0 | 56.0 | 4.3 | 0 | 12 | 8.80 | WCGT 0201 |
(1) Adjustment range For inserts, see pages: WCGT (B89). For holders, see pages: PICCO/MG PCO (holder) (B123).
Spare Parts
Designation Screw Key
MG-SWUCR SR 14-299 T-6/5
