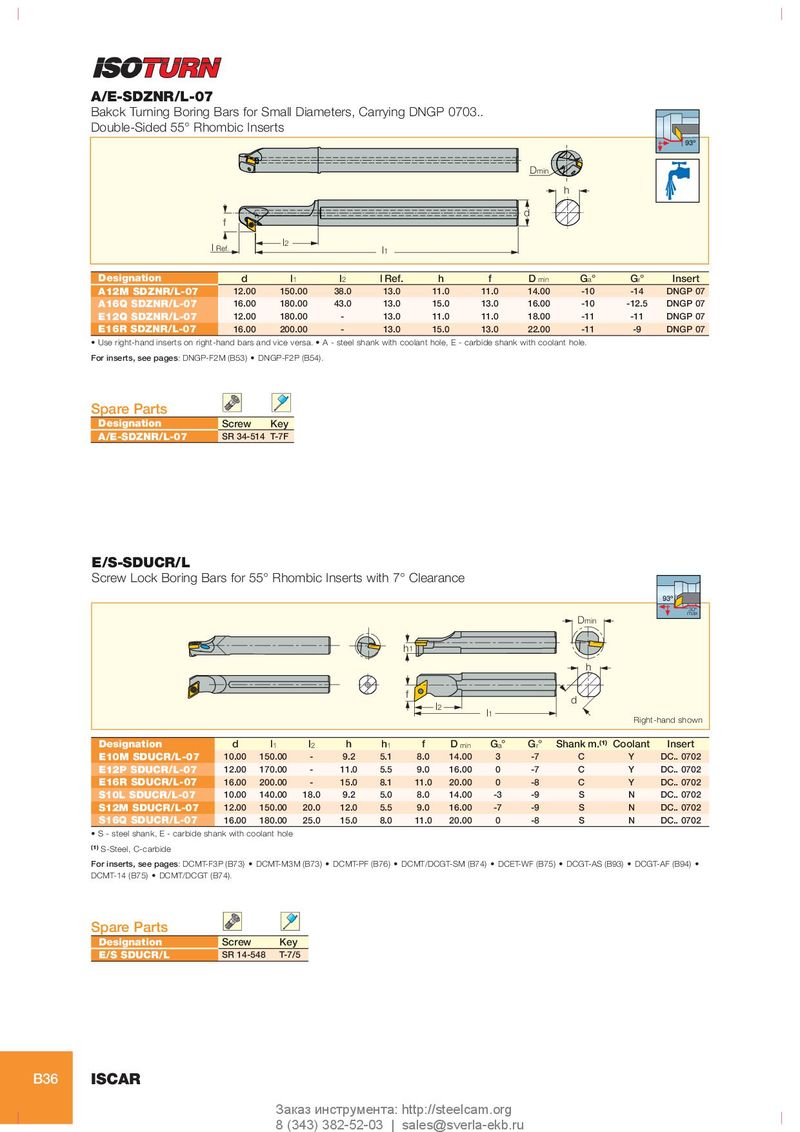

Каталог Iscar инструмент для внутренней обработки - страница 36
Навигация
Каталог Iscar инструментальные блоки
Фрезерные инструменты Iscar 2026
Каталог Iscar обработка канавок 2022
Каталог Iscar инструмент для нарезания резьбы
Токарные инструменты Iscar (часть 2) 2026
A/E-SDZNR/L-07
Bakck Turning Boring Bars for Small Diameters, Carrying DNGP 0703..
Double-Sided 55° Rhombic Inserts
93º
Dmin h d f l2 l Ref. l 1
| Designation | d | l1 | l2 | l Ref. | h | f | D min | Ga° | Gr° | Insert |
| A12M SDZNR/L-07 | 12.00 | 150.00 | 38.0 | 13.0 | 11.0 | 11.0 | 14.00 | -10 | -14 | DNGP 07 |
| A16Q SDZNR/L-07 | 16.00 | 180.00 | 43.0 | 13.0 | 15.0 | 13.0 | 16.00 | -10 | -12.5 | DNGP 07 |
| E12Q SDZNR/L-07 | 12.00 | 180.00 | - | 13.0 | 11.0 | 11.0 | 18.00 | -11 | -11 | DNGP 07 |
| E16R SDZNR/L-07 | 16.00 | 200.00 | - | 13.0 | 15.0 | 13.0 | 22.00 | -11 | -9 | DNGP 07 |
- Use right-hand inserts on right-hand bars and vice versa.
- A - steel shank with coolant hole, E - carbide shank with coolant hole.
For inserts, see pages: DNGP-F2M (B53) DNGP-F2P (B54).
Spare Parts
Designation Screw Key
A/E-SDZNR/L-07 SR 34-514 T-7F
E/S-SDUCR/L
Screw Lock Boring Bars for 55° Rhombic Inserts with 7° Clearance
| l h1 f | 2 | l1 | d Dmin h | Right | 93º 30º max -hand shown | ||||||
| Designation | d | l1 | l2 | h | h1 | f | Dmin | Ga° Gr° | Shank m.(1 | ) Coolant | Insert |
| E10M SDUCR/L-07 | 10.00 | 150.00 | - | 9.2 | 5.1 | 8.0 | 14.00 | 3 -7 | C | Y | DC.. 0702 |
| E12P SDUCR/L-07 | 12.00 | 170.00 | - | 11.0 | 5.5 | 9.0 | 16.00 | 0 -7 | C | Y | DC.. 0702 |
| E16R SDUCR/L-07 | 16.00 | 200.00 | - | 15.0 | 8.1 | 11.0 | 20.00 | 0 -8 | C | Y | DC.. 0702 |
| S10L SDUCR/L-07 | 10.00 | 140.00 | 18.0 | 9.2 | 5.0 | 8.0 | 14.00 | -3 -9 | S | N | DC.. 0702 |
| S12M SDUCR/L-07 | 12.00 | 150.00 | 20.0 | 12.0 | 5.5 | 9.0 | 16.00 | -7 -9 | S | N | DC.. 0702 |
| S16Q SDUCR/L-07 | 16.00 | 180.00 | 25.0 | 15.0 | 8.0 | 11.0 | 20.00 | 0 -8 | S | N | DC.. 0702 |
- S - steel shank, E - carbide shank with coolant hole
(1) S-Steel, C-carbide For inserts, see pages: DCMT-F3P (B73) DCMT-M3M (B73) DCMT-PF (B76) DCMT/DCGT-SM (B74) DCET-WF (B75) DCGT-AS (B93) DCGT-AF (B94) DCMT-14 (B75) DCMT/DCGT (B74).
Spare Parts
| Designation | Screw | Key |
| E/S SDUCR/L | SR 14-548 | T-7/5 |
