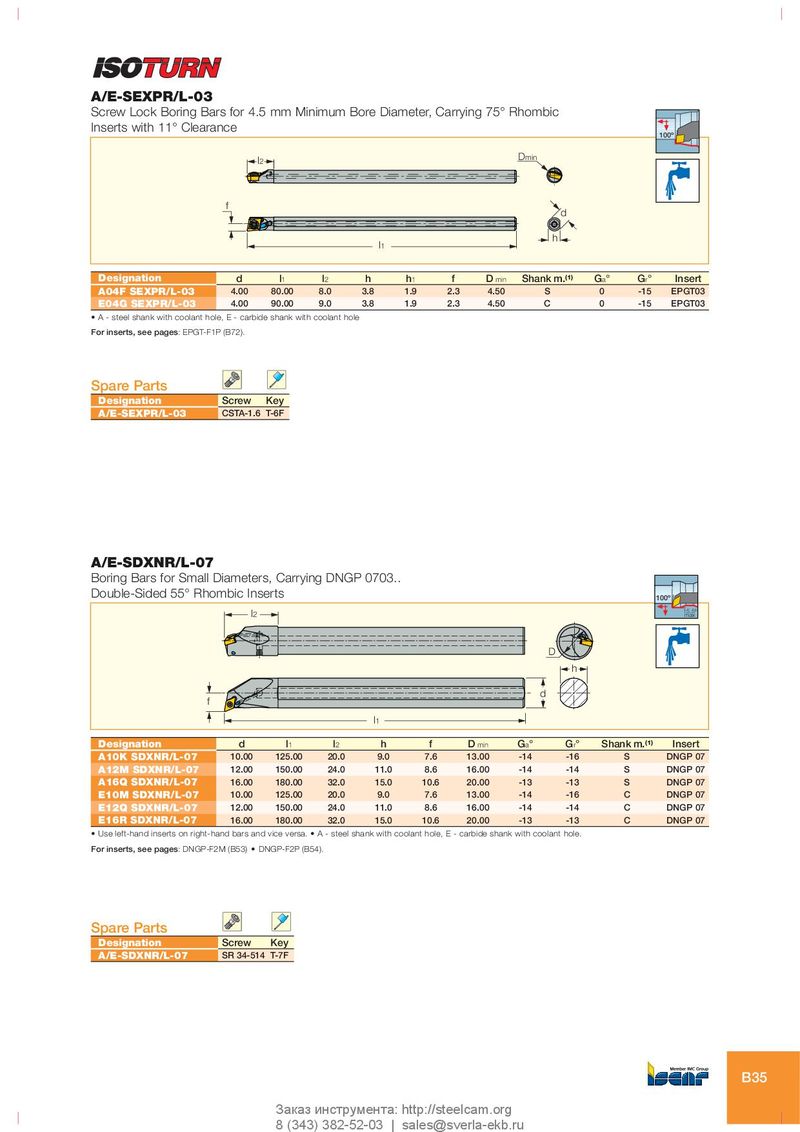

A/E-SEXPR/L-03
Screw Lock Boring Bars for 4.5 mm Minimum Bore Diameter, Carrying 75° Rhombic
Inserts with 11° Clearance
100º l Dmin 2
f d h l1
| Designation | d | l1 | l2 | h | h1 | f | D min | Shank m.(1) | Ga° | Gr° | Insert | |
| A04F SEXPR/L-03 | 4.00 | 80.00 | 8.0 | 3.8 | 1.9 | 2.3 | 4.50 | S | 0 | -15 | EPGT03 | |
| E04G SEXPR/L-03 | 4.00 | 90.00 | 9.0 | 3.8 | 1.9 | 2.3 | 4.50 | C | 0 | -15 | EPGT03 |
- A - steel shank with coolant hole, E - carbide shank with coolant hole
For inserts, see pages: EPGT-F1P (B72).
Spare Parts
Designation Screw Key
A/E-SEXPR/L-03 CSTA-1.6 T-6F
A/E-SDXNR/L-07
Boring Bars for Small Diameters, Carrying DNGP 0703..
| 100º | ||||||||||
| l2 | 15.5º max | |||||||||
| f | l1 | d h D | ||||||||
| Designation | d | l1 | l2 | h | f | Dmin | Ga° | Gr° | Shank m | .(1) Insert |
| A10K SDXNR/L-07 | 10.00 | 125.00 | 20.0 | 9.0 | 7.6 | 13.00 | -14 | -16 | S | DNGP 07 |
| A12M SDXNR/L-07 | 12.00 | 150.00 | 24.0 | 11.0 | 8.6 | 16.00 | -14 | -14 | S | DNGP 07 |
| A16Q SDXNR/L-07 | 16.00 | 180.00 | 32.0 | 15.0 | 10.6 | 20.00 | -13 | -13 | S | DNGP 07 |
| E10M SDXNR/L-07 | 10.00 | 125.00 | 20.0 | 9.0 | 7.6 | 13.00 | -14 | -16 | C | DNGP 07 |
| E12Q SDXNR/L-07 | 12.00 | 150.00 | 24.0 | 11.0 | 8.6 | 16.00 | -14 | -14 | C | DNGP 07 |
| E16R SDXNR/L-07 | 16.00 | 180.00 | 32.0 | 15.0 | 10.6 | 20.00 | -13 | -13 | C | DNGP 07 |
- Use left-hand inserts on right-hand bars and vice versa.
- A - steel shank with coolant hole, E - carbide shank with coolant hole.
For inserts, see pages: DNGP-F2M (B53) DNGP-F2P (B54).
Spare Parts
Designation Screw Key
A/E-SDXNR/L-07 SR 34-514 T-7F
