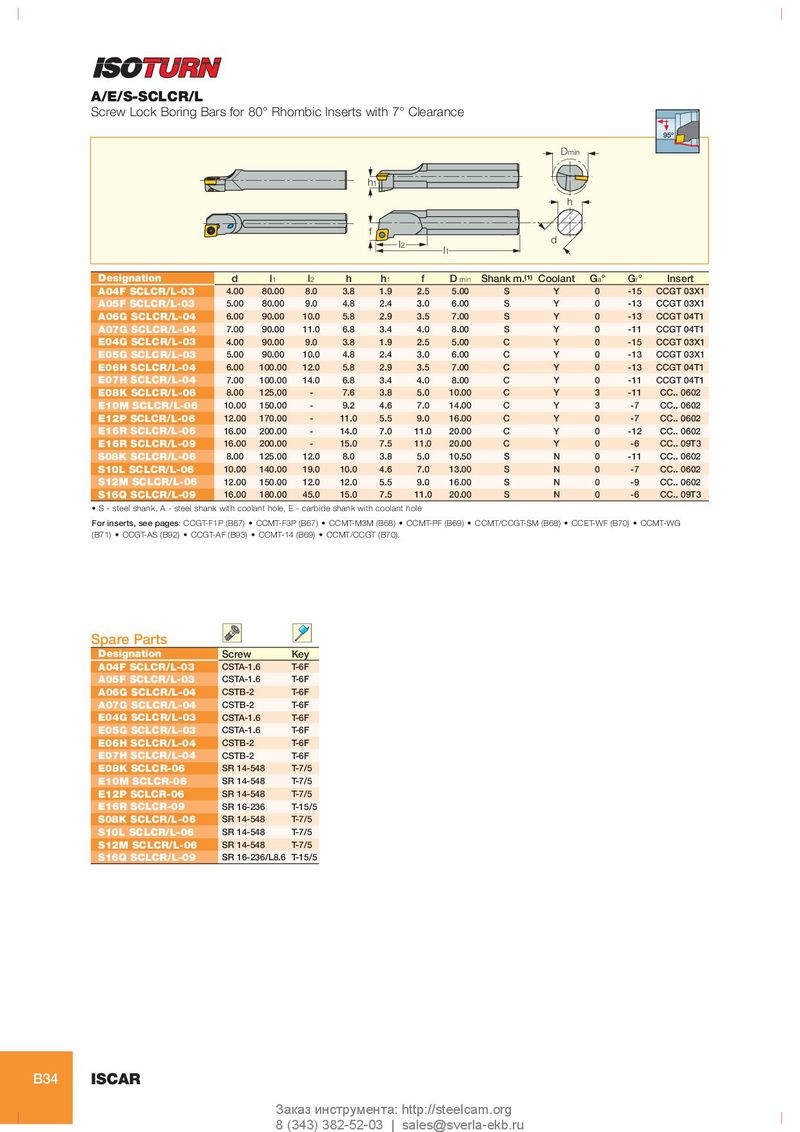

A/E/S-SCLCR/L
Screw Lock Boring Bars for 80° Rhombic Inserts with 7° Clearance
95º Dmin
h1 h
f d l2 l1
| Designation | d | l1 | l2 | h | h1 | f | D min | Shank m.(1) | Coolant | Ga° | Gr° | Insert |
| A04F SCLCR/L-03 | 4.00 | 80.00 | 8.0 | 3.8 | 1.9 | 2.5 | 5.00 | S | Y | 0 | -15 | CCGT 03X1 |
| A05F SCLCR/L-03 | 5.00 | 80.00 | 9.0 | 4.8 | 2.4 | 3.0 | 6.00 | S | Y | 0 | -13 | CCGT 03X1 |
| A06G SCLCR/L-04 | 6.00 | 90.00 | 10.0 | 5.8 | 2.9 | 3.5 | 7.00 | S | Y | 0 | -13 | CCGT 04T1 |
| A07G SCLCR/L-04 | 7.00 | 90.00 | 11.0 | 6.8 | 3.4 | 4.0 | 8.00 | S | Y | 0 | -11 | CCGT 04T1 |
| E04G SCLCR/L-03 | 4.00 | 90.00 | 9.0 | 3.8 | 1.9 | 2.5 | 5.00 | C | Y | 0 | -15 | CCGT 03X1 |
| E05G SCLCR/L-03 | 5.00 | 90.00 | 10.0 | 4.8 | 2.4 | 3.0 | 6.00 | C | Y | 0 | -13 | CCGT 03X1 |
| E06H SCLCR/L-04 | 6.00 | 100.00 | 12.0 | 5.8 | 2.9 | 3.5 | 7.00 | C | Y | 0 | -13 | CCGT 04T1 |
| E07H SCLCR/L-04 | 7.00 | 100.00 | 14.0 | 6.8 | 3.4 | 4.0 | 8.00 | C | Y | 0 | -11 | CCGT 04T1 |
| E08K SCLCR/L-06 | 8.00 | 125.00 | - | 7.6 | 3.8 | 5.0 | 10.00 | C | Y | 3 | -11 | CC.. 0602 |
| E10M SCLCR/L-06 | 10.00 | 150.00 | - | 9.2 | 4.6 | 7.0 | 14.00 | C | Y | 3 | -7 | CC.. 0602 |
| E12P SCLCR/L-06 | 12.00 | 170.00 | - | 11.0 | 5.5 | 9.0 | 16.00 | C | Y | 0 | -7 | CC.. 0602 |
| E16R SCLCR/L-06 | 16.00 | 200.00 | - | 14.0 | 7.0 | 11.0 | 20.00 | C | Y | 0 | -12 | CC.. 0602 |
| E16R SCLCR/L-09 | 16.00 | 200.00 | - | 15.0 | 7.5 | 11.0 | 20.00 | C | Y | 0 | -6 | CC.. 09T3 |
| S08K SCLCR/L-06 | 8.00 | 125.00 | 12.0 | 8.0 | 3.8 | 5.0 | 10.50 | S | N | 0 | -11 | CC.. 0602 |
| S10L SCLCR/L-06 | 10.00 | 140.00 | 19.0 | 10.0 | 4.6 | 7.0 | 13.00 | S | N | 0 | -7 | CC.. 0602 |
| S12M SCLCR/L-06 | 12.00 | 150.00 | 12.0 | 12.0 | 5.5 | 9.0 | 16.00 | S | N | 0 | -9 | CC.. 0602 |
| S16Q SCLCR/L-09 | 16.00 | 180.00 | 45.0 | 15.0 | 7.5 | 11.0 | 20.00 | S | N | 0 | -6 | CC.. 09T3 |
- S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole
For inserts, see pages: CCGT-F1P (B67) CCMT-F3P (B67) CCMT-M3M (B68) CCMT-PF (B69) CCMT/CCGT-SM (B68) CCET-WF (B70) CCMT-WG (B71) CCGT-AS (B92) CCGT-AF (B93) CCMT-14 (B69) CCMT/CCGT (B70).
| SpareParts | ||
| Designation | Screw | Key |
| A04F SCLCR/L-03 | CSTA-1.6 | T-6F |
| A05F SCLCR/L-03 | CSTA-1.6 | T-6F |
| A06G SCLCR/L-04 | CSTB-2 | T-6F |
| A07G SCLCR/L-04 | CSTB-2 | T-6F |
| E04G SCLCR/L-03 | CSTA-1.6 | T-6F |
| E05G SCLCR/L-03 | CSTA-1.6 | T-6F |
| E06H SCLCR/L-04 | CSTB-2 | T-6F |
| E07H SCLCR/L-04 | CSTB-2 | T-6F |
| E08K SCLCR-06 | SR 14-548 | T-7/5 |
| E10M SCLCR-06 | SR 14-548 | T-7/5 |
| E12P SCLCR-06 | SR 14-548 | T-7/5 |
| E16R SCLCR-09 | SR 16-236 | T-15/5 |
| S08K SCLCR/L-06 | SR 14-548 | T-7/5 |
| S10L SCLCR/L-06 | SR 14-548 | T-7/5 |
| S12M SCLCR/L-06 | SR 14-548 | T-7/5 |
| S16Q SCLCR/L-09 | SR 16-236/L8.6 | T-15/5 |
