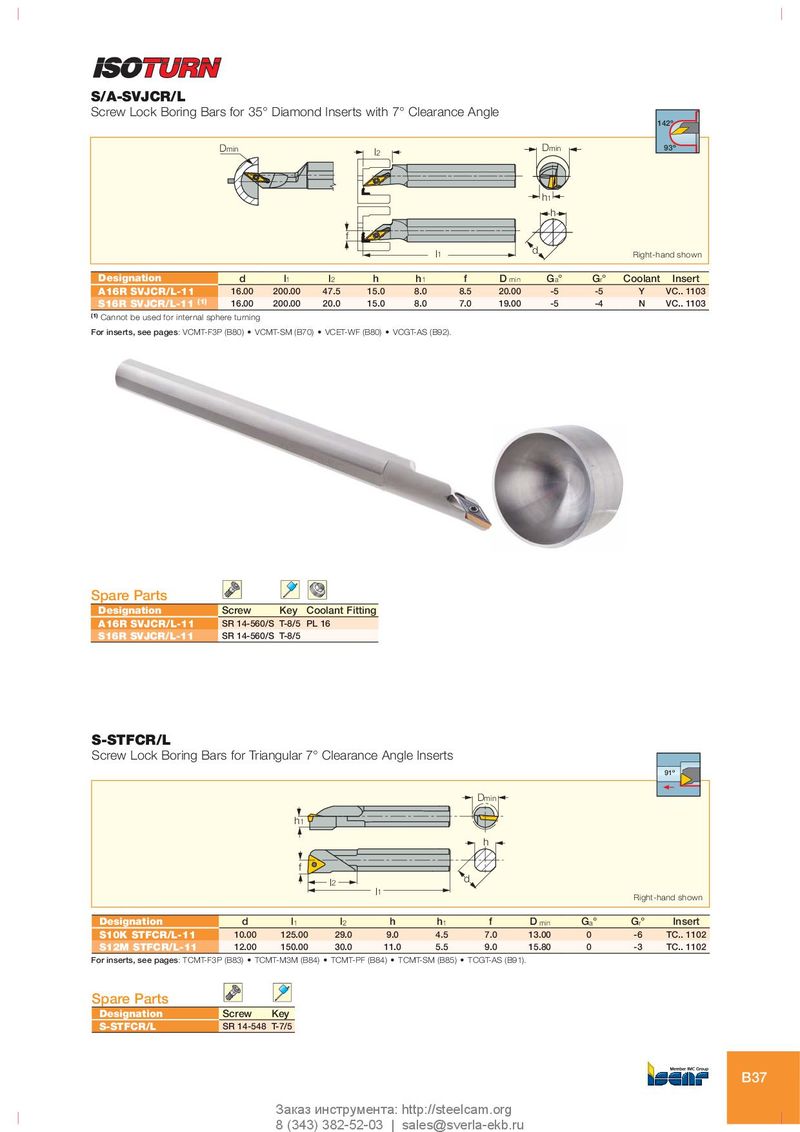

S/A-SVJCR/L
Screw Lock Boring Bars for 35° Diamond Inserts with 7° Clearance Angle
142º
Dmin l Dmin 93º
2
h1 h f l d 1 Right-hand shown
| Designation | d | l1 | l2 | h | h1 | f | D min | Ga° | Gr° | Coolant | Insert | |
| A16R SVJCR/L-11 | 16.00 | 200.00 | 47.5 | 15.0 | 8.0 | 8.5 | 20.00 | -5 | -5 | Y | VC.. 1103 | |
| S16R SVJCR/L-11 (1) | 16.00 | 200.00 | 20.0 | 15.0 | 8.0 | 7.0 | 19.00 | -5 | -4 | N | VC.. 1103 |
(1) Cannot be used for internal sphere turning For inserts, see pages: VCMT-F3P (B80) • VCMT-SM (B70) • VCET-WF (B80) • VCGT-AS (B92).
Spare Parts
Designation Screw Key Coolant Fitting
A16R SVJCR/L-11 SR 14-560/S T-8/5 PL 16 S16R SVJCR/L-11 SR 14-560/S T-8/5
S-STFCR/L
Screw Lock Boring Bars for Triangular 7° Clearance Angle Inserts
91º Dmin h1 h f l d 2 l1 Right-hand shown
| Designation | d | l1 | l2 | h | h1 | f | D min | Ga° | Gr° | Insert |
| S10K STFCR/L-11 | 10.00 | 125.00 | 29.0 | 9.0 | 4.5 | 7.0 | 13.00 | 0 | -6 | TC.. 1102 |
| S12M STFCR/L-11 | 12.00 | 150.00 | 30.0 | 11.0 | 5.5 | 9.0 | 15.80 | 0 | -3 | TC.. 1102 |
For inserts, see pages: TCMT-F3P (B83) • TCMT-M3M (B84) • TCMT-PF (B84) • TCMT-SM (B85) • TCGT-AS (B91).
Spare Parts
Designation Screw Key
S-STFCR/L SR 14-548 T-7/5
