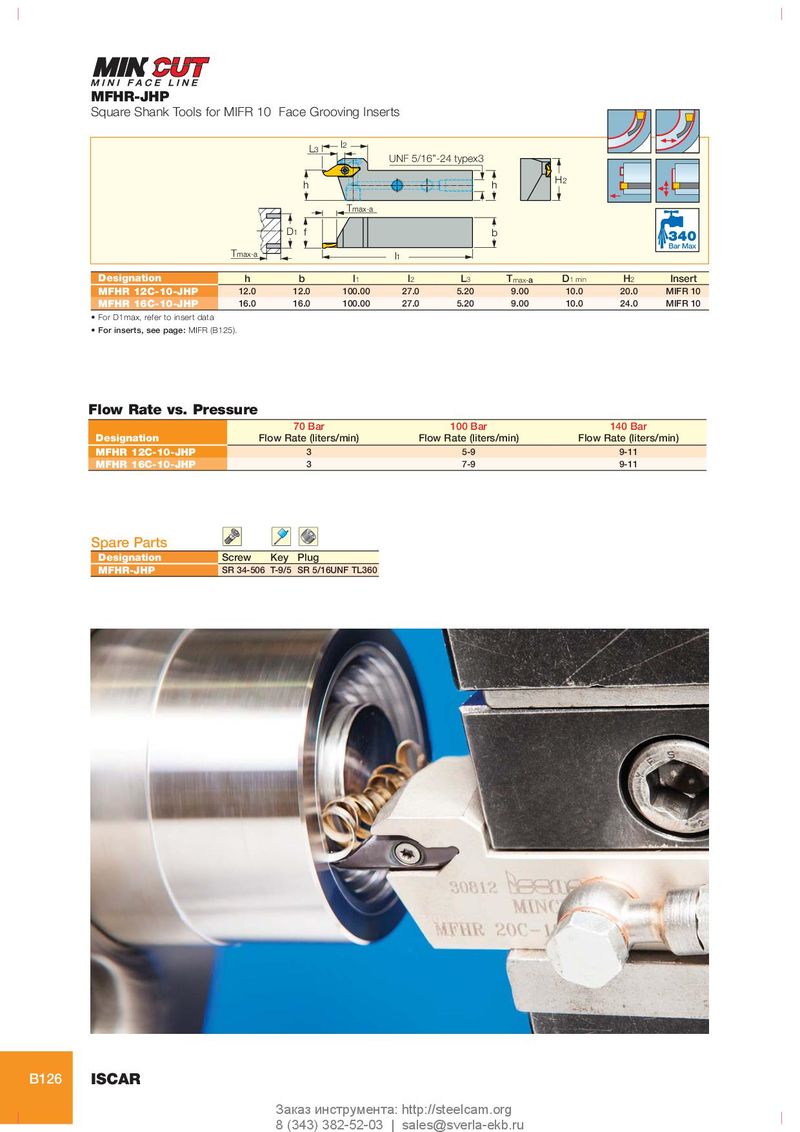

MFHR-JHP
Square Shank Tools for MIFR 10 Face Grooving Inserts
l2 L3 UNF 5/16”-24 typex3 H 2 h h Tmax-a D1 f b Bar Max Tmax-a l 1
| Designation | h | b | l1 | l2 | L3 | Tmax-a | D1 min | H 2 | Insert |
| MFHR 12C-10-JHP | 12.0 | 12.0 | 100.00 | 27.0 | 5.20 | 9.00 | 10.0 | 20.0 | MIFR 10 |
| MFHR 16C-10-JHP | 16.0 | 16.0 | 100.00 | 27.0 | 5.20 | 9.00 | 10.0 | 24.0 | MIFR 10 |
- For D1max, refer to insert data
- For inserts, see page: MIFR (B125).
Flow Rate vs. Pressure
| 70 Bar | 100 Bar | 140 Bar |
| Designation | Flow Rate(liters/min) | Flow Rate(liters/min) | Flow Rate(liters/min) |
| MFHR 12C-10-JHP | 3 | 5-9 | 9-11 |
| MFHR 16C-10-JHP | 3 | 7-9 | 9-11 |
| SpareParts | | | |
| Designation | Screw | Key | Plug |
| MFHR-JHP | SR 34-506 | T-9/5 | SR 5/16UNF TL360 |
