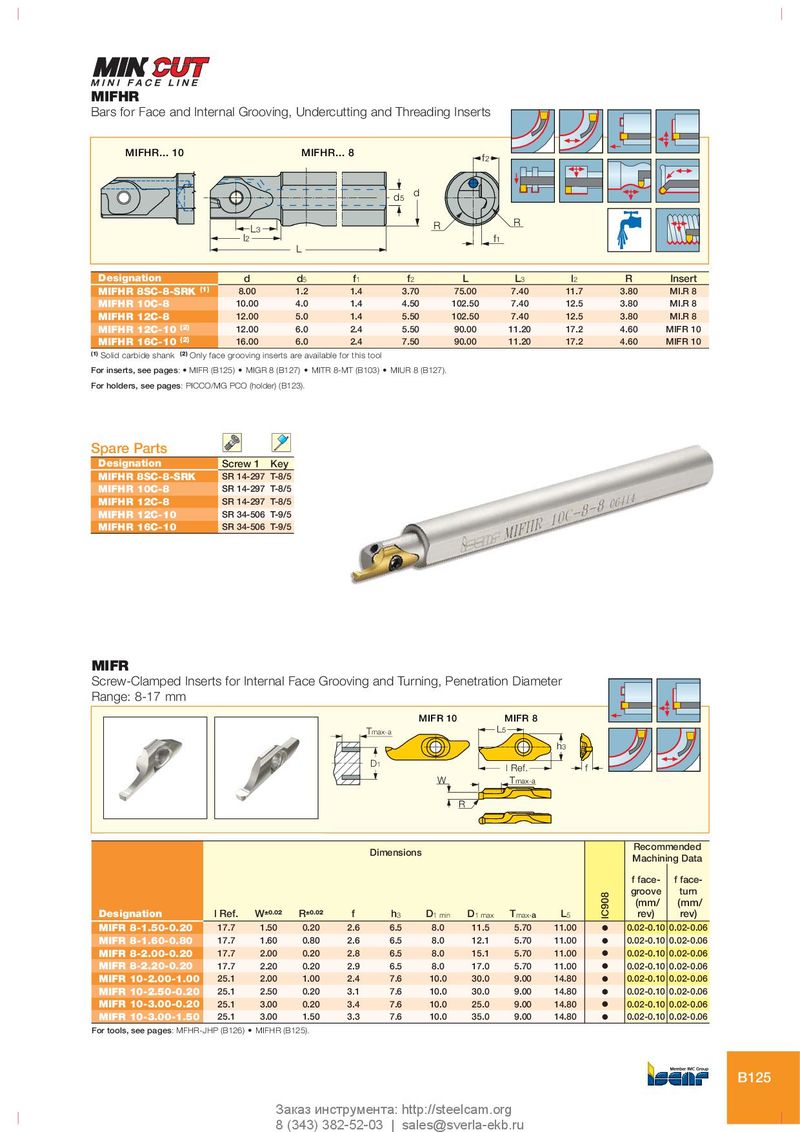

MIFHR
Bars for Face and Internal Grooving, Undercutting and Threading Inserts
MIFHR... 10 MIFHR... 8
f2
d5 d
R R
L3
l2 f1
L
Designation d d5 f1 f2 L L3 l2 R Insert
MIFHR 8SC-8-SRK (1) 8.00 1.2 1.4 3.70 75.00 7.40 11.7 3.80 MI.R 8
MIFHR 10C-8 10.00 4.0 1.4 4.50 102.50 7.40 12.5 3.80 MI.R 8
MIFHR 12C-8 12.00 5.0 1.4 5.50 102.50 7.40 12.5 3.80 MI.R 8
MIFHR 12C-10 (2) 12.00 6.0 2.4 5.50 90.00 11.20 17.2 4.60 MIFR 10
MIFHR 16C-10 (2) 16.00 6.0 2.4 7.50 90.00 11.20 17.2 4.60 MIFR 10
(1) Solid carbide shank (2) Only face grooving inserts are available for this tool
For inserts, see pages: • MIFR (B125) • MIGR 8 (B127) • MITR 8-MT (B103) • MIUR 8 (B127).
For holders, see pages: PICCO/MG PCO (holder) (B123).
Spare Parts
Designation Screw 1 Key
MIFHR 8SC-8-SRK SR 14-297 T-8/5
MIFHR 10C-8 SR 14-297 T-8/5
MIFHR 12C-8 SR 14-297 T-8/5
MIFHR 12C-10 SR 34-506 T-9/5
MIFHR 16C-10 SR 34-506 T-9/5
MIFR
Screw-Clamped Inserts for Internal Face Grooving and Turning, Penetration Diameter
Range: 8-17 mm
MIFR 10 MIFR 8
Tmax-a L5
h3
D1 l Ref. f
W T max-a
R
Recommended
Dimensions
Machining Data
f face- f face-
groove turn
IC908
(mm/ (mm/
Designation l Ref. W±0.02 R±0.02 f h3 D1 min D1 max Tmax-a L5 rev) rev)
MIFR 8-1.50-0.20 17.7 1.50 0.20 2.6 6.5 8.0 11.5 5.70 11.00 O 0.02-0.10 0.02-0.06
MIFR 8-1.60-0.80 17.7 1.60 0.80 2.6 6.5 8.0 12.1 5.70 11.00 O 0.02-0.10 0.02-0.06
MIFR 8-2.00-0.20 17.7 2.00 0.20 2.8 6.5 8.0 15.1 5.70 11.00 O 0.02-0.10 0.02-0.06
MIFR 8-2.20-0.20 17.7 2.20 0.20 2.9 6.5 8.0 17.0 5.70 11.00 O 0.02-0.10 0.02-0.06
MIFR 10-2.00-1.00 25.1 2.00 1.00 2.4 7.6 10.0 30.0 9.00 14.80 O 0.02-0.10 0.02-0.06
MIFR 10-2.50-0.20 25.1 2.50 0.20 3.1 7.6 10.0 30.0 9.00 14.80 O 0.02-0.10 0.02-0.06
MIFR 10-3.00-0.20 25.1 3.00 0.20 3.4 7.6 10.0 25.0 9.00 14.80 O 0.02-0.10 0.02-0.06
MIFR 10-3.00-1.50 25.1 3.00 1.50 3.3 7.6 10.0 35.0 9.00 14.80 O 0.02-0.10 0.02-0.06
For tools, see pages: MFHR-JHP (B126) • MIFHR (B125).
