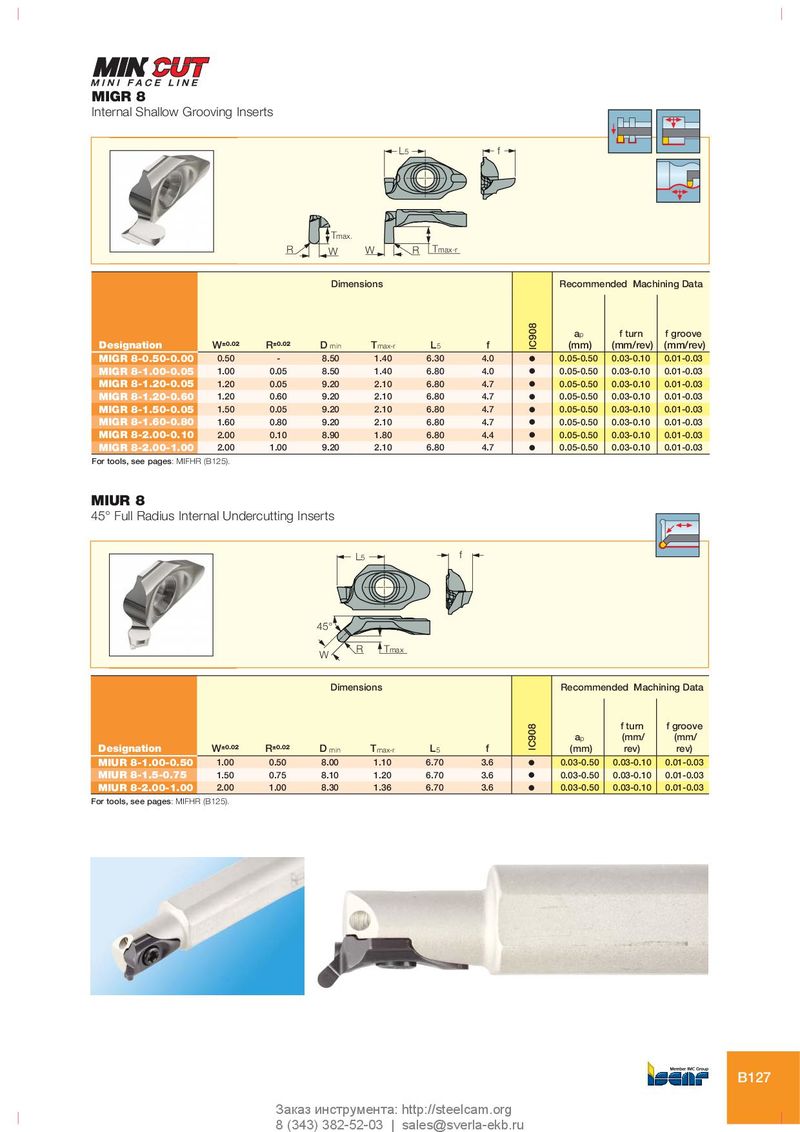

MIGR 8
Internal Shallow Grooving Inserts
L5 f


Tmax.
R W W R Tmax-r

Dimensions Recommended Machining Data


IC908
ap f turn f groove
Designation W±0.02 R±0.02 D min Tmax-r L5 f (mm) (mm/rev) (mm/rev)
MIGR 8-0.50-0.00 0.50 - 8.50 1.40 6.30 4.0 O 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-1.00-0.05 1.00 0.05 8.50 1.40 6.80 4.0 O 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-1.20-0.05 1.20 0.05 9.20 2.10 6.80 4.7 O 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-1.20-0.60 1.20 0.60 9.20 2.10 6.80 4.7 O 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-1.50-0.05 1.50 0.05 9.20 2.10 6.80 4.7 O 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-1.60-0.80 1.60 0.80 9.20 2.10 6.80 4.7 O 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-2.00-0.10 2.00 0.10 8.90 1.80 6.80 4.4 O 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-2.00-1.00 2.00 1.00 9.20 2.10 6.80 4.7 O 0.05-0.50 0.03-0.10 0.01-0.03
For tools, see pages: MIFHR (B125).

MIUR 8
45° Full Radius Internal Undercutting Inserts

L5 f


45°
R Tmax
W

Dimensions Recommended Machining Data

f turn f groove
IC908


ap (mm/ (mm/
Designation W±0.02 R±0.02 D min Tmax-r L5 f (mm) rev) rev)
MIUR 8-1.00-0.50 1.00 0.50 8.00 1.10 6.70 3.6 O 0.03-0.50 0.03-0.10 0.01-0.03
MIUR 8-1.5-0.75 1.50 0.75 8.10 1.20 6.70 3.6 O 0.03-0.50 0.03-0.10 0.01-0.03
MIUR 8-2.00-1.00 2.00 1.00 8.30 1.36 6.70 3.6 O 0.03-0.50 0.03-0.10 0.01-0.03
For tools, see pages: MIFHR (B125).


B127
