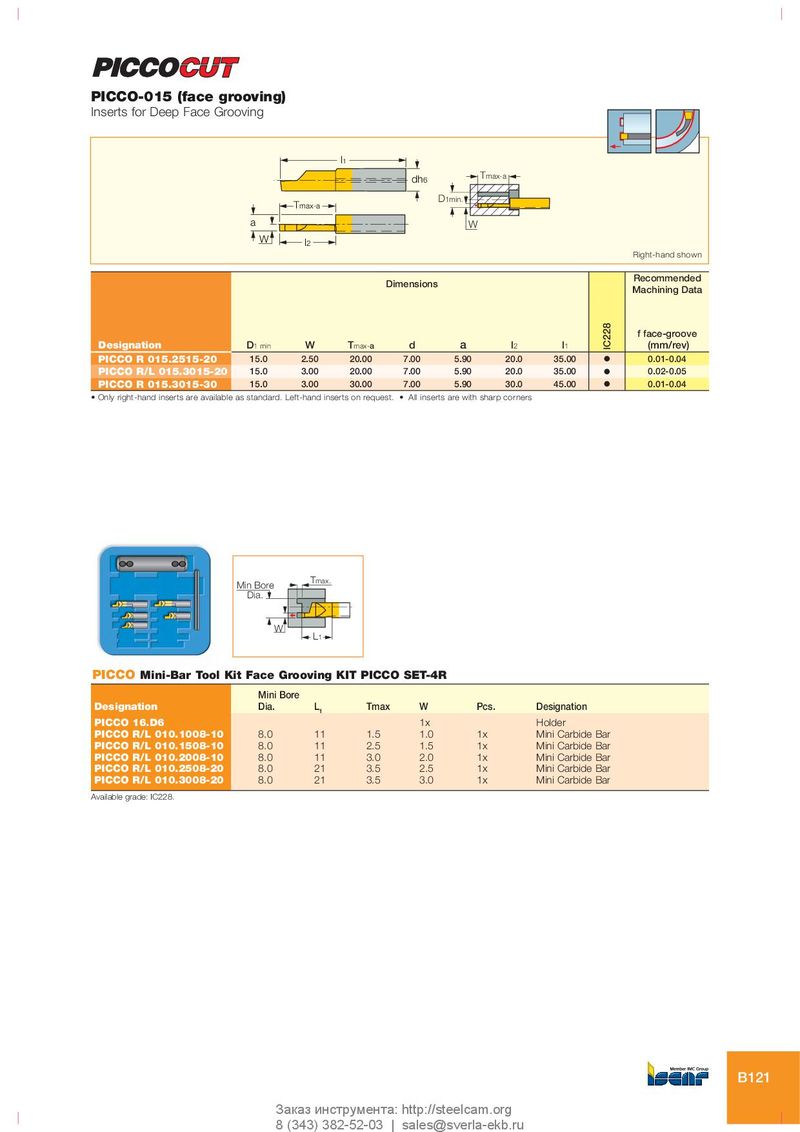

PICCO-015 (face grooving)
Inserts for Deep Face Grooving
T max-a a W l 2
l 1
dh T max-a 6 D1min. W
Dimensions
Right-hand shown
Recommended Machining Data
f face-groove
| Designation | D | W | T | a | d | a | l | l | (mm/rev) | |
| 1 min | max- | 2 | 1 | |||||||
| PICCO R 015.2515-20 | 15.0 | 2.50 | 20.00 | 7.00 | 5.90 | 20.0 | 35.00 | O | 0.01-0.04 | |
| PICCO R/L 015.3015-20 | 15.0 | 3.00 | 20.00 | 7.00 | 5.90 | 20.0 | 35.00 | O | 0.02-0.05 | |
| PICCO R 015.3015-30 | 15.0 | 3.00 | 30.00 | 7.00 | 5.90 | 30.0 | 45.00 | O | 0.01-0.04 |
- Only right-hand inserts are available as standard. Left-hand inserts on request.
- All inserts are with sharp corners
Tmax. Min Bore Dia.
W L1
PICCO Mini-Bar Tool Kit Face Grooving KIT PICCO SET-4R
| Designation | Mini Bor Dia. | e L1 | Tmax | W | Pcs. | Designation |
| PICCO 16.D6 | 1x | Holder | ||||
| PICCO R/L 010.1008-10 | 8.0 | 11 | 1.5 | 1.0 | 1x | Mini Carbide Bar |
| PICCO R/L 010.1508-10 | 8.0 | 11 | 2.5 | 1.5 | 1x | Mini Carbide Bar |
| PICCO R/L 010.2008-10 | 8.0 | 11 | 3.0 | 2.0 | 1x | Mini Carbide Bar |
| PICCO R/L 010.2508-20 | 8.0 | 21 | 3.5 | 2.5 | 1x | Mini Carbide Bar |
| PICCO R/L 010.3008-20 | 8.0 | 21 | 3.5 | 3.0 | 1x | Mini Carbide Bar |
Available grade: IC228.
