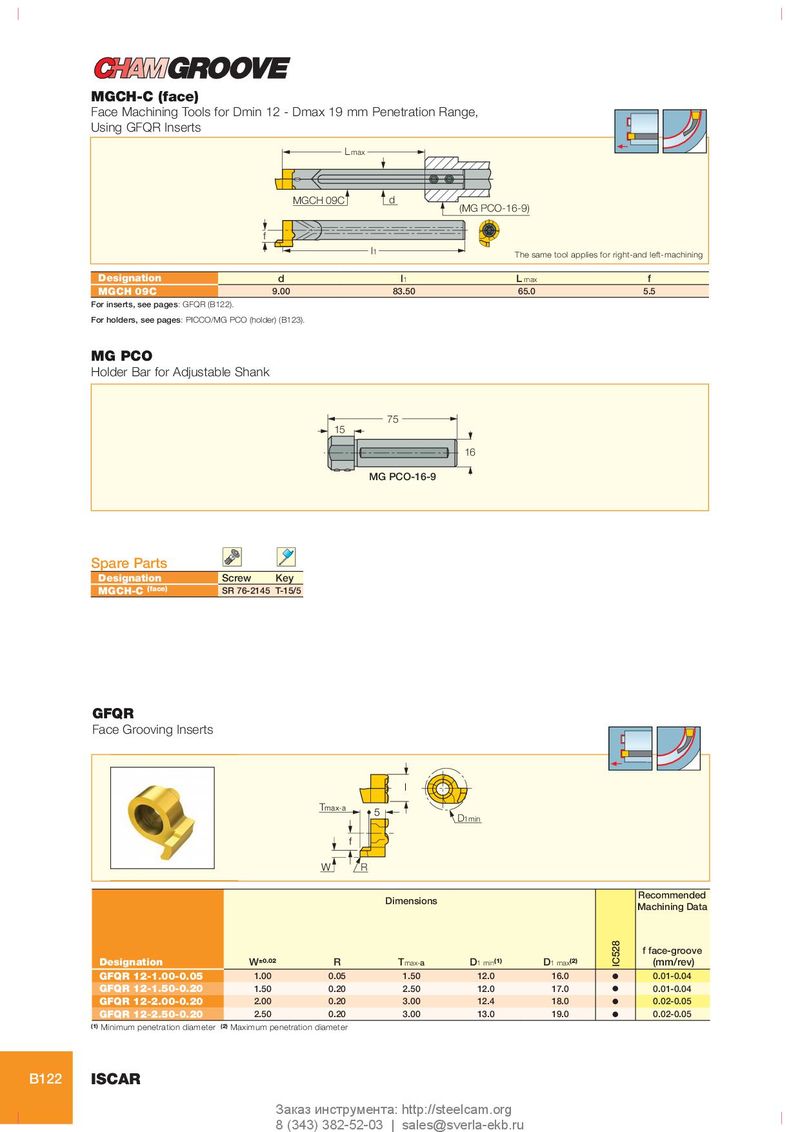

MGCH-C (face)
Face Machining Tools for Dmin 12 - Dmax 19 mm Penetration Range,
Using GFQR Inserts
L max
MGCH 09C d (MG PCO-16-9)
f l1 The same tool applies for right-and left-machining
| Designation | d | l1 | L max | f |
| MGCH 09C | 9.00 | 83.50 | 65.0 | 5.5 |
For inserts, see pages: GFQR (B122). For holders, see pages: PICCO/MG PCO (holder) (B123).
MG PCO
Holder Bar for Adjustable Shank
75 15 16 MG PCO-16-9
Spare Parts
Designation Screw Key
MGCH-C (face) SR 76-2145 T-15/5
GFQR
Face Grooving Inserts
l Tmax-a 5
f
W R
Dimensions
D1min
Recommended Machining Data
f face-groove
| Designation | W±0.02 | R | Tmax-a | D1 min (1) | D1 max(2) | (mm/rev) | |
| GFQR 12-1.00-0.05 | 1.00 | 0.05 | 1.50 | 12.0 | 16.0 | O | 0.01-0.04 |
| GFQR 12-1.50-0.20 | 1.50 | 0.20 | 2.50 | 12.0 | 17.0 | O | 0.01-0.04 |
| GFQR 12-2.00-0.20 | 2.00 | 0.20 | 3.00 | 12.4 | 18.0 | O | 0.02-0.05 |
| GFQR 12-2.50-0.20 | 2.50 | 0.20 | 3.00 | 13.0 | 19.0 | O | 0.02-0.05 |
(1) Minimum penetration diameter (2) Maximum penetration diameter
