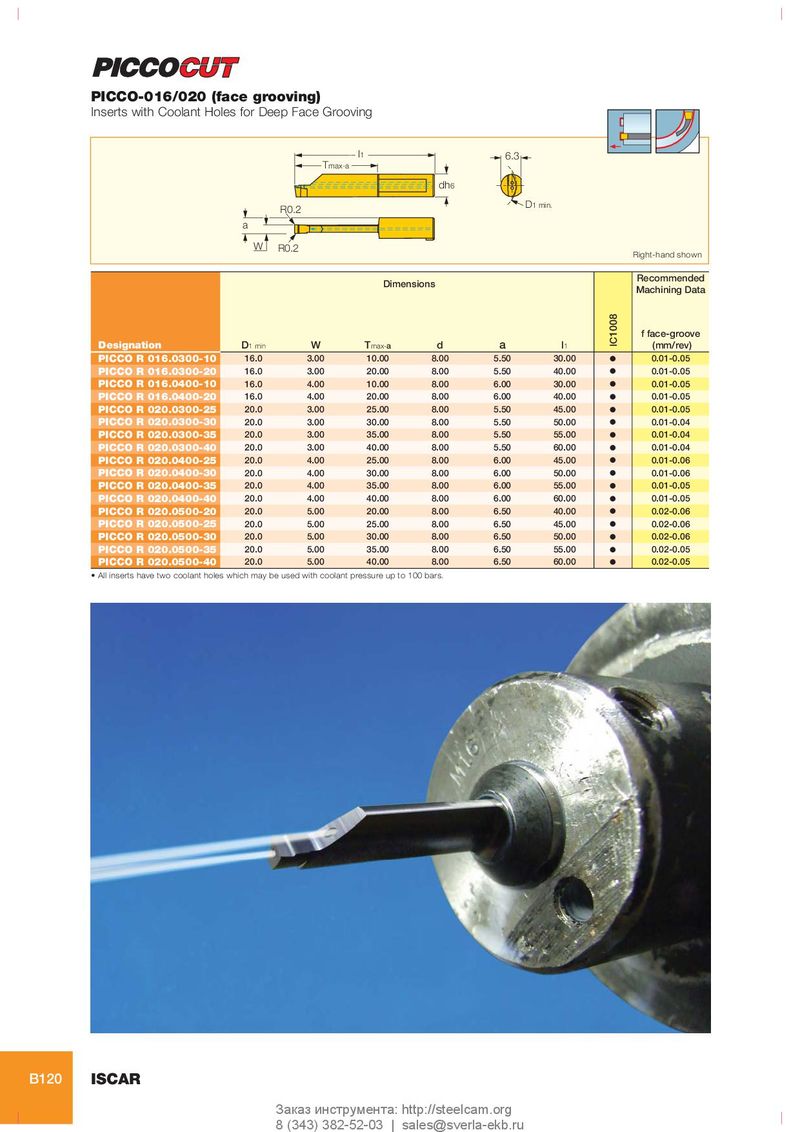

PICCO-016/020 (face grooving)
Inserts with Coolant Holes for Deep Face Grooving

l1 6.3
Tmax-a
dh6
R0.2 D1 min.
a
W R0.2
Right-hand shown
Recommended
Dimensions
Machining Data


IC1008
f face-groove
Designation D1 min W Tmax-a d a l1 (mm/rev)
PICCO R 016.0300-10 16.0 3.00 10.00 8.00 5.50 30.00 O 0.01-0.05
PICCO R 016.0300-20 16.0 3.00 20.00 8.00 5.50 40.00 O 0.01-0.05
PICCO R 016.0400-10 16.0 4.00 10.00 8.00 6.00 30.00 O 0.01-0.05
PICCO R 016.0400-20 16.0 4.00 20.00 8.00 6.00 40.00 O 0.01-0.05
PICCO R 020.0300-25 20.0 3.00 25.00 8.00 5.50 45.00 O 0.01-0.05
PICCO R 020.0300-30 20.0 3.00 30.00 8.00 5.50 50.00 O 0.01-0.04
PICCO R 020.0300-35 20.0 3.00 35.00 8.00 5.50 55.00 O 0.01-0.04
PICCO R 020.0300-40 20.0 3.00 40.00 8.00 5.50 60.00 O 0.01-0.04
PICCO R 020.0400-25 20.0 4.00 25.00 8.00 6.00 45.00 O 0.01-0.06
PICCO R 020.0400-30 20.0 4.00 30.00 8.00 6.00 50.00 O 0.01-0.06
PICCO R 020.0400-35 20.0 4.00 35.00 8.00 6.00 55.00 O 0.01-0.05
PICCO R 020.0400-40 20.0 4.00 40.00 8.00 6.00 60.00 O 0.01-0.05
PICCO R 020.0500-20 20.0 5.00 20.00 8.00 6.50 40.00 O 0.02-0.06
PICCO R 020.0500-25 20.0 5.00 25.00 8.00 6.50 45.00 O 0.02-0.06
PICCO R 020.0500-30 20.0 5.00 30.00 8.00 6.50 50.00 O 0.02-0.06
PICCO R 020.0500-35 20.0 5.00 35.00 8.00 6.50 55.00 O 0.02-0.05
PICCO R 020.0500-40 20.0 5.00 40.00 8.00 6.50 60.00 O 0.02-0.05
• All inserts have two coolant holes which may be used with coolant pressure up to 100 bars.
