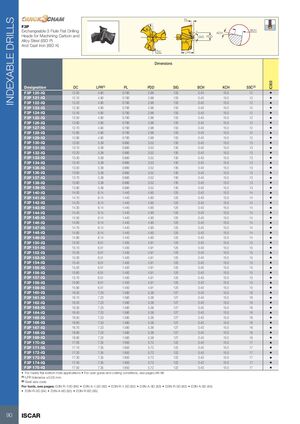

СМЕННЫЕ СВЁРЛА
F3P
Сменные трехзубые плоские головки сверла для обработки углеродистых и легированных сталей (ISO P) и чугуна (ISO K)
Размеры
| Обозначение | DC | LPR(1) | PL | PDD | SIG | BCH | KCH | SSC(2) | IC908 |
|---|---|---|---|---|---|---|---|---|---|
| F3P 120-IQ | 12.00 | 4.90 | 0.790 | 2.96 | 133 | 0.40 | 15.0 | 12 | • |
| F3P 121-IQ | 12.10 | 4.90 | 0.790 | 2.96 | 133 | 0.40 | 15.0 | 12 | • |
| F3P 122-IQ | 12.20 | 4.90 | 0.790 | 2.96 | 133 | 0.40 | 15.0 | 12 | • |
| F3P 123-IQ | 12.30 | 4.90 | 0.790 | 2.96 | 133 | 0.40 | 15.0 | 12 | • |
| F3P 124-IQ | 12.40 | 4.90 | 0.790 | 2.96 | 133 | 0.40 | 15.0 | 12 | • |
| F3P 125-IQ | 12.50 | 4.90 | 0.790 | 2.96 | 133 | 0.40 | 15.0 | 12 | • |
| F3P 126-IQ | 12.60 | 4.90 | 0.790 | 2.96 | 133 | 0.40 | 15.0 | 12 | • |
| F3P 127-IQ | 12.70 | 4.90 | 0.790 | 2.96 | 133 | 0.40 | 15.0 | 12 | • |
| F3P 128-IQ | 12.80 | 4.90 | 0.790 | 2.96 | 133 | 0.40 | 15.0 | 12 | • |
| F3P 129-IQ | 12.90 | 4.90 | 0.790 | 2.96 | 133 | 0.40 | 15.0 | 12 | • |
| F3P 130-IQ | 13.00 | 5.39 | 0.990 | 3.52 | 130 | 0.40 | 15.0 | 13 | • |
| F3P 131-IQ | 13.10 | 5.39 | 0.990 | 3.52 | 130 | 0.40 | 15.0 | 13 | • |
| F3P 132-IQ | 13.20 | 5.39 | 0.990 | 3.52 | 130 | 0.40 | 15.0 | 13 | • |
| F3P 133-IQ | 13.30 | 5.39 | 0.990 | 3.52 | 130 | 0.40 | 15.0 | 13 | • |
| F3P 134-IQ | 13.40 | 5.39 | 0.990 | 3.52 | 130 | 0.40 | 15.0 | 13 | • |
| F3P 135-IQ | 13.50 | 5.39 | 0.990 | 3.52 | 130 | 0.40 | 15.0 | 13 | • |
| F3P 136-IQ | 13.60 | 5.39 | 0.990 | 3.52 | 130 | 0.40 | 15.0 | 13 | • |
| F3P 137-IQ | 13.70 | 5.39 | 0.990 | 3.52 | 130 | 0.40 | 15.0 | 13 | • |
| F3P 138-IQ | 13.80 | 5.39 | 0.990 | 3.52 | 130 | 0.40 | 15.0 | 13 | • |
| F3P 139-IQ | 13.90 | 5.39 | 0.990 | 3.52 | 130 | 0.40 | 15.0 | 13 | • |
| F3P 140-IQ | 14.00 | 6.14 | 1.440 | 4.90 | 125 | 0.40 | 15.0 | 14 | • |
| F3P 141-IQ | 14.10 | 6.14 | 1.440 | 4.90 | 125 | 0.40 | 15.0 | 14 | • |
| F3P 142-IQ | 14.20 | 6.14 | 1.440 | 4.90 | 125 | 0.40 | 15.0 | 14 | • |
| F3P 143-IQ | 14.30 | 6.14 | 1.440 | 4.90 | 125 | 0.40 | 15.0 | 14 | • |
| F3P 144-IQ | 14.40 | 6.14 | 1.440 | 4.90 | 125 | 0.40 | 15.0 | 14 | • |
| F3P 145-IQ | 14.50 | 6.14 | 1.440 | 4.90 | 125 | 0.40 | 15.0 | 14 | • |
| F3P 146-IQ | 14.60 | 6.14 | 1.440 | 4.90 | 125 | 0.40 | 15.0 | 14 | • |
| F3P 147-IQ | 14.70 | 6.14 | 1.440 | 4.90 | 125 | 0.40 | 15.0 | 14 | • |
| F3P 148-IQ | 14.80 | 6.14 | 1.440 | 4.90 | 125 | 0.40 | 15.0 | 14 | • |
| F3P 149-IQ | 14.90 | 6.14 | 1.440 | 4.90 | 125 | 0.40 | 15.0 | 14 | • |
| F3P 150-IQ | 15.00 | 6.51 | 1.450 | 4.91 | 125 | 0.40 | 15.0 | 15 | • |
| F3P 151-IQ | 15.10 | 6.51 | 1.450 | 4.91 | 125 | 0.40 | 15.0 | 15 | • |
| F3P 152-IQ | 15.20 | 6.51 | 1.450 | 4.91 | 125 | 0.40 | 15.0 | 15 | • |
| F3P 153-IQ | 15.30 | 6.51 | 1.450 | 4.91 | 125 | 0.40 | 15.0 | 15 | • |
| F3P 154-IQ | 15.40 | 6.51 | 1.450 | 4.91 | 125 | 0.40 | 15.0 | 15 | • |
| F3P 155-IQ | 15.50 | 6.51 | 1.450 | 4.91 | 125 | 0.40 | 15.0 | 15 | • |
| F3P 156-IQ | 15.60 | 6.51 | 1.450 | 4.91 | 125 | 0.40 | 15.0 | 15 | • |
| F3P 157-IQ | 15.70 | 6.51 | 1.450 | 4.91 | 125 | 0.40 | 15.0 | 15 | • |
| F3P 158-IQ | 15.80 | 6.51 | 1.450 | 4.91 | 125 | 0.40 | 15.0 | 15 | • |
| F3P 159-IQ | 15.90 | 6.51 | 1.450 | 4.91 | 125 | 0.40 | 15.0 | 15 | • |
| F3P 160-IQ | 16.00 | 7.23 | 1.590 | 5.36 | 127 | 0.40 | 15.0 | 16 | • |
| F3P 161-IQ | 16.10 | 7.23 | 1.590 | 5.36 | 127 | 0.40 | 15.0 | 16 | • |
| F3P 162-IQ | 16.20 | 7.23 | 1.590 | 5.36 | 127 | 0.40 | 15.0 | 16 | • |
| F3P 163-IQ | 16.30 | 7.23 | 1.590 | 5.36 | 127 | 0.40 | 15.0 | 16 | • |
| F3P 164-IQ | 16.40 | 7.23 | 1.590 | 5.36 | 127 | 0.40 | 15.0 | 16 | • |
| F3P 165-IQ | 16.50 | 7.23 | 1.590 | 5.36 | 127 | 0.40 | 15.0 | 16 | • |
| F3P 166-IQ | 16.60 | 7.23 | 1.590 | 5.36 | 127 | 0.40 | 15.0 | 16 | • |
| F3P 167-IQ | 16.70 | 7.23 | 1.590 | 5.36 | 127 | 0.40 | 15.0 | 16 | • |
| F3P 168-IQ | 16.80 | 7.23 | 1.590 | 5.36 | 127 | 0.40 | 15.0 | 16 | • |
| F3P 169-IQ | 16.90 | 7.23 | 1.590 | 5.36 | 127 | 0.40 | 15.0 | 16 | • |
| F3P 170-IQ | 17.00 | 7.35 | 1.650 | 5.72 | 122 | 0.40 | 15.0 | 17 | • |
| F3P 171-IQ | 17.10 | 7.35 | 1.650 | 5.72 | 122 | 0.40 | 15.0 | 17 | • |
| F3P 172-IQ | 17.20 | 7.35 | 1.650 | 5.72 | 122 | 0.40 | 15.0 | 17 | • |
| F3P 173-IQ | 17.30 | 7.35 | 1.650 | 5.72 | 122 | 0.40 | 15.0 | 17 | • |
| F3P 174-IQ | 17.40 | 7.35 | 1.650 | 5.72 | 122 | 0.40 | 15.0 | 17 | • |
| F3P 175-IQ | 17.50 | 7.35 | 1.650 | 5.72 | 122 | 0.40 | 15.0 | 17 | • |
- Для приложений с почти плоским дном скважины
- Рекомендации по использованию и условия резания см. на стр. 96-98
- (1) Допуск LPR ±0.05 мм
- (2) Код размера посадочного места
Инструменты см. на стр.: D3N R-10D (86) • D3N A-1.5D (82) • D3N R-1.5D (82) • D3N A-3D (83) • D3N R-3D (83) • D3N A-5D (84) • D3N R-5D (84) • D3N A-8D (85) • D3N R-8D (85)
