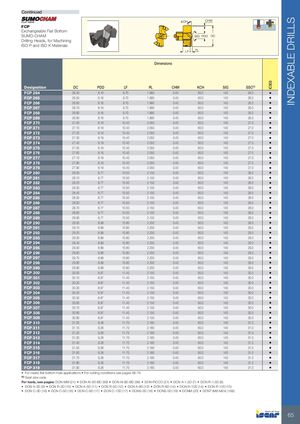

РЕЖУЩИЕ СВЕРЛА ИНДЕКСИРУЕМЫЕ (продолжение)
FCP — Сменные буровые головки плоского дна для обработки материалов ISO P и ISO K (SUMO-CHAM)
Размеры
| Обозначение | DC | PDD | LF | PL | CHW | KCH | SIG | SSC(1) |
|---|---|---|---|---|---|---|---|---|
| FCP 264 | 26.40 | 8.16 | 9.70 | 1.990 | 0.40 | 60.0 | 140 | 26.0 |
| FCP 265 | 26.50 | 8.16 | 9.70 | 1.990 | 0.40 | 60.0 | 140 | 26.0 |
| FCP 266 | 26.60 | 8.16 | 9.70 | 1.990 | 0.40 | 60.0 | 140 | 26.0 |
| FCP 267 | 26.70 | 8.16 | 9.70 | 1.990 | 0.40 | 60.0 | 140 | 26.0 |
| FCP 268 | 26.80 | 8.16 | 9.70 | 1.990 | 0.40 | 60.0 | 140 | 26.0 |
| FCP 269 | 26.90 | 8.16 | 9.70 | 1.990 | 0.40 | 60.0 | 140 | 26.0 |
| FCP 270 | 27.00 | 8.19 | 10.40 | 2.050 | 0.40 | 60.0 | 140 | 27.0 |
| FCP 271 | 27.10 | 8.19 | 10.40 | 2.050 | 0.40 | 60.0 | 140 | 27.0 |
| FCP 272 | 27.20 | 8.19 | 10.40 | 2.050 | 0.40 | 60.0 | 140 | 27.0 |
| FCP 273 | 27.30 | 8.19 | 10.40 | 2.050 | 0.40 | 60.0 | 140 | 27.0 |
| FCP 274 | 27.40 | 8.19 | 10.40 | 2.050 | 0.40 | 60.0 | 140 | 27.0 |
| FCP 275 | 27.50 | 8.19 | 10.40 | 2.050 | 0.40 | 60.0 | 140 | 27.0 |
| FCP 276 | 27.60 | 8.19 | 10.40 | 2.050 | 0.40 | 60.0 | 140 | 27.0 |
| FCP 277 | 27.70 | 8.19 | 10.40 | 2.050 | 0.40 | 60.0 | 140 | 27.0 |
| FCP 278 | 27.80 | 8.19 | 10.40 | 2.050 | 0.40 | 60.0 | 140 | 27.0 |
| FCP 279 | 27.90 | 8.19 | 10.40 | 2.050 | 0.40 | 60.0 | 140 | 27.0 |
| FCP 280 | 28.00 | 8.77 | 10.50 | 2.150 | 0.40 | 60.0 | 140 | 28.0 |
| FCP 281 | 28.10 | 8.77 | 10.50 | 2.150 | 0.40 | 60.0 | 140 | 28.0 |
| FCP 282 | 28.20 | 8.77 | 10.50 | 2.150 | 0.40 | 60.0 | 140 | 28.0 |
| FCP 283 | 28.30 | 8.77 | 10.50 | 2.150 | 0.40 | 60.0 | 140 | 28.0 |
| FCP 284 | 28.40 | 8.77 | 10.50 | 2.150 | 0.40 | 60.0 | 140 | 28.0 |
| FCP 285 | 28.50 | 8.77 | 10.50 | 2.150 | 0.40 | 60.0 | 140 | 28.0 |
| FCP 286 | 28.60 | 8.77 | 10.50 | 2.150 | 0.40 | 60.0 | 140 | 28.0 |
| FCP 287 | 28.70 | 8.77 | 10.50 | 2.150 | 0.40 | 60.0 | 140 | 28.0 |
| FCP 288 | 28.80 | 8.77 | 10.50 | 2.150 | 0.40 | 60.0 | 140 | 28.0 |
| FCP 289 | 28.90 | 8.77 | 10.50 | 2.150 | 0.40 | 60.0 | 140 | 28.0 |
| FCP 290 | 29.00 | 8.99 | 10.80 | 2.200 | 0.40 | 60.0 | 140 | 29.0 |
| FCP 291 | 29.10 | 8.99 | 10.80 | 2.200 | 0.40 | 60.0 | 140 | 29.0 |
| FCP 292 | 29.20 | 8.99 | 10.80 | 2.200 | 0.40 | 60.0 | 140 | 29.0 |
| FCP 293 | 29.30 | 8.99 | 10.80 | 2.200 | 0.40 | 60.0 | 140 | 29.0 |
| FCP 294 | 29.40 | 8.99 | 10.80 | 2.200 | 0.40 | 60.0 | 140 | 29.0 |
| FCP 295 | 29.50 | 8.99 | 10.80 | 2.200 | 0.40 | 60.0 | 140 | 29.0 |
| FCP 296 | 29.60 | 8.99 | 10.80 | 2.200 | 0.40 | 60.0 | 140 | 29.0 |
| FCP 297 | 29.70 | 8.99 | 10.80 | 2.200 | 0.40 | 60.0 | 140 | 29.0 |
| FCP 298 | 29.80 | 8.99 | 10.80 | 2.200 | 0.40 | 60.0 | 140 | 29.0 |
| FCP 299 | 29.90 | 8.99 | 10.80 | 2.200 | 0.40 | 60.0 | 140 | 29.0 |
| FCP 300 | 30.00 | 8.97 | 11.40 | 2.150 | 0.40 | 60.0 | 140 | 30.0 |
| FCP 301 | 30.10 | 8.97 | 11.40 | 2.150 | 0.40 | 60.0 | 140 | 30.0 |
| FCP 302 | 30.20 | 8.97 | 11.40 | 2.150 | 0.40 | 60.0 | 140 | 30.0 |
| FCP 303 | 30.30 | 8.97 | 11.40 | 2.150 | 0.40 | 60.0 | 140 | 30.0 |
| FCP 304 | 30.40 | 8.97 | 11.40 | 2.150 | 0.40 | 60.0 | 140 | 30.0 |
| FCP 305 | 30.50 | 8.97 | 11.40 | 2.150 | 0.40 | 60.0 | 140 | 30.0 |
| FCP 306 | 30.60 | 8.97 | 11.40 | 2.150 | 0.40 | 60.0 | 140 | 30.0 |
| FCP 307 | 30.70 | 8.97 | 11.40 | 2.150 | 0.40 | 60.0 | 140 | 30.0 |
| FCP 308 | 30.80 | 8.97 | 11.40 | 2.150 | 0.40 | 60.0 | 140 | 30.0 |
| FCP 309 | 30.90 | 8.97 | 11.40 | 2.150 | 0.40 | 60.0 | 140 | 30.0 |
| FCP 310 | 31.00 | 9.28 | 11.70 | 2.180 | 0.40 | 60.0 | 140 | 31.0 |
| FCP 311 | 31.10 | 9.28 | 11.70 | 2.180 | 0.40 | 60.0 | 140 | 31.0 |
| FCP 312 | 31.20 | 9.28 | 11.70 | 2.180 | 0.40 | 60.0 | 140 | 31.0 |
| FCP 313 | 31.30 | 9.28 | 11.70 | 2.180 | 0.40 | 60.0 | 140 | 31.0 |
| FCP 314 | 31.40 | 9.28 | 11.70 | 2.180 | 0.40 | 60.0 | 140 | 31.0 |
| FCP 315 | 31.50 | 9.28 | 11.70 | 2.180 | 0.40 | 60.0 | 140 | 31.0 |
| FCP 316 | 31.60 | 9.28 | 11.70 | 2.180 | 0.40 | 60.0 | 140 | 31.0 |
| FCP 317 | 31.70 | 9.28 | 11.70 | 2.180 | 0.40 | 60.0 | 140 | 31.0 |
| FCP 318 | 31.80 | 9.28 | 11.70 | 2.180 | 0.40 | 60.0 | 140 | 31.0 |
| FCP 319 | 31.90 | 9.28 | 11.70 | 2.180 | 0.40 | 60.0 | 140 | 31.0 |
• Для приложений с почти плоским дном отверстия • Условия резания см. на стр. 68–76
(1) Код размера гнезда
Инструменты см. на стр.: DCN-MM (21) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-8D (17) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • DCNT (M8-M24) (168)
