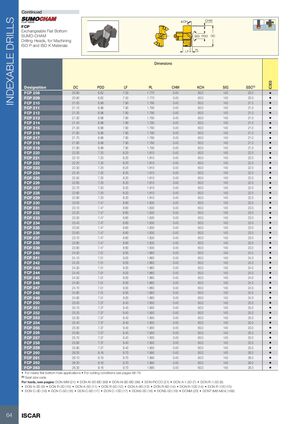

РЕЖУЩИЕ СВЕРЛА ИНДЕКСИРУЕМЫЕ (продолжение)
FCP — Сменные буровые головки плоского дна для обработки материалов ISO P и ISO K (SUMO-CHAM)
Размеры
| Обозначение | DC | PDD | LF | PL | CHW | KCH | SIG | SSC(1) |
|---|---|---|---|---|---|---|---|---|
| FCP 208 | 20.80 | 6.62 | 7.50 | 1.770 | 0.40 | 60.0 | 140 | 20.0 |
| FCP 209 | 20.90 | 6.62 | 7.50 | 1.770 | 0.40 | 60.0 | 140 | 20.0 |
| FCP 210 | 21.00 | 6.98 | 7.90 | 1.790 | 0.40 | 60.0 | 140 | 21.0 |
| FCP 211 | 21.10 | 6.98 | 7.90 | 1.790 | 0.40 | 60.0 | 140 | 21.0 |
| FCP 212 | 21.20 | 6.98 | 7.90 | 1.790 | 0.40 | 60.0 | 140 | 21.0 |
| FCP 213 | 21.30 | 6.98 | 7.90 | 1.790 | 0.40 | 60.0 | 140 | 21.0 |
| FCP 214 | 21.40 | 6.98 | 7.90 | 1.790 | 0.40 | 60.0 | 140 | 21.0 |
| FCP 215 | 21.50 | 6.98 | 7.90 | 1.790 | 0.40 | 60.0 | 140 | 21.0 |
| FCP 216 | 21.60 | 6.98 | 7.90 | 1.790 | 0.40 | 60.0 | 140 | 21.0 |
| FCP 217 | 21.70 | 6.98 | 7.90 | 1.790 | 0.40 | 60.0 | 140 | 21.0 |
| FCP 218 | 21.80 | 6.98 | 7.90 | 1.790 | 0.40 | 60.0 | 140 | 21.0 |
| FCP 219 | 21.90 | 6.98 | 7.90 | 1.790 | 0.40 | 60.0 | 140 | 21.0 |
| FCP 220 | 22.00 | 7.20 | 8.20 | 1.810 | 0.40 | 60.0 | 140 | 22.0 |
| FCP 221 | 22.10 | 7.20 | 8.20 | 1.810 | 0.40 | 60.0 | 140 | 22.0 |
| FCP 222 | 22.20 | 7.20 | 8.20 | 1.810 | 0.40 | 60.0 | 140 | 22.0 |
| FCP 223 | 22.30 | 7.20 | 8.20 | 1.810 | 0.40 | 60.0 | 140 | 22.0 |
| FCP 224 | 22.40 | 7.20 | 8.20 | 1.810 | 0.40 | 60.0 | 140 | 22.0 |
| FCP 225 | 22.50 | 7.20 | 8.20 | 1.810 | 0.40 | 60.0 | 140 | 22.0 |
| FCP 226 | 22.60 | 7.20 | 8.20 | 1.810 | 0.40 | 60.0 | 140 | 22.0 |
| FCP 227 | 22.70 | 7.20 | 8.20 | 1.810 | 0.40 | 60.0 | 140 | 22.0 |
| FCP 228 | 22.80 | 7.20 | 8.20 | 1.810 | 0.40 | 60.0 | 140 | 22.0 |
| FCP 229 | 22.90 | 7.20 | 8.20 | 1.810 | 0.40 | 60.0 | 140 | 22.0 |
| FCP 230 | 23.00 | 7.47 | 8.60 | 1.830 | 0.40 | 60.0 | 140 | 23.0 |
| FCP 231 | 23.10 | 7.47 | 8.60 | 1.830 | 0.40 | 60.0 | 140 | 23.0 |
| FCP 232 | 23.20 | 7.47 | 8.60 | 1.830 | 0.40 | 60.0 | 140 | 23.0 |
| FCP 233 | 23.30 | 7.47 | 8.60 | 1.830 | 0.40 | 60.0 | 140 | 23.0 |
| FCP 234 | 23.40 | 7.47 | 8.60 | 1.830 | 0.40 | 60.0 | 140 | 23.0 |
| FCP 235 | 23.50 | 7.47 | 8.60 | 1.830 | 0.40 | 60.0 | 140 | 23.0 |
| FCP 236 | 23.60 | 7.47 | 8.60 | 1.830 | 0.40 | 60.0 | 140 | 23.0 |
| FCP 237 | 23.70 | 7.47 | 8.60 | 1.830 | 0.40 | 60.0 | 140 | 23.0 |
| FCP 238 | 23.80 | 7.47 | 8.60 | 1.830 | 0.40 | 60.0 | 140 | 23.0 |
| FCP 239 | 23.90 | 7.47 | 8.60 | 1.830 | 0.40 | 60.0 | 140 | 23.0 |
| FCP 240 | 24.00 | 7.51 | 9.00 | 1.860 | 0.40 | 60.0 | 140 | 24.0 |
| FCP 241 | 24.10 | 7.51 | 9.00 | 1.860 | 0.40 | 60.0 | 140 | 24.0 |
| FCP 242 | 24.20 | 7.51 | 9.00 | 1.860 | 0.40 | 60.0 | 140 | 24.0 |
| FCP 243 | 24.30 | 7.51 | 9.00 | 1.860 | 0.40 | 60.0 | 140 | 24.0 |
| FCP 244 | 24.40 | 7.51 | 9.00 | 1.860 | 0.40 | 60.0 | 140 | 24.0 |
| FCP 245 | 24.50 | 7.51 | 9.00 | 1.860 | 0.40 | 60.0 | 140 | 24.0 |
| FCP 246 | 24.60 | 7.51 | 9.00 | 1.860 | 0.40 | 60.0 | 140 | 24.0 |
| FCP 247 | 24.70 | 7.51 | 9.00 | 1.860 | 0.40 | 60.0 | 140 | 24.0 |
| FCP 248 | 24.80 | 7.51 | 9.00 | 1.860 | 0.40 | 60.0 | 140 | 24.0 |
| FCP 249 | 24.90 | 7.51 | 9.00 | 1.860 | 0.40 | 60.0 | 140 | 24.0 |
| FCP 250 | 25.00 | 7.37 | 9.40 | 1.900 | 0.40 | 60.0 | 140 | 25.0 |
| FCP 251 | 25.10 | 7.37 | 9.40 | 1.900 | 0.40 | 60.0 | 140 | 25.0 |
| FCP 252 | 25.20 | 7.37 | 9.40 | 1.900 | 0.40 | 60.0 | 140 | 25.0 |
| FCP 253 | 25.30 | 7.37 | 9.40 | 1.900 | 0.40 | 60.0 | 140 | 25.0 |
| FCP 254 | 25.40 | 7.37 | 9.40 | 1.900 | 0.40 | 60.0 | 140 | 25.0 |
| FCP 255 | 25.50 | 7.37 | 9.40 | 1.900 | 0.40 | 60.0 | 140 | 25.0 |
| FCP 256 | 25.60 | 7.37 | 9.40 | 1.900 | 0.40 | 60.0 | 140 | 25.0 |
| FCP 257 | 25.70 | 7.37 | 9.40 | 1.900 | 0.40 | 60.0 | 140 | 25.0 |
| FCP 258 | 25.80 | 7.37 | 9.40 | 1.900 | 0.40 | 60.0 | 140 | 25.0 |
| FCP 259 | 25.90 | 7.37 | 9.40 | 1.900 | 0.40 | 60.0 | 140 | 25.0 |
| FCP 260 | 26.00 | 8.16 | 9.70 | 1.990 | 0.40 | 60.0 | 140 | 26.0 |
| FCP 261 | 26.10 | 8.16 | 9.70 | 1.990 | 0.40 | 60.0 | 140 | 26.0 |
| FCP 262 | 26.20 | 8.16 | 9.70 | 1.990 | 0.40 | 60.0 | 140 | 26.0 |
| FCP 263 | 26.30 | 8.16 | 9.70 | 1.990 | 0.40 | 60.0 | 140 | 26.0 |
• Для приложений с почти плоским дном отверстия • Условия резания см. на стр. 68–76
(1) Код размера гнезда
Инструменты см. на стр.: DCN-MM (21) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-8D (17) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • DCNT (M8-M24) (168)
