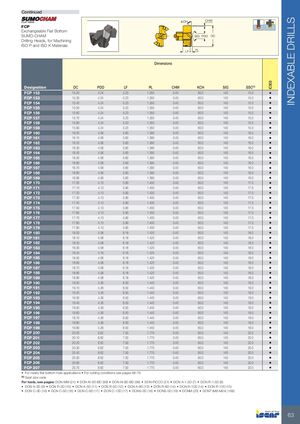

РЕЖУЩИЕ СВЕРЛА ИНДЕКСИРУЕМЫЕ
FCP — Сменные буровые головки плоского дна для обработки материалов ISO P и ISO K (SUMO-CHAM)
Размеры
| Обозначение | DC | PDD | LF | PL | CHW | KCH | SIG | SSC(1) |
|---|---|---|---|---|---|---|---|---|
| FCP 152 | 15.20 | 4.24 | 5.23 | 1.350 | 0.40 | 60.0 | 140 | 15.0 |
| FCP 153 | 15.30 | 4.24 | 5.23 | 1.350 | 0.40 | 60.0 | 140 | 15.0 |
| FCP 154 | 15.40 | 4.24 | 5.23 | 1.350 | 0.40 | 60.0 | 140 | 15.0 |
| FCP 155 | 15.50 | 4.24 | 5.23 | 1.350 | 0.40 | 60.0 | 140 | 15.0 |
| FCP 156 | 15.60 | 4.24 | 5.23 | 1.350 | 0.40 | 60.0 | 140 | 15.0 |
| FCP 157 | 15.70 | 4.24 | 5.23 | 1.350 | 0.40 | 60.0 | 140 | 15.0 |
| FCP 158 | 15.80 | 4.24 | 5.23 | 1.350 | 0.40 | 60.0 | 140 | 15.0 |
| FCP 159 | 15.90 | 4.24 | 5.23 | 1.350 | 0.40 | 60.0 | 140 | 15.0 |
| FCP 160 | 16.00 | 4.06 | 5.60 | 1.390 | 0.40 | 60.0 | 140 | 16.0 |
| FCP 161 | 16.10 | 4.06 | 5.60 | 1.390 | 0.40 | 60.0 | 140 | 16.0 |
| FCP 162 | 16.20 | 4.06 | 5.60 | 1.390 | 0.40 | 60.0 | 140 | 16.0 |
| FCP 163 | 16.30 | 4.06 | 5.60 | 1.390 | 0.40 | 60.0 | 140 | 16.0 |
| FCP 164 | 16.40 | 4.06 | 5.60 | 1.390 | 0.40 | 60.0 | 140 | 16.0 |
| FCP 165 | 16.50 | 4.06 | 5.60 | 1.390 | 0.40 | 60.0 | 140 | 16.0 |
| FCP 166 | 16.60 | 4.06 | 5.60 | 1.390 | 0.40 | 60.0 | 140 | 16.0 |
| FCP 167 | 16.70 | 4.06 | 5.60 | 1.390 | 0.40 | 60.0 | 140 | 16.0 |
| FCP 168 | 16.80 | 4.06 | 5.60 | 1.390 | 0.40 | 60.0 | 140 | 16.0 |
| FCP 169 | 16.90 | 4.06 | 5.60 | 1.390 | 0.40 | 60.0 | 140 | 16.0 |
| FCP 170 | 17.00 | 4.13 | 5.90 | 1.400 | 0.40 | 60.0 | 140 | 17.0 |
| FCP 171 | 17.10 | 4.13 | 5.90 | 1.400 | 0.40 | 60.0 | 140 | 17.0 |
| FCP 172 | 17.20 | 4.13 | 5.90 | 1.400 | 0.40 | 60.0 | 140 | 17.0 |
| FCP 173 | 17.30 | 4.13 | 5.90 | 1.400 | 0.40 | 60.0 | 140 | 17.0 |
| FCP 174 | 17.40 | 4.13 | 5.90 | 1.400 | 0.40 | 60.0 | 140 | 17.0 |
| FCP 175 | 17.50 | 4.13 | 5.90 | 1.400 | 0.40 | 60.0 | 140 | 17.0 |
| FCP 176 | 17.60 | 4.13 | 5.90 | 1.400 | 0.40 | 60.0 | 140 | 17.0 |
| FCP 177 | 17.70 | 4.13 | 5.90 | 1.400 | 0.40 | 60.0 | 140 | 17.0 |
| FCP 178 | 17.80 | 4.13 | 5.90 | 1.400 | 0.40 | 60.0 | 140 | 17.0 |
| FCP 179 | 17.90 | 4.13 | 5.90 | 1.400 | 0.40 | 60.0 | 140 | 17.0 |
| FCP 180 | 18.00 | 4.08 | 6.18 | 1.420 | 0.40 | 60.0 | 140 | 18.0 |
| FCP 181 | 18.10 | 4.08 | 6.18 | 1.420 | 0.40 | 60.0 | 140 | 18.0 |
| FCP 182 | 18.20 | 4.08 | 6.18 | 1.420 | 0.40 | 60.0 | 140 | 18.0 |
| FCP 183 | 18.30 | 4.08 | 6.18 | 1.420 | 0.40 | 60.0 | 140 | 18.0 |
| FCP 184 | 18.40 | 4.16 | 6.18 | 1.420 | 0.40 | 60.0 | 140 | 18.0 |
| FCP 185 | 18.50 | 4.08 | 6.18 | 1.420 | 0.40 | 60.0 | 140 | 18.0 |
| FCP 186 | 18.60 | 4.08 | 6.18 | 1.420 | 0.40 | 60.0 | 140 | 18.0 |
| FCP 187 | 18.70 | 4.08 | 6.18 | 1.420 | 0.40 | 60.0 | 140 | 18.0 |
| FCP 188 | 18.80 | 4.08 | 6.18 | 1.420 | 0.40 | 60.0 | 140 | 18.0 |
| FCP 189 | 18.90 | 4.08 | 6.18 | 1.420 | 0.40 | 60.0 | 140 | 18.0 |
| FCP 190 | 19.00 | 4.26 | 6.50 | 1.440 | 0.40 | 60.0 | 140 | 19.0 |
| FCP 191 | 19.10 | 4.26 | 6.50 | 1.440 | 0.40 | 60.0 | 140 | 19.0 |
| FCP 192 | 19.20 | 4.26 | 6.50 | 1.440 | 0.40 | 60.0 | 140 | 19.0 |
| FCP 193 | 19.30 | 4.26 | 6.50 | 1.440 | 0.40 | 60.0 | 140 | 19.0 |
| FCP 194 | 19.40 | 4.26 | 6.50 | 1.440 | 0.40 | 60.0 | 140 | 19.0 |
| FCP 195 | 19.50 | 4.26 | 6.50 | 1.440 | 0.40 | 60.0 | 140 | 19.0 |
| FCP 196 | 19.60 | 4.26 | 6.50 | 1.440 | 0.40 | 60.0 | 140 | 19.0 |
| FCP 197 | 19.70 | 4.26 | 6.50 | 1.440 | 0.40 | 60.0 | 140 | 19.0 |
| FCP 198 | 19.80 | 4.26 | 6.50 | 1.440 | 0.40 | 60.0 | 140 | 19.0 |
| FCP 199 | 19.90 | 4.26 | 6.50 | 1.440 | 0.40 | 60.0 | 140 | 19.0 |
| FCP 200 | 20.00 | 6.62 | 7.50 | 1.770 | 0.40 | 60.0 | 140 | 20.0 |
| FCP 201 | 20.10 | 6.62 | 7.50 | 1.770 | 0.40 | 60.0 | 140 | 20.0 |
| FCP 202 | 20.20 | 6.62 | 7.50 | 1.770 | 0.40 | 60.0 | 140 | 20.0 |
| FCP 203 | 20.30 | 6.62 | 7.50 | 1.770 | 0.40 | 60.0 | 140 | 20.0 |
| FCP 204 | 20.40 | 6.62 | 7.50 | 1.770 | 0.40 | 60.0 | 140 | 20.0 |
| FCP 205 | 20.50 | 6.62 | 7.50 | 1.770 | 0.40 | 60.0 | 140 | 20.0 |
| FCP 206 | 20.60 | 6.62 | 7.50 | 1.770 | 0.40 | 60.0 | 140 | 20.0 |
| FCP 207 | 20.70 | 6.62 | 7.50 | 1.770 | 0.40 | 60.0 | 140 | 20.0 |
• Для приложений с почти плоским дном отверстия • Условия резания см. на стр. 68–76
(1) Код размера гнезда
Инструменты см. на стр.: DCN-MM (21) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-8D (17) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • DCNT (M8-M24) (168)
