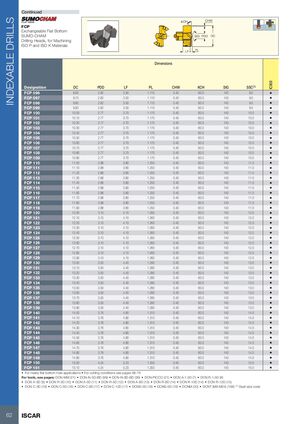

СВЕРЛЯЩИЕ ГОЛОВКИ СО СМЕННЫМИ ПЛАСТИНАМИ (продолжение)
FCP
Сверлящие головки SUMO-CHAM со сменяемыми пластинами для плоского дна, для обработки материалов ISO P и ISO K
Размеры
| Обозначение | DC | PDD | LF | PL | CHW | KCH | SIG | SSC(1) |
|---|---|---|---|---|---|---|---|---|
| FCP 096 | 9.60 | 2.82 | 3.50 | 1.110 | 0.40 | 60.0 | 140 | 9.0 |
| FCP 097 | 9.70 | 2.82 | 3.50 | 1.110 | 0.40 | 60.0 | 140 | 9.0 |
| FCP 098 | 9.80 | 2.82 | 3.50 | 1.110 | 0.40 | 60.0 | 140 | 9.0 |
| FCP 099 | 9.90 | 2.82 | 3.50 | 1.110 | 0.40 | 60.0 | 140 | 9.0 |
| FCP 100 | 10.00 | 2.77 | 3.70 | 1.170 | 0.40 | 60.0 | 140 | 10.0 |
| FCP 101 | 10.10 | 2.77 | 3.70 | 1.170 | 0.40 | 60.0 | 140 | 10.0 |
| FCP 102 | 10.20 | 2.77 | 3.70 | 1.170 | 0.40 | 60.0 | 140 | 10.0 |
| FCP 103 | 10.30 | 2.77 | 3.70 | 1.170 | 0.40 | 60.0 | 140 | 10.0 |
| FCP 104 | 10.40 | 2.77 | 3.70 | 1.170 | 0.40 | 60.0 | 140 | 10.0 |
| FCP 105 | 10.50 | 2.77 | 3.70 | 1.170 | 0.40 | 60.0 | 140 | 10.0 |
| FCP 106 | 10.60 | 2.77 | 3.70 | 1.170 | 0.40 | 60.0 | 140 | 10.0 |
| FCP 107 | 10.70 | 2.77 | 3.70 | 1.170 | 0.40 | 60.0 | 140 | 10.0 |
| FCP 108 | 10.80 | 2.77 | 3.70 | 1.170 | 0.40 | 60.0 | 140 | 10.0 |
| FCP 109 | 10.90 | 2.77 | 3.70 | 1.170 | 0.40 | 60.0 | 140 | 10.0 |
| FCP 110 | 11.00 | 2.88 | 3.80 | 1.250 | 0.40 | 60.0 | 140 | 11.0 |
| FCP 111 | 11.10 | 2.88 | 3.80 | 1.250 | 0.40 | 60.0 | 140 | 11.0 |
| FCP 112 | 11.20 | 2.88 | 3.80 | 1.250 | 0.40 | 60.0 | 140 | 11.0 |
| FCP 113 | 11.30 | 2.88 | 3.80 | 1.250 | 0.40 | 60.0 | 140 | 11.0 |
| FCP 114 | 11.40 | 2.88 | 3.80 | 1.250 | 0.40 | 60.0 | 140 | 11.0 |
| FCP 115 | 11.50 | 2.88 | 3.80 | 1.250 | 0.40 | 60.0 | 140 | 11.0 |
| FCP 116 | 11.60 | 2.88 | 3.80 | 1.250 | 0.40 | 60.0 | 140 | 11.0 |
| FCP 117 | 11.70 | 2.88 | 3.80 | 1.250 | 0.40 | 60.0 | 140 | 11.0 |
| FCP 118 | 11.80 | 2.88 | 3.80 | 1.250 | 0.40 | 60.0 | 140 | 11.0 |
| FCP 119 | 11.90 | 2.88 | 3.80 | 1.250 | 0.40 | 60.0 | 140 | 11.0 |
| FCP 120 | 12.00 | 3.10 | 4.10 | 1.260 | 0.40 | 60.0 | 140 | 12.0 |
| FCP 121 | 12.10 | 3.10 | 4.10 | 1.260 | 0.40 | 60.0 | 140 | 12.0 |
| FCP 122 | 12.20 | 3.10 | 4.10 | 1.260 | 0.40 | 60.0 | 140 | 12.0 |
| FCP 123 | 12.30 | 3.10 | 4.10 | 1.260 | 0.40 | 60.0 | 140 | 12.0 |
| FCP 124 | 12.40 | 3.10 | 4.10 | 1.260 | 0.40 | 60.0 | 140 | 12.0 |
| FCP 125 | 12.50 | 3.10 | 4.10 | 1.260 | 0.40 | 60.0 | 140 | 12.0 |
| FCP 126 | 12.60 | 3.10 | 4.10 | 1.260 | 0.40 | 60.0 | 140 | 12.0 |
| FCP 127 | 12.70 | 3.10 | 4.10 | 1.260 | 0.40 | 60.0 | 140 | 12.0 |
| FCP 128 | 12.80 | 3.10 | 4.10 | 1.260 | 0.40 | 60.0 | 140 | 12.0 |
| FCP 129 | 12.90 | 3.10 | 4.10 | 1.260 | 0.40 | 60.0 | 140 | 12.0 |
| FCP 130 | 13.00 | 3.50 | 4.40 | 1.280 | 0.40 | 60.0 | 140 | 13.0 |
| FCP 131 | 13.10 | 3.50 | 4.40 | 1.280 | 0.40 | 60.0 | 140 | 13.0 |
| FCP 132 | 13.20 | 3.50 | 4.40 | 1.280 | 0.40 | 60.0 | 140 | 13.0 |
| FCP 133 | 13.30 | 3.50 | 4.40 | 1.280 | 0.40 | 60.0 | 140 | 13.0 |
| FCP 134 | 13.40 | 3.50 | 4.40 | 1.280 | 0.40 | 60.0 | 140 | 13.0 |
| FCP 135 | 13.50 | 3.50 | 4.40 | 1.280 | 0.40 | 60.0 | 140 | 13.0 |
| FCP 136 | 13.60 | 3.50 | 4.40 | 1.280 | 0.40 | 60.0 | 140 | 13.0 |
| FCP 137 | 13.70 | 3.50 | 4.40 | 1.280 | 0.40 | 60.0 | 140 | 13.0 |
| FCP 138 | 13.80 | 3.50 | 4.40 | 1.280 | 0.40 | 60.0 | 140 | 13.0 |
| FCP 139 | 13.90 | 3.50 | 4.40 | 1.280 | 0.40 | 60.0 | 140 | 13.0 |
| FCP 140 | 14.00 | 3.76 | 4.80 | 1.310 | 0.40 | 60.0 | 140 | 14.0 |
| FCP 141 | 14.10 | 3.76 | 4.80 | 1.310 | 0.40 | 60.0 | 140 | 14.0 |
| FCP 142 | 14.20 | 3.76 | 4.80 | 1.310 | 0.40 | 60.0 | 140 | 14.0 |
| FCP 143 | 14.30 | 3.76 | 4.80 | 1.310 | 0.40 | 60.0 | 140 | 14.0 |
| FCP 144 | 14.40 | 3.76 | 4.80 | 1.310 | 0.40 | 60.0 | 140 | 14.0 |
| FCP 145 | 14.50 | 3.76 | 4.80 | 1.310 | 0.40 | 60.0 | 140 | 14.0 |
| FCP 146 | 14.60 | 3.76 | 4.80 | 1.310 | 0.40 | 60.0 | 140 | 14.0 |
| FCP 147 | 14.70 | 3.76 | 4.80 | 1.310 | 0.40 | 60.0 | 140 | 14.0 |
| FCP 148 | 14.80 | 3.76 | 4.80 | 1.310 | 0.40 | 60.0 | 140 | 14.0 |
| FCP 149 | 14.90 | 3.76 | 4.80 | 1.310 | 0.40 | 60.0 | 140 | 14.0 |
| FCP 150 | 15.00 | 4.24 | 5.23 | 1.350 | 0.40 | 60.0 | 140 | 15.0 |
| FCP 151 | 15.10 | 4.24 | 5.23 | 1.350 | 0.40 | 60.0 | 140 | 15.0 |
- Для приложений с почти плоским дном отверстия
- Режимы резания см. на стр. 68-76
(1) Код размера гнезда
Для инструмента см. стр.: DCN-MM (21) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-8D (17) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • DCNT (M8-M24) (168)
