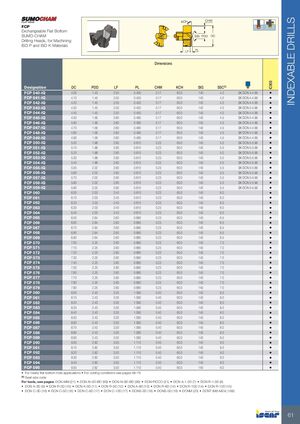

СВЕРЛЯЩИЕ ГОЛОВКИ СО СМЕННЫМИ ПЛАСТИНАМИ
FCP
Сверлящие головки SUMO-CHAM со сменяемыми пластинами для плоского дна, для обработки материалов ISO P и ISO K
Размеры
| Обозначение | DC | PDD | LF | PL | CHW | KCH | SIG | SSC(1) |
|---|---|---|---|---|---|---|---|---|
| FCP 040-IQ | 4.00 | 1.45 | 2.50 | 0.450 | 0.17 | 60.0 | 140 | 4.0 |
| FCP 041-IQ | 4.10 | 1.45 | 2.50 | 0.450 | 0.17 | 60.0 | 140 | 4.0 |
| FCP 042-IQ | 4.20 | 1.45 | 2.50 | 0.450 | 0.17 | 60.0 | 140 | 4.0 |
| FCP 043-IQ | 4.30 | 1.45 | 2.50 | 0.450 | 0.17 | 60.0 | 140 | 4.0 |
| FCP 044-IQ | 4.40 | 1.45 | 2.50 | 0.450 | 0.17 | 60.0 | 140 | 4.0 |
| FCP 045-IQ | 4.50 | 1.56 | 2.80 | 0.480 | 0.17 | 60.0 | 140 | 4.5 |
| FCP 046-IQ | 4.60 | 1.56 | 2.80 | 0.480 | 0.17 | 60.0 | 140 | 4.5 |
| FCP 047-IQ | 4.70 | 1.56 | 2.80 | 0.480 | 0.17 | 60.0 | 140 | 4.5 |
| FCP 048-IQ | 4.80 | 1.56 | 2.80 | 0.480 | 0.17 | 60.0 | 140 | 4.5 |
| FCP 049-IQ | 4.90 | 1.56 | 2.80 | 0.480 | 0.17 | 60.0 | 140 | 4.5 |
| FCP 050-IQ | 5.00 | 1.98 | 2.90 | 0.610 | 0.23 | 60.0 | 140 | 5.0 |
| FCP 051-IQ | 5.10 | 1.98 | 2.90 | 0.610 | 0.23 | 60.0 | 140 | 5.0 |
| FCP 052-IQ | 5.20 | 1.98 | 2.90 | 0.610 | 0.23 | 60.0 | 140 | 5.0 |
| FCP 053-IQ | 5.30 | 1.98 | 2.90 | 0.610 | 0.23 | 60.0 | 140 | 5.0 |
| FCP 054-IQ | 5.40 | 1.98 | 2.90 | 0.610 | 0.23 | 60.0 | 140 | 5.0 |
| FCP 055-IQ | 5.50 | 2.02 | 2.90 | 0.610 | 0.23 | 60.0 | 140 | 5.5 |
| FCP 056-IQ | 5.60 | 2.02 | 2.90 | 0.610 | 0.23 | 60.0 | 140 | 5.5 |
| FCP 057-IQ | 5.70 | 2.02 | 2.90 | 0.610 | 0.23 | 60.0 | 140 | 5.5 |
| FCP 058-IQ | 5.80 | 2.02 | 2.90 | 0.610 | 0.23 | 60.0 | 140 | 5.5 |
| FCP 059-IQ | 5.90 | 2.02 | 2.90 | 0.610 | 0.23 | 60.0 | 140 | 5.5 |
| FCP 060 | 6.00 | 2.03 | 2.40 | 0.610 | 0.23 | 60.0 | 140 | 6.0 |
| FCP 061 | 6.10 | 2.03 | 2.40 | 0.610 | 0.23 | 60.0 | 140 | 6.0 |
| FCP 062 | 6.20 | 2.03 | 2.40 | 0.610 | 0.23 | 60.0 | 140 | 6.0 |
| FCP 063 | 6.30 | 2.03 | 2.40 | 0.610 | 0.23 | 60.0 | 140 | 6.0 |
| FCP 064 | 6.40 | 2.03 | 2.40 | 0.610 | 0.23 | 60.0 | 140 | 6.0 |
| FCP 065 | 6.50 | 2.64 | 2.60 | 0.680 | 0.23 | 60.0 | 140 | 6.5 |
| FCP 066 | 6.60 | 2.64 | 2.60 | 0.680 | 0.23 | 60.0 | 140 | 6.5 |
| FCP 067 | 6.70 | 2.64 | 2.60 | 0.680 | 0.23 | 60.0 | 140 | 6.5 |
| FCP 068 | 6.80 | 2.64 | 2.60 | 0.680 | 0.23 | 60.0 | 140 | 6.5 |
| FCP 069 | 6.90 | 2.64 | 2.60 | 0.680 | 0.23 | 60.0 | 140 | 6.5 |
| FCP 070 | 7.00 | 2.25 | 2.90 | 0.680 | 0.23 | 60.0 | 140 | 7.0 |
| FCP 071 | 7.10 | 2.25 | 2.90 | 0.680 | 0.23 | 60.0 | 140 | 7.0 |
| FCP 072 | 7.20 | 2.25 | 2.90 | 0.680 | 0.23 | 60.0 | 140 | 7.0 |
| FCP 073 | 7.30 | 2.25 | 2.90 | 0.680 | 0.23 | 60.0 | 140 | 7.0 |
| FCP 074 | 7.40 | 2.25 | 2.90 | 0.680 | 0.23 | 60.0 | 140 | 7.0 |
| FCP 075 | 7.50 | 2.25 | 2.90 | 0.680 | 0.23 | 60.0 | 140 | 7.0 |
| FCP 076 | 7.60 | 2.25 | 2.90 | 0.680 | 0.23 | 60.0 | 140 | 7.0 |
| FCP 077 | 7.70 | 2.25 | 2.90 | 0.680 | 0.23 | 60.0 | 140 | 7.0 |
| FCP 078 | 7.80 | 2.25 | 2.90 | 0.680 | 0.23 | 60.0 | 140 | 7.0 |
| FCP 079 | 7.90 | 2.25 | 2.90 | 0.680 | 0.23 | 60.0 | 140 | 7.0 |
| FCP 080 | 8.00 | 2.43 | 3.30 | 1.090 | 0.40 | 60.0 | 140 | 8.0 |
| FCP 081 | 8.10 | 2.43 | 3.30 | 1.090 | 0.40 | 60.0 | 140 | 8.0 |
| FCP 082 | 8.20 | 2.43 | 3.30 | 1.090 | 0.40 | 60.0 | 140 | 8.0 |
| FCP 083 | 8.30 | 2.43 | 3.30 | 1.090 | 0.40 | 60.0 | 140 | 8.0 |
| FCP 084 | 8.40 | 2.43 | 3.30 | 1.090 | 0.40 | 60.0 | 140 | 8.0 |
| FCP 085 | 8.50 | 2.43 | 3.30 | 1.090 | 0.40 | 60.0 | 140 | 8.0 |
| FCP 086 | 8.60 | 2.43 | 3.30 | 1.090 | 0.40 | 60.0 | 140 | 8.0 |
| FCP 087 | 8.70 | 2.43 | 3.30 | 1.090 | 0.40 | 60.0 | 140 | 8.0 |
| FCP 088 | 8.80 | 2.43 | 3.30 | 1.090 | 0.40 | 60.0 | 140 | 8.0 |
| FCP 089 | 8.90 | 2.43 | 3.30 | 1.090 | 0.40 | 60.0 | 140 | 8.0 |
| FCP 090 | 9.00 | 2.82 | 3.50 | 1.110 | 0.40 | 60.0 | 140 | 9.0 |
| FCP 091 | 9.10 | 2.82 | 3.50 | 1.110 | 0.40 | 60.0 | 140 | 9.0 |
| FCP 092 | 9.20 | 2.82 | 3.50 | 1.110 | 0.40 | 60.0 | 140 | 9.0 |
| FCP 093 | 9.30 | 2.82 | 3.50 | 1.110 | 0.40 | 60.0 | 140 | 9.0 |
| FCP 094 | 9.40 | 2.82 | 3.50 | 1.110 | 0.40 | 60.0 | 140 | 9.0 |
| FCP 095 | 9.50 | 2.82 | 3.50 | 1.110 | 0.40 | 60.0 | 140 | 9.0 |
- Для приложений с почти плоским дном отверстия
- Режимы резания см. на стр. 68-76
(1) Код размера гнезда
Для инструмента см. стр.: DCN-MM (21) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-8D (17) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • DCNT (M8-M24) (168)
