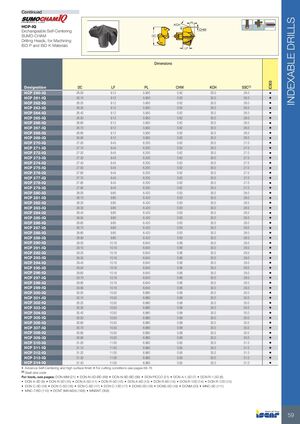

СВЕРЛЯЩИЕ ГОЛОВКИ СО СМЕННЫМИ ПЛАСТИНАМИ (продолжение)
HCP-IQ
Сверлящие головки SUMO-CHAM со сменяемыми самоцентрирующимися пластинами для обработки материалов ISO P и ISO K
Размеры
| Обозначение | DC | LF | PL | CHW | KCH | SSC(1) |
|---|---|---|---|---|---|---|
| HCP 260-IQ | 26.00 | 9.12 | 5.950 | 0.62 | 30.0 | 26.0 |
| HCP 261-IQ | 26.10 | 9.12 | 5.950 | 0.62 | 30.0 | 26.0 |
| HCP 262-IQ | 26.20 | 9.12 | 5.950 | 0.62 | 30.0 | 26.0 |
| HCP 263-IQ | 26.30 | 9.12 | 5.950 | 0.62 | 30.0 | 26.0 |
| HCP 264-IQ | 26.40 | 9.12 | 5.950 | 0.62 | 30.0 | 26.0 |
| HCP 265-IQ | 26.50 | 9.12 | 5.950 | 0.62 | 30.0 | 26.0 |
| HCP 266-IQ | 26.60 | 9.12 | 5.950 | 0.62 | 30.0 | 26.0 |
| HCP 267-IQ | 26.70 | 9.12 | 5.950 | 0.62 | 30.0 | 26.0 |
| HCP 268-IQ | 26.80 | 9.12 | 5.950 | 0.62 | 30.0 | 26.0 |
| HCP 269-IQ | 26.90 | 9.12 | 5.950 | 0.62 | 30.0 | 26.0 |
| HCP 270-IQ | 27.00 | 9.45 | 6.200 | 0.62 | 30.0 | 27.0 |
| HCP 271-IQ | 27.10 | 9.45 | 6.200 | 0.62 | 30.0 | 27.0 |
| HCP 272-IQ | 27.20 | 9.45 | 6.200 | 0.62 | 30.0 | 27.0 |
| HCP 273-IQ | 27.30 | 9.45 | 6.200 | 0.62 | 30.0 | 27.0 |
| HCP 274-IQ | 27.40 | 9.45 | 6.200 | 0.62 | 30.0 | 27.0 |
| HCP 275-IQ | 27.50 | 9.45 | 6.200 | 0.62 | 30.0 | 27.0 |
| HCP 276-IQ | 27.60 | 9.45 | 6.200 | 0.62 | 30.0 | 27.0 |
| HCP 277-IQ | 27.70 | 9.45 | 6.200 | 0.62 | 30.0 | 27.0 |
| HCP 278-IQ | 27.80 | 9.45 | 6.200 | 0.62 | 30.0 | 27.0 |
| HCP 279-IQ | 27.90 | 9.45 | 6.200 | 0.62 | 30.0 | 27.0 |
| HCP 280-IQ | 28.00 | 9.80 | 6.420 | 0.63 | 30.0 | 28.0 |
| HCP 281-IQ | 28.10 | 9.80 | 6.420 | 0.63 | 30.0 | 28.0 |
| HCP 282-IQ | 28.20 | 9.80 | 6.420 | 0.63 | 30.0 | 28.0 |
| HCP 283-IQ | 28.30 | 9.80 | 6.420 | 0.63 | 30.0 | 28.0 |
| HCP 284-IQ | 28.40 | 9.80 | 6.420 | 0.63 | 30.0 | 28.0 |
| HCP 285-IQ | 28.50 | 9.80 | 6.420 | 0.63 | 30.0 | 28.0 |
| HCP 286-IQ | 28.60 | 9.80 | 6.420 | 0.63 | 30.0 | 28.0 |
| HCP 287-IQ | 28.70 | 9.80 | 6.420 | 0.63 | 30.0 | 28.0 |
| HCP 288-IQ | 28.80 | 9.80 | 6.420 | 0.63 | 30.0 | 28.0 |
| HCP 289-IQ | 28.90 | 9.80 | 6.420 | 0.63 | 30.0 | 28.0 |
| HCP 290-IQ | 29.00 | 10.16 | 6.640 | 0.66 | 30.0 | 29.0 |
| HCP 291-IQ | 29.10 | 10.16 | 6.640 | 0.66 | 30.0 | 29.0 |
| HCP 292-IQ | 29.20 | 10.16 | 6.640 | 0.66 | 30.0 | 29.0 |
| HCP 293-IQ | 29.30 | 10.16 | 6.640 | 0.66 | 30.0 | 29.0 |
| HCP 294-IQ | 29.40 | 10.16 | 6.640 | 0.66 | 30.0 | 29.0 |
| HCP 295-IQ | 29.50 | 10.16 | 6.640 | 0.66 | 30.0 | 29.0 |
| HCP 296-IQ | 29.60 | 10.16 | 6.640 | 0.66 | 30.0 | 29.0 |
| HCP 297-IQ | 29.70 | 10.16 | 6.640 | 0.66 | 30.0 | 29.0 |
| HCP 298-IQ | 29.80 | 10.16 | 6.640 | 0.66 | 30.0 | 29.0 |
| HCP 299-IQ | 29.90 | 10.16 | 6.640 | 0.66 | 30.0 | 29.0 |
| HCP 300-IQ | 30.00 | 10.50 | 6.880 | 0.68 | 30.0 | 30.0 |
| HCP 301-IQ | 30.10 | 10.50 | 6.880 | 0.68 | 30.0 | 30.0 |
| HCP 302-IQ | 30.20 | 10.50 | 6.880 | 0.68 | 30.0 | 30.0 |
| HCP 303-IQ | 30.30 | 10.50 | 6.880 | 0.68 | 30.0 | 30.0 |
| HCP 304-IQ | 30.40 | 10.50 | 6.880 | 0.68 | 30.0 | 30.0 |
| HCP 305-IQ | 30.50 | 10.50 | 6.880 | 0.68 | 30.0 | 30.0 |
| HCP 306-IQ | 30.60 | 10.50 | 6.880 | 0.68 | 30.0 | 30.0 |
| HCP 307-IQ | 30.70 | 10.50 | 6.880 | 0.68 | 30.0 | 30.0 |
| HCP 308-IQ | 30.80 | 10.50 | 6.880 | 0.68 | 30.0 | 30.0 |
| HCP 309-IQ | 30.90 | 10.50 | 6.880 | 0.68 | 30.0 | 30.0 |
| HCP 310-IQ | 31.00 | 11.00 | 6.960 | 0.65 | 30.0 | 31.0 |
| HCP 311-IQ | 31.10 | 11.00 | 6.960 | 0.65 | 30.0 | 31.0 |
| HCP 312-IQ | 31.20 | 11.00 | 6.960 | 0.65 | 30.0 | 31.0 |
| HCP 313-IQ | 31.30 | 11.00 | 6.960 | 0.65 | 30.0 | 31.0 |
| HCP 314-IQ | 31.40 | 11.00 | 6.960 | 0.65 | 30.0 | 31.0 |
- Автоматическое самоцентрирование и высокое качество поверхности
- Режимы резания см. на стр. 68-76
(1) Код размера гнезда
