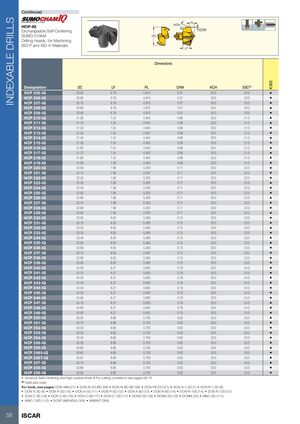

СВЕРЛЯЩИЕ ГОЛОВКИ СО СМЕННЫМИ ПЛАСТИНАМИ (продолжение)
HCP-IQ
Сверлящие головки SUMO-CHAM со сменяемыми самоцентрирующимися пластинами для обработки материалов ISO P и ISO K
Размеры
| Обозначение | DC | LF | PL | CHW | KCH | SSC(1) |
|---|---|---|---|---|---|---|
| HCP 205-IQ | 20.50 | 6.79 | 4.810 | 0.57 | 30.0 | 20.0 |
| HCP 206-IQ | 20.60 | 6.79 | 4.810 | 0.57 | 30.0 | 20.0 |
| HCP 207-IQ | 20.70 | 6.79 | 4.810 | 0.57 | 30.0 | 20.0 |
| HCP 208-IQ | 20.80 | 6.79 | 4.810 | 0.57 | 30.0 | 20.0 |
| HCP 209-IQ | 20.90 | 6.79 | 4.810 | 0.57 | 30.0 | 20.0 |
| HCP 210-IQ | 21.00 | 7.24 | 4.940 | 0.69 | 30.0 | 21.0 |
| HCP 211-IQ | 21.10 | 7.24 | 4.940 | 0.69 | 30.0 | 21.0 |
| HCP 212-IQ | 21.20 | 7.24 | 4.940 | 0.69 | 30.0 | 21.0 |
| HCP 213-IQ | 21.30 | 7.24 | 4.940 | 0.69 | 30.0 | 21.0 |
| HCP 214-IQ | 21.40 | 7.24 | 4.940 | 0.69 | 30.0 | 21.0 |
| HCP 215-IQ | 21.50 | 7.24 | 4.940 | 0.69 | 30.0 | 21.0 |
| HCP 216-IQ | 21.60 | 7.24 | 4.940 | 0.69 | 30.0 | 21.0 |
| HCP 217-IQ | 21.70 | 7.24 | 4.940 | 0.69 | 30.0 | 21.0 |
| HCP 218-IQ | 21.80 | 7.24 | 4.940 | 0.69 | 30.0 | 21.0 |
| HCP 219-IQ | 21.90 | 7.20 | 4.940 | 0.69 | 30.0 | 21.0 |
| HCP 220-IQ | 22.00 | 7.56 | 5.200 | 0.71 | 30.0 | 22.0 |
| HCP 221-IQ | 22.10 | 7.56 | 5.200 | 0.71 | 30.0 | 22.0 |
| HCP 222-IQ | 22.20 | 7.56 | 5.200 | 0.71 | 30.0 | 22.0 |
| HCP 223-IQ | 22.30 | 7.56 | 5.200 | 0.71 | 30.0 | 22.0 |
| HCP 224-IQ | 22.40 | 7.56 | 5.200 | 0.71 | 30.0 | 22.0 |
| HCP 225-IQ | 22.50 | 7.56 | 5.200 | 0.71 | 30.0 | 22.0 |
| HCP 226-IQ | 22.60 | 7.56 | 5.200 | 0.71 | 30.0 | 22.0 |
| HCP 227-IQ | 22.70 | 7.56 | 5.200 | 0.71 | 30.0 | 22.0 |
| HCP 228-IQ | 22.80 | 7.56 | 5.200 | 0.71 | 30.0 | 22.0 |
| HCP 229-IQ | 22.90 | 7.56 | 5.200 | 0.71 | 30.0 | 22.0 |
| HCP 230-IQ | 23.00 | 8.05 | 5.280 | 0.75 | 30.0 | 23.0 |
| HCP 231-IQ | 23.10 | 8.05 | 5.280 | 0.75 | 30.0 | 23.0 |
| HCP 232-IQ | 23.20 | 8.05 | 5.280 | 0.75 | 30.0 | 23.0 |
| HCP 233-IQ | 23.30 | 8.05 | 5.280 | 0.75 | 30.0 | 23.0 |
| HCP 234-IQ | 23.40 | 8.05 | 5.280 | 0.75 | 30.0 | 23.0 |
| HCP 235-IQ | 23.50 | 8.05 | 5.280 | 0.75 | 30.0 | 23.0 |
| HCP 236-IQ | 23.60 | 8.05 | 5.280 | 0.75 | 30.0 | 23.0 |
| HCP 237-IQ | 23.70 | 8.05 | 5.280 | 0.75 | 30.0 | 23.0 |
| HCP 238-IQ | 23.80 | 8.05 | 5.280 | 0.75 | 30.0 | 23.0 |
| HCP 239-IQ | 23.90 | 8.05 | 5.280 | 0.75 | 30.0 | 23.0 |
| HCP 240-IQ | 24.00 | 8.27 | 5.630 | 0.79 | 30.0 | 24.0 |
| HCP 241-IQ | 24.10 | 8.27 | 5.630 | 0.79 | 30.0 | 24.0 |
| HCP 242-IQ | 24.20 | 8.27 | 5.630 | 0.79 | 30.0 | 24.0 |
| HCP 243-IQ | 24.30 | 8.27 | 5.630 | 0.79 | 30.0 | 24.0 |
| HCP 244-IQ | 24.40 | 8.27 | 5.630 | 0.79 | 30.0 | 24.0 |
| HCP 245-IQ | 24.50 | 8.27 | 5.630 | 0.79 | 30.0 | 24.0 |
| HCP 246-IQ | 24.60 | 8.27 | 5.630 | 0.79 | 30.0 | 24.0 |
| HCP 247-IQ | 24.70 | 8.27 | 5.630 | 0.79 | 30.0 | 24.0 |
| HCP 248-IQ | 24.80 | 8.27 | 5.630 | 0.79 | 30.0 | 24.0 |
| HCP 249-IQ | 24.90 | 8.27 | 5.630 | 0.79 | 30.0 | 24.0 |
| HCP 250-IQ | 25.00 | 8.80 | 5.700 | 0.63 | 30.0 | 25.0 |
| HCP 251-IQ | 25.10 | 8.80 | 5.700 | 0.63 | 30.0 | 25.0 |
| HCP 252-IQ | 25.20 | 8.80 | 5.700 | 0.63 | 30.0 | 25.0 |
| HCP 253-IQ | 25.30 | 8.80 | 5.700 | 0.63 | 30.0 | 25.0 |
| HCP 254-IQ | 25.40 | 8.80 | 5.700 | 0.63 | 30.0 | 25.0 |
| HCP 255-IQ | 25.50 | 8.80 | 5.700 | 0.63 | 30.0 | 25.0 |
| HCP 256-IQ | 25.60 | 8.80 | 5.700 | 0.63 | 30.0 | 25.0 |
| HCP 2565-IQ | 25.65 | 8.80 | 5.700 | 0.63 | 30.0 | 25.0 |
| HCP 2567-IQ | 25.67 | 8.80 | 5.700 | 0.63 | 30.0 | 25.0 |
| HCP 257-IQ | 25.70 | 8.80 | 5.700 | 0.63 | 30.0 | 25.0 |
| HCP 258-IQ | 25.80 | 8.80 | 5.700 | 0.63 | 30.0 | 25.0 |
| HCP 259-IQ | 25.90 | 8.80 | 5.700 | 0.63 | 30.0 | 25.0 |
- Автоматическое самоцентрирование и высокое качество поверхности
- Режимы резания см. на стр. 68-76
(1) Код размера гнезда
Для инструмента см. стр.: DCN-MM (21) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-8D (17) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • MNC-5D (111) • MNC-7/8D (112) • DCNT (M8-M24) (168) • MNSNT (358)
