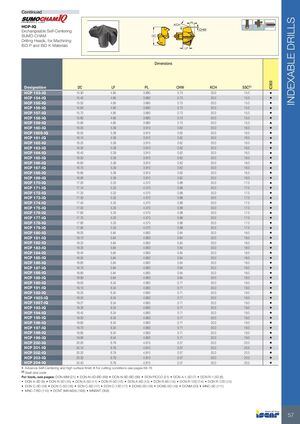

СМЕННЫЕ СПИРАЛИ — Продолжение
HCP-IQ
Сменные самоцентрирующиеся буровые головки SUMO-CHAM для обработки материалов ISO P и ISO K
Размеры
| Обозначение | DC | LF | PL | CHW | KCH | SSC(1) |
|---|---|---|---|---|---|---|
| HCP 153-IQ | 15.30 | 4.85 | 3.880 | 0.73 | 30.0 | 15.0 |
| HCP 154-IQ | 15.40 | 4.85 | 3.880 | 0.73 | 30.0 | 15.0 |
| HCP 155-IQ | 15.50 | 4.85 | 3.880 | 0.73 | 30.0 | 15.0 |
| HCP 156-IQ | 15.60 | 4.85 | 3.880 | 0.73 | 30.0 | 15.0 |
| HCP 157-IQ | 15.70 | 4.85 | 3.880 | 0.73 | 30.0 | 15.0 |
| HCP 158-IQ | 15.80 | 4.85 | 3.880 | 0.73 | 30.0 | 15.0 |
| HCP 159-IQ | 15.90 | 4.85 | 3.880 | 0.73 | 30.0 | 15.0 |
| HCP 160-IQ | 16.00 | 5.39 | 3.910 | 0.62 | 30.0 | 16.0 |
| HCP 1605-IQ | 16.05 | 5.39 | 3.910 | 0.62 | 30.0 | 16.0 |
| HCP 161-IQ | 16.10 | 5.39 | 3.910 | 0.62 | 30.0 | 16.0 |
| HCP 162-IQ | 16.20 | 5.39 | 3.910 | 0.62 | 30.0 | 16.0 |
| HCP 163-IQ | 16.30 | 5.39 | 3.910 | 0.62 | 30.0 | 16.0 |
| HCP 164-IQ | 16.40 | 5.39 | 3.910 | 0.62 | 30.0 | 16.0 |
| HCP 165-IQ | 16.50 | 5.39 | 3.910 | 0.62 | 30.0 | 16.0 |
| HCP 166-IQ | 16.60 | 5.39 | 3.910 | 0.62 | 30.0 | 16.0 |
| HCP 167-IQ | 16.70 | 5.39 | 3.910 | 0.62 | 30.0 | 16.0 |
| HCP 168-IQ | 16.80 | 5.39 | 3.910 | 0.62 | 30.0 | 16.0 |
| HCP 169-IQ | 16.90 | 5.39 | 3.910 | 0.62 | 30.0 | 16.0 |
| HCP 170-IQ | 17.00 | 5.33 | 4.570 | 0.88 | 30.0 | 17.0 |
| HCP 171-IQ | 17.10 | 5.33 | 4.570 | 0.88 | 30.0 | 17.0 |
| HCP 172-IQ | 17.20 | 5.33 | 4.570 | 0.88 | 30.0 | 17.0 |
| HCP 173-IQ | 17.30 | 5.33 | 4.570 | 0.88 | 30.0 | 17.0 |
| HCP 174-IQ | 17.40 | 5.33 | 4.570 | 0.88 | 30.0 | 17.0 |
| HCP 175-IQ | 17.50 | 5.33 | 4.570 | 0.88 | 30.0 | 17.0 |
| HCP 176-IQ | 17.60 | 5.33 | 4.570 | 0.88 | 30.0 | 17.0 |
| HCP 177-IQ | 17.70 | 5.33 | 4.570 | 0.88 | 30.0 | 17.0 |
| HCP 178-IQ | 17.80 | 5.33 | 4.570 | 0.88 | 30.0 | 17.0 |
| HCP 179-IQ | 17.90 | 5.33 | 4.570 | 0.88 | 30.0 | 17.0 |
| HCP 180-IQ | 18.00 | 5.84 | 4.660 | 0.84 | 30.0 | 18.0 |
| HCP 181-IQ | 18.10 | 5.84 | 4.660 | 0.84 | 30.0 | 18.0 |
| HCP 182-IQ | 18.20 | 5.84 | 4.660 | 0.84 | 30.0 | 18.0 |
| HCP 183-IQ | 18.30 | 5.84 | 4.660 | 0.84 | 30.0 | 18.0 |
| HCP 184-IQ | 18.40 | 5.84 | 4.660 | 0.84 | 30.0 | 18.0 |
| HCP 185-IQ | 18.50 | 5.84 | 4.660 | 0.84 | 30.0 | 18.0 |
| HCP 186-IQ | 18.60 | 5.84 | 4.660 | 0.84 | 30.0 | 18.0 |
| HCP 187-IQ | 18.70 | 5.84 | 4.660 | 0.84 | 30.0 | 18.0 |
| HCP 188-IQ | 18.80 | 5.84 | 4.660 | 0.84 | 30.0 | 18.0 |
| HCP 189-IQ | 18.90 | 5.84 | 4.660 | 0.84 | 30.0 | 18.0 |
| HCP 190-IQ | 19.00 | 6.34 | 4.660 | 0.71 | 30.0 | 19.0 |
| HCP 191-IQ | 19.10 | 6.34 | 4.660 | 0.71 | 30.0 | 19.0 |
| HCP 192-IQ | 19.20 | 6.34 | 4.660 | 0.71 | 30.0 | 19.0 |
| HCP 1925-IQ | 19.25 | 6.34 | 4.660 | 0.71 | 30.0 | 19.0 |
| HCP 1927-IQ | 19.27 | 6.34 | 4.660 | 0.71 | 30.0 | 19.0 |
| HCP 193-IQ | 19.30 | 6.34 | 4.660 | 0.71 | 30.0 | 19.0 |
| HCP 194-IQ | 19.40 | 6.34 | 4.660 | 0.71 | 30.0 | 19.0 |
| HCP 195-IQ | 19.50 | 6.34 | 4.660 | 0.71 | 30.0 | 19.0 |
| HCP 196-IQ | 19.60 | 6.34 | 4.660 | 0.71 | 30.0 | 19.0 |
| HCP 197-IQ | 19.70 | 6.34 | 4.660 | 0.71 | 30.0 | 19.0 |
| HCP 198-IQ | 19.80 | 6.34 | 4.660 | 0.71 | 30.0 | 19.0 |
| HCP 199-IQ | 19.90 | 6.34 | 4.660 | 0.71 | 30.0 | 19.0 |
| HCP 200-IQ | 20.00 | 6.79 | 4.810 | 0.57 | 30.0 | 20.0 |
| HCP 201-IQ | 20.10 | 6.79 | 4.810 | 0.57 | 30.0 | 20.0 |
| HCP 202-IQ | 20.20 | 6.79 | 4.810 | 0.57 | 30.0 | 20.0 |
| HCP 203-IQ | 20.30 | 6.79 | 4.810 | 0.57 | 30.0 | 20.0 |
| HCP 204-IQ | 20.40 | 6.79 | 4.810 | 0.57 | 30.0 | 20.0 |
• Усовершенствованное самоцентрирование и высокая чистота обработки • Режимы резания см. на стр. 68-76
(1) Код размера посадочного места
Для инструментов см. страницы: DCN-MM (21) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-8D (17) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • MNC-5D (111) • MNC-7/8D (112) • DCNT (M8-M24) (168) • MNSNT (358)
