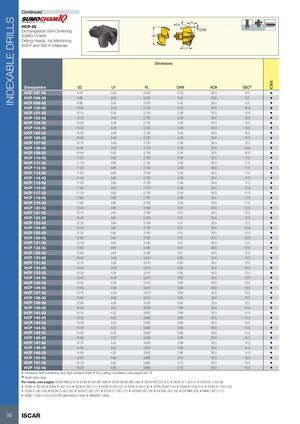

Инструменты для обработки отверстий Iscar 2026 - страница 58
Навигация
Каталог Iscar отрезка 2022
Каталог Iscar крепление инструмента
Токарные инструменты Iscar (часть 2) 2026
Каталог Iscar токарные державки ISO 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
СМЕННЫЕ СПИРАЛИ — Продолжение
HCP-IQ
Сменные самоцентрирующиеся буровые головки SUMO-CHAM для обработки материалов ISO P и ISO K
Размеры
| Обозначение | DC | LF | PL | CHW | KCH | SSC(1) |
|---|---|---|---|---|---|---|
| HCP 097-IQ | 9.70 | 3.55 | 2.250 | 0.45 | 30.0 | 9.0 |
| HCP 098-IQ | 9.80 | 3.55 | 2.250 | 0.45 | 30.0 | 9.0 |
| HCP 099-IQ | 9.90 | 3.55 | 2.250 | 0.45 | 30.0 | 9.0 |
| HCP 100-IQ | 10.00 | 3.48 | 2.720 | 0.49 | 30.0 | 10.0 |
| HCP 101-IQ | 10.10 | 3.48 | 2.720 | 0.49 | 30.0 | 10.0 |
| HCP 102-IQ | 10.20 | 3.48 | 2.720 | 0.49 | 30.0 | 10.0 |
| HCP 103-IQ | 10.30 | 3.48 | 2.720 | 0.49 | 30.0 | 10.0 |
| HCP 104-IQ | 10.40 | 3.48 | 2.720 | 0.49 | 30.0 | 10.0 |
| HCP 105-IQ | 10.50 | 3.48 | 2.720 | 0.49 | 30.0 | 10.0 |
| HCP 106-IQ | 10.60 | 3.48 | 2.720 | 0.49 | 30.0 | 10.0 |
| HCP 107-IQ | 10.70 | 3.48 | 2.720 | 0.49 | 30.0 | 10.0 |
| HCP 108-IQ | 10.80 | 3.48 | 2.720 | 0.49 | 30.0 | 10.0 |
| HCP 109-IQ | 10.90 | 3.48 | 2.720 | 0.49 | 30.0 | 10.0 |
| HCP 110-IQ | 11.00 | 3.85 | 2.750 | 0.49 | 30.0 | 11.0 |
| HCP 111-IQ | 11.10 | 3.85 | 2.750 | 0.49 | 30.0 | 11.0 |
| HCP 112-IQ | 11.20 | 3.85 | 2.750 | 0.49 | 30.0 | 11.0 |
| HCP 113-IQ | 11.30 | 3.85 | 2.750 | 0.49 | 30.0 | 11.0 |
| HCP 114-IQ | 11.40 | 3.85 | 2.750 | 0.49 | 30.0 | 11.0 |
| HCP 115-IQ | 11.50 | 3.85 | 2.750 | 0.49 | 30.0 | 11.0 |
| HCP 116-IQ | 11.60 | 3.85 | 2.750 | 0.49 | 30.0 | 11.0 |
| HCP 117-IQ | 11.70 | 3.85 | 2.750 | 0.49 | 30.0 | 11.0 |
| HCP 118-IQ | 11.80 | 3.85 | 2.750 | 0.49 | 30.0 | 11.0 |
| HCP 119-IQ | 11.90 | 3.85 | 2.750 | 0.49 | 30.0 | 11.0 |
| HCP 120-IQ | 12.00 | 3.84 | 3.160 | 0.51 | 30.0 | 12.0 |
| HCP 121-IQ | 12.10 | 3.84 | 3.160 | 0.51 | 30.0 | 12.0 |
| HCP 122-IQ | 12.20 | 3.84 | 3.160 | 0.51 | 30.0 | 12.0 |
| HCP 123-IQ | 12.30 | 3.84 | 3.160 | 0.51 | 30.0 | 12.0 |
| HCP 124-IQ | 12.40 | 3.84 | 3.160 | 0.51 | 30.0 | 12.0 |
| HCP 125-IQ | 12.50 | 3.84 | 3.160 | 0.51 | 30.0 | 12.0 |
| HCP 126-IQ | 12.60 | 3.84 | 3.160 | 0.51 | 30.0 | 12.0 |
| HCP 127-IQ | 12.70 | 3.84 | 3.160 | 0.51 | 30.0 | 12.0 |
| HCP 128-IQ | 12.80 | 3.84 | 3.160 | 0.51 | 30.0 | 12.0 |
| HCP 129-IQ | 12.90 | 3.84 | 3.160 | 0.51 | 30.0 | 12.0 |
| HCP 130-IQ | 13.00 | 4.09 | 3.510 | 0.60 | 30.0 | 13.0 |
| HCP 131-IQ | 13.10 | 4.09 | 3.510 | 0.60 | 30.0 | 13.0 |
| HCP 132-IQ | 13.20 | 4.09 | 3.510 | 0.60 | 30.0 | 13.0 |
| HCP 133-IQ | 13.30 | 4.09 | 3.510 | 0.60 | 30.0 | 13.0 |
| HCP 134-IQ | 13.40 | 4.09 | 3.510 | 0.60 | 30.0 | 13.0 |
| HCP 135-IQ | 13.50 | 4.09 | 3.510 | 0.60 | 30.0 | 13.0 |
| HCP 136-IQ | 13.60 | 4.09 | 3.510 | 0.60 | 30.0 | 13.0 |
| HCP 137-IQ | 13.70 | 4.09 | 3.510 | 0.60 | 30.0 | 13.0 |
| HCP 138-IQ | 13.80 | 4.09 | 3.510 | 0.60 | 30.0 | 13.0 |
| HCP 139-IQ | 13.90 | 4.09 | 3.510 | 0.60 | 30.0 | 13.0 |
| HCP 140-IQ | 14.00 | 4.52 | 3.630 | 0.66 | 30.0 | 14.0 |
| HCP 141-IQ | 14.10 | 4.52 | 3.630 | 0.66 | 30.0 | 14.0 |
| HCP 142-IQ | 14.20 | 4.52 | 3.630 | 0.66 | 30.0 | 14.0 |
| HCP 143-IQ | 14.30 | 4.52 | 3.630 | 0.66 | 30.0 | 14.0 |
| HCP 144-IQ | 14.40 | 4.52 | 3.630 | 0.66 | 30.0 | 14.0 |
| HCP 145-IQ | 14.50 | 4.52 | 3.630 | 0.66 | 30.0 | 14.0 |
| HCP 146-IQ | 14.60 | 4.52 | 3.630 | 0.66 | 30.0 | 14.0 |
| HCP 147-IQ | 14.70 | 4.52 | 3.630 | 0.66 | 30.0 | 14.0 |
| HCP 148-IQ | 14.80 | 4.52 | 3.630 | 0.66 | 30.0 | 14.0 |
| HCP 149-IQ | 14.90 | 4.52 | 3.630 | 0.66 | 30.0 | 14.0 |
| HCP 150-IQ | 15.00 | 4.85 | 3.880 | 0.73 | 30.0 | 15.0 |
| HCP 151-IQ | 15.10 | 4.85 | 3.880 | 0.73 | 30.0 | 15.0 |
| HCP 152-IQ | 15.20 | 4.85 | 3.880 | 0.73 | 30.0 | 15.0 |
• Усовершенствованное самоцентрирование и высокая чистота обработки • Режимы резания см. на стр. 68-76
(1) Код размера посадочного места
Для инструментов см. страницы: DCN-MM (21) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-8D (17) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • MNC-5D (111) • MNC-7/8D (112) • DCNT (M8-M24) (168) • MNSNT (358)
