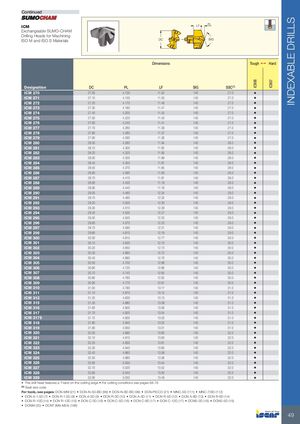

СМЕННЫЕ БУРОВЫЕ ГОЛОВКИ Продолжение
ICM Сменные SUMO-CHAM буровые головки для обработки материалов ISO M и ISO S
Размеры
| Обозначение | DC | PL | LF | SIG | SSC(1) | Вариант материала | |
|---|---|---|---|---|---|---|---|
| Tough 1 IC908 |
Hard IC907 |
||||||
| ICM 270 | 27.00 | 4.130 | 11.52 | 140 | 27.0 | • | |
| ICM 271 | 27.10 | 4.150 | 11.50 | 140 | 27.0 | • | |
| ICM 272 | 27.20 | 4.170 | 11.48 | 140 | 27.0 | • | |
| ICM 273 | 27.30 | 4.180 | 11.47 | 140 | 27.0 | • | |
| ICM 274 | 27.40 | 4.200 | 11.45 | 140 | 27.0 | • | |
| ICM 275 | 27.50 | 4.220 | 11.43 | 140 | 27.0 | • | |
| ICM 276 | 27.60 | 4.240 | 11.41 | 140 | 27.0 | • | |
| ICM 277 | 27.70 | 4.260 | 11.39 | 140 | 27.0 | • | |
| ICM 278 | 27.80 | 4.280 | 11.37 | 140 | 27.0 | • | |
| ICM 279 | 27.90 | 4.290 | 11.36 | 140 | 27.0 | • | |
| ICM 280 | 28.00 | 4.280 | 11.94 | 140 | 28.0 | • | |
| ICM 281 | 28.10 | 4.300 | 11.92 | 140 | 28.0 | • | |
| ICM 282 | 28.20 | 4.320 | 11.90 | 140 | 28.0 | • | |
| ICM 283 | 28.30 | 4.330 | 11.89 | 140 | 28.0 | • | |
| ICM 284 | 28.40 | 4.350 | 11.87 | 140 | 28.0 | • | |
| ICM 285 | 28.50 | 4.370 | 11.85 | 140 | 28.0 | • | |
| ICM 286 | 28.60 | 4.390 | 11.83 | 140 | 28.0 | • | |
| ICM 287 | 28.70 | 4.410 | 11.81 | 140 | 28.0 | • | |
| ICM 288 | 28.80 | 4.430 | 11.79 | 140 | 28.0 | • | |
| ICM 289 | 28.90 | 4.440 | 11.78 | 140 | 28.0 | • | |
| ICM 290 | 29.00 | 4.460 | 12.34 | 140 | 29.0 | • | |
| ICM 291 | 29.10 | 4.480 | 12.32 | 140 | 29.0 | • | |
| ICM 292 | 29.20 | 4.500 | 12.30 | 140 | 29.0 | • | |
| ICM 293 | 29.30 | 4.510 | 12.29 | 140 | 29.0 | • | |
| ICM 294 | 29.40 | 4.530 | 12.27 | 140 | 29.0 | • | |
| ICM 295 | 29.50 | 4.550 | 12.25 | 140 | 29.0 | • | |
| ICM 296 | 29.60 | 4.570 | 12.23 | 140 | 29.0 | • | |
| ICM 297 | 29.70 | 4.590 | 12.21 | 140 | 29.0 | • | |
| ICM 298 | 29.80 | 4.610 | 12.19 | 140 | 29.0 | • | |
| ICM 300 | 30.00 | 4.610 | 12.77 | 140 | 30.0 | • | |
| ICM 301 | 30.10 | 4.630 | 12.75 | 140 | 30.0 | • | |
| ICM 302 | 30.20 | 4.650 | 12.73 | 140 | 30.0 | • | |
| ICM 303 | 30.30 | 4.660 | 12.72 | 140 | 30.0 | • | |
| ICM 304 | 30.40 | 4.680 | 12.70 | 140 | 30.0 | • | |
| ICM 305 | 30.50 | 4.700 | 12.68 | 140 | 30.0 | • | |
| ICM 306 | 30.60 | 4.720 | 12.66 | 140 | 30.0 | • | |
| ICM 307 | 30.70 | 4.740 | 12.64 | 140 | 30.0 | • | |
| ICM 308 | 30.80 | 4.760 | 12.62 | 140 | 30.0 | • | |
| ICM 309 | 30.90 | 4.770 | 12.61 | 140 | 30.0 | • | |
| ICM 310 | 31.00 | 4.790 | 13.17 | 140 | 31.0 | • | |
| ICM 311 | 31.10 | 4.810 | 13.15 | 140 | 31.0 | • | |
| ICM 312 | 31.20 | 4.830 | 13.13 | 140 | 31.0 | • | |
| ICM 315 | 31.50 | 4.880 | 13.08 | 140 | 31.0 | • | |
| ICM 316 | 31.60 | 4.900 | 13.06 | 140 | 31.0 | • | |
| ICM 317 | 31.70 | 4.920 | 13.04 | 140 | 31.0 | • | |
| ICM 3175 | 31.75 | 4.930 | 13.03 | 140 | 31.0 | • | |
| ICM 318 | 31.80 | 4.940 | 13.02 | 140 | 31.0 | • | |
| ICM 319 | 31.90 | 4.950 | 13.01 | 140 | 31.0 | • | |
| ICM 320 | 32.00 | 4.890 | 13.65 | 140 | 32.0 | • | |
| ICM 321 | 32.10 | 4.910 | 13.63 | 140 | 32.0 | • | |
| ICM 322 | 32.20 | 4.930 | 13.61 | 140 | 32.0 | • | |
| ICM 323 | 32.30 | 4.940 | 13.60 | 140 | 32.0 | • | |
| ICM 324 | 32.40 | 4.960 | 13.58 | 140 | 32.0 | • | |
| ICM 325 | 32.50 | 4.980 | 13.56 | 140 | 32.0 | • | |
| ICM 326 | 32.60 | 5.000 | 13.54 | 140 | 32.0 | • | |
| ICM 327 | 32.70 | 5.020 | 13.52 | 140 | 32.0 | • | |
| ICM 328 | 32.80 | 5.040 | 13.50 | 140 | 32.0 | • | |
| ICM 329 | 32.90 | 5.050 | 13.49 | 140 | 32.0 | • | |
- Буровая головка имеет Т-площадку на режущей кромке
- Условия резания см. стр. 68-76
(1) Код размера посадочного места
Инструменты см. на стр.: DCN-MM (21) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21) • MNC-5D (111) • MNC-7/8D (112) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-8D (17) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • DCNT (M8-M24) (168)
