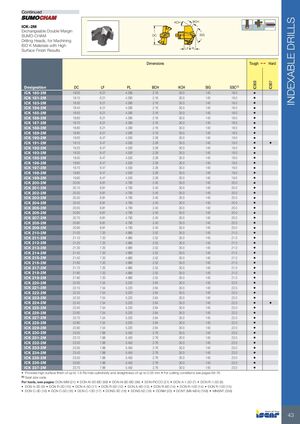

СМЕННЫЕ БУРОВЫЕ ГОЛОВКИ
ICK-2M
Сменные буровые головки с двойной кромкой SUMO-CHAM для обработки материалов ISO K с высокой чистотой поверхности
| Обозначение | DC | LF | PL | BCH | KCH | SIG | SSC(1) | IC908 | IC907 |
|---|---|---|---|---|---|---|---|---|---|
| ICK 180-2M | 18.00 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 181-2M | 18.10 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 183-2M | 18.30 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 184-2M | 18.40 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 185-2M | 18.50 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 186-2M | 18.60 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 187-2M | 18.70 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 188-2M | 18.80 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 189-2M | 18.90 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 190-2M | 19.00 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 191-2M | 19.10 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | • |
| ICK 192-2M | 19.20 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 193-2M | 19.30 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 195-2M | 19.50 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 196-2M | 19.60 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 197-2M | 19.70 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 198-2M | 19.80 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 199-2M | 19.90 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 200-2M | 20.00 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 201-2M | 20.10 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 202-2M | 20.20 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 203-2M | 20.30 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 204-2M | 20.40 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 205-2M | 20.50 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 206-2M | 20.60 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 207-2M | 20.70 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 208-2M | 20.80 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 209-2M | 20.90 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 210-2M | 21.00 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 211-2M | 21.10 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 212-2M | 21.20 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 213-2M | 21.30 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 214-2M | 21.40 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 215-2M | 21.50 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 216-2M | 21.60 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 217-2M | 21.70 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 218-2M | 21.80 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 219-2M | 21.90 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 220-2M | 22.00 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 221-2M | 22.10 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 222-2M | 22.20 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 223-2M | 22.30 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 224-2M | 22.40 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | • |
| ICK 225-2M | 22.50 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 226-2M | 22.60 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 227-2M | 22.70 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 228-2M | 22.80 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 229-2M | 22.90 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 230-2M | 23.00 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | |
| ICK 231-2M | 23.10 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | |
| ICK 232-2M | 23.20 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | |
| ICK 233-2M | 23.30 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | |
| ICK 234-2M | 23.40 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | |
| ICK 235-2M | 23.50 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | |
| ICK 236-2M | 23.60 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | |
| ICK 237-2M | 23.70 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • |
- Обеспечивает высокую чистоту поверхности до 1,6 Ra, цилиндричность отверстия и прямолинейность до 0,05 мм
- Условия резания см. на стр. 68-76
(1) Код размера посадочного места
Режущие пластины, см. стр.: DCN-MM (21) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • DCNT (M8-M24) (168) • MNSNT (358)
