СМЕННЫЕ СВЕРЛА. Продолжение

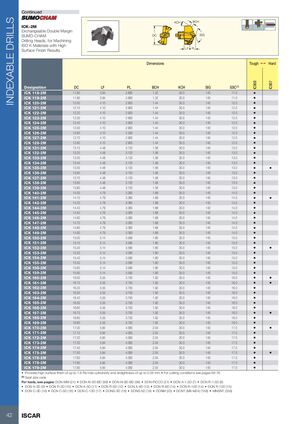

ICK-2M — Сменные головки сверления с двойными кромками SUMO-CHAM для обработки материалов ISO K с высокими результатами качества поверхности
| Обозначение | DC | LF | PL | BCH | KCH | SIG | SSC(1) | IC908 | IC907 |
|---|---|---|---|---|---|---|---|---|---|
| ICK 118-2M | 11.80 | 3.94 | 2.660 | 1.32 | 30.0 | 140 | 11.0 | • | |
| ICK 119-2M | 11.90 | 3.94 | 2.660 | 1.32 | 30.0 | 140 | 11.0 | • | |
| ICK 120-2M | 12.00 | 4.10 | 2.900 | 1.44 | 30.0 | 140 | 12.0 | • | |
| ICK 121-2M | 12.10 | 4.10 | 2.900 | 1.44 | 30.0 | 140 | 12.0 | • | |
| ICK 122-2M | 12.20 | 4.10 | 2.900 | 1.44 | 30.0 | 140 | 12.0 | • | |
| ICK 123-2M | 12.30 | 4.10 | 2.900 | 1.44 | 30.0 | 140 | 12.0 | • | |
| ICK 124-2M | 12.40 | 4.10 | 2.900 | 1.44 | 30.0 | 140 | 12.0 | • | |
| ICK 125-2M | 12.50 | 4.10 | 2.900 | 1.44 | 30.0 | 140 | 12.0 | • | |
| ICK 126-2M | 12.60 | 4.10 | 2.290 | 1.44 | 30.0 | 140 | 12.0 | • | |
| ICK 127-2M | 12.70 | 4.10 | 2.900 | 1.44 | 30.0 | 140 | 12.0 | • | |
| ICK 128-2M | 12.80 | 4.10 | 2.900 | 1.44 | 30.0 | 140 | 12.0 | • | |
| ICK 131-2M | 13.10 | 4.48 | 3.120 | 1.56 | 30.0 | 140 | 13.0 | • | |
| ICK 132-2M | 13.20 | 4.48 | 3.120 | 1.56 | 30.0 | 140 | 13.0 | • | |
| ICK 133-2M | 13.30 | 4.48 | 3.120 | 1.56 | 30.0 | 140 | 13.0 | • | |
| ICK 134-2M | 13.40 | 4.48 | 3.120 | 1.56 | 30.0 | 140 | 13.0 | • | |
| ICK 135-2M | 13.50 | 4.48 | 3.120 | 1.56 | 30.0 | 140 | 13.0 | • | • |
| ICK 136-2M | 13.60 | 4.48 | 3.120 | 1.56 | 30.0 | 140 | 13.0 | • | |
| ICK 137-2M | 13.70 | 4.48 | 3.120 | 1.56 | 30.0 | 140 | 13.0 | • | |
| ICK 138-2M | 13.80 | 4.48 | 3.120 | 1.56 | 30.0 | 140 | 13.0 | • | |
| ICK 139-2M | 13.90 | 4.48 | 3.120 | 1.56 | 30.0 | 140 | 13.0 | • | |
| ICK 140-2M | 14.00 | 4.79 | 3.360 | 1.68 | 30.0 | 140 | 14.0 | • | |
| ICK 141-2M | 14.10 | 4.79 | 3.360 | 1.68 | 30.0 | 140 | 14.0 | • | • |
| ICK 142-2M | 14.20 | 4.79 | 3.360 | 1.68 | 30.0 | 140 | 14.0 | • | |
| ICK 144-2M | 14.40 | 4.79 | 3.360 | 1.68 | 30.0 | 140 | 14.0 | • | |
| ICK 145-2M | 14.50 | 4.79 | 3.360 | 1.68 | 30.0 | 140 | 14.0 | • | |
| ICK 146-2M | 14.60 | 4.79 | 3.360 | 1.68 | 30.0 | 140 | 14.0 | • | |
| ICK 147-2M | 14.70 | 4.79 | 3.360 | 1.68 | 30.0 | 140 | 14.0 | • | |
| ICK 148-2M | 14.80 | 4.79 | 3.360 | 1.68 | 30.0 | 140 | 14.0 | • | |
| ICK 149-2M | 14.90 | 4.79 | 3.360 | 1.68 | 30.0 | 140 | 14.0 | • | |
| ICK 150-2M | 15.00 | 5.14 | 3.590 | 1.80 | 30.0 | 140 | 15.0 | • | |
| ICK 151-2M | 15.10 | 5.14 | 3.590 | 1.80 | 30.0 | 140 | 15.0 | • | |
| ICK 152-2M | 15.20 | 5.14 | 3.590 | 1.80 | 30.0 | 140 | 15.0 | • | • |
| ICK 153-2M | 15.30 | 5.14 | 3.590 | 1.80 | 30.0 | 140 | 15.0 | • | |
| ICK 154-2M | 15.40 | 5.14 | 3.590 | 1.80 | 30.0 | 140 | 15.0 | • | |
| ICK 155-2M | 15.50 | 5.14 | 3.590 | 1.80 | 30.0 | 140 | 15.0 | • | |
| ICK 156-2M | 15.60 | 5.14 | 3.590 | 1.80 | 30.0 | 140 | 15.0 | • | |
| ICK 159-2M | 15.90 | 5.14 | 3.590 | 1.80 | 30.0 | 140 | 15.0 | • | |
| ICK 160-2M | 16.00 | 5.55 | 3.750 | 1.92 | 30.0 | 140 | 16.0 | • | • |
| ICK 161-2M | 16.10 | 5.55 | 3.750 | 1.92 | 30.0 | 140 | 16.0 | • | • |
| ICK 162-2M | 16.20 | 5.55 | 3.750 | 1.92 | 30.0 | 140 | 16.0 | • | |
| ICK 163-2M | 16.30 | 5.55 | 3.750 | 1.92 | 30.0 | 140 | 16.0 | • | |
| ICK 164-2M | 16.40 | 5.55 | 3.750 | 1.92 | 30.0 | 140 | 16.0 | • | |
| ICK 165-2M | 16.50 | 5.55 | 3.750 | 1.92 | 30.0 | 140 | 16.0 | • | |
| ICK 166-2M | 16.60 | 5.55 | 3.750 | 1.92 | 30.0 | 140 | 16.0 | • | |
| ICK 167-2M | 16.70 | 5.55 | 3.750 | 1.92 | 30.0 | 140 | 16.0 | • | • |
| ICK 168-2M | 16.80 | 5.55 | 3.750 | 1.92 | 30.0 | 140 | 16.0 | • | |
| ICK 169-2M | 16.90 | 5.55 | 3.750 | 1.92 | 30.0 | 140 | 16.0 | • | |
| ICK 170-2M | 17.00 | 5.84 | 4.060 | 2.04 | 30.0 | 140 | 17.0 | • | • |
| ICK 171-2M | 17.10 | 5.84 | 4.060 | 2.04 | 30.0 | 140 | 17.0 | • | |
| ICK 172-2M | 17.20 | 5.84 | 4.060 | 2.04 | 30.0 | 140 | 17.0 | • | |
| ICK 173-2M | 17.30 | 5.84 | 4.060 | 2.04 | 30.0 | 140 | 17.0 | • | |
| ICK 174-2M | 17.40 | 5.84 | 4.060 | 2.04 | 30.0 | 140 | 17.0 | • | |
| ICK 175-2M | 17.50 | 5.84 | 4.060 | 2.04 | 30.0 | 140 | 17.0 | • | • |
| ICK 176-2M | 17.60 | 5.84 | 4.060 | 2.04 | 30.0 | 140 | 17.0 | • | |
| ICK 178-2M | 17.80 | 5.84 | 4.060 | 2.04 | 30.0 | 140 | 17.0 | • | |
| ICK 179-2M | 17.90 | 5.84 | 4.060 | 2.04 | 30.0 | 140 | 17.0 | • |
• Обеспечивает высокое качество поверхности скважины до 1,6 Ra, цилиндричность и прямолинейность скважины до 0,05 мм • Условия резания см. на страницах 68–76
(1) Код размера посадки
Инструменты см. на страницах: DCN-MM (21) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • DCNT (M8-M24) (168) • MNSNT (358)
