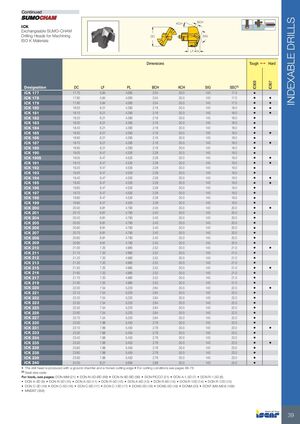

СМЕННЫЕ СВЕРЛА. Продолжение
Сменные головки сверления SUMO-CHAM для обработки материалов ISO K
| Обозначение | DC | LF | PL | BCH | KCH | SIG | SSC(1) | IC908 | IC907 |
|---|---|---|---|---|---|---|---|---|---|
| ICK 177 | 17.70 | 5.84 | 4.060 | 2.04 | 30.0 | 140 | 17.0 | • | |
| ICK 178 | 17.80 | 5.84 | 4.060 | 2.04 | 30.0 | 140 | 17.0 | • | • |
| ICK 179 | 17.90 | 5.84 | 4.060 | 2.04 | 30.0 | 140 | 17.0 | • | • |
| ICK 180 | 18.00 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | • |
| ICK 181 | 18.10 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | • |
| ICK 182 | 18.20 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 183 | 18.30 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 184 | 18.40 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 185 | 18.50 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | • |
| ICK 186 | 18.60 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 187 | 18.70 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | • |
| ICK 189 | 18.90 | 6.21 | 4.290 | 2.16 | 30.0 | 140 | 18.0 | • | |
| ICK 190 | 19.00 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 1905 | 19.05 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | • |
| ICK 191 | 19.10 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | • |
| ICK 192 | 19.20 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 193 | 19.30 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 194 | 19.40 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | • |
| ICK 195 | 19.50 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | • |
| ICK 196 | 19.60 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 197 | 19.70 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 198 | 19.80 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 199 | 19.90 | 6.47 | 4.530 | 2.28 | 30.0 | 140 | 19.0 | • | |
| ICK 200 | 20.00 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | • |
| ICK 201 | 20.10 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 204 | 20.40 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 205 | 20.50 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 206 | 20.60 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 207 | 20.70 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 208 | 20.80 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 209 | 20.90 | 6.81 | 4.790 | 2.40 | 30.0 | 140 | 20.0 | • | |
| ICK 210 | 21.00 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | • |
| ICK 211 | 21.10 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 212 | 21.20 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 213 | 21.30 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 215 | 21.50 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | • |
| ICK 216 | 21.60 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 217 | 21.70 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 219 | 21.90 | 7.20 | 4.980 | 2.52 | 30.0 | 140 | 21.0 | • | |
| ICK 220 | 22.00 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | • |
| ICK 221 | 22.10 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 222 | 22.20 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 223 | 22.30 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 225 | 22.50 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 226 | 22.60 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 227 | 22.70 | 7.54 | 5.220 | 2.64 | 30.0 | 140 | 22.0 | • | |
| ICK 230 | 23.00 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | |
| ICK 231 | 23.10 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | • |
| ICK 233 | 23.30 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | |
| ICK 234 | 23.40 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | |
| ICK 235 | 23.50 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | • |
| ICK 236 | 23.60 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | |
| ICK 238 | 23.80 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | |
| ICK 239 | 23.90 | 7.88 | 5.450 | 2.76 | 30.0 | 140 | 23.0 | • | |
| ICK 240 | 24.00 | 8.21 | 5.690 | 2.88 | 30.0 | 140 | 24.0 | • |
• Головка сверла изготавливается со шлифованной фаской и заточенным режущим ребром • Условия резания см. на страницах 68–76
(1) Код размера посадки
Инструменты см. на страницах: DCN-MM (21) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-8D (17) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • DCNT (M8-M24) (168) • MNSNT (358)
