Сборные сверла

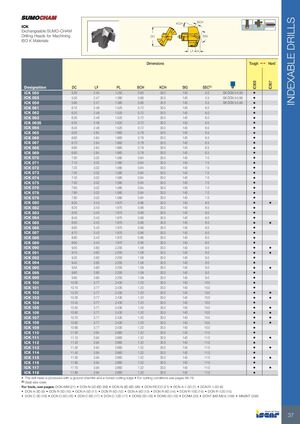

ICK — Сменные головки для сверления SUMO-CHAM
Для обработки материалов ISO K
Размеры
| Обозначение | DC | LF | PL | BCH | KCH | SIG | SSC(1) | IC908 (Прочный) |
IC907 (Твёрдый) |
|---|---|---|---|---|---|---|---|---|---|
| ICK 050 | 5.00 | 2.45 | 1.250 | 0.60 | 30.0 | 140 | 5.0 | SK DCN 5-5.99 | • |
| ICK 055 | 5.50 | 2.47 | 1.380 | 0.66 | 30.0 | 140 | 5.5 | SK DCN 5-5.99 | • |
| ICK 059 | 5.90 | 2.47 | 1.380 | 0.66 | 30.0 | 140 | 5.5 | SK DCN 5-5.99 | • |
| ICK 061 | 6.10 | 2.48 | 1.520 | 0.72 | 30.0 | 140 | 6.0 | • | |
| ICK 062 | 6.20 | 2.48 | 1.520 | 0.72 | 30.0 | 140 | 6.0 | • | |
| ICK 063 | 6.30 | 2.48 | 1.520 | 0.72 | 30.0 | 140 | 6.0 | • | |
| ICK 0635 | 6.35 | 2.48 | 1.520 | 0.72 | 30.0 | 140 | 6.0 | • | |
| ICK 064 | 6.40 | 2.48 | 1.520 | 0.72 | 30.0 | 140 | 6.0 | • | |
| ICK 065 | 6.50 | 2.64 | 1.660 | 0.78 | 30.0 | 140 | 6.5 | • | |
| ICK 066 | 6.60 | 2.64 | 1.660 | 0.78 | 30.0 | 140 | 6.5 | • | |
| ICK 067 | 6.70 | 2.64 | 1.660 | 0.78 | 30.0 | 140 | 6.5 | • | |
| ICK 068 | 6.80 | 2.64 | 1.660 | 0.78 | 30.0 | 140 | 6.5 | • | |
| ICK 069 | 6.90 | 2.64 | 1.660 | 0.78 | 30.0 | 140 | 6.5 | • | |
| ICK 070 | 7.00 | 3.02 | 1.580 | 0.84 | 30.0 | 140 | 7.0 | • | |
| ICK 071 | 7.10 | 3.02 | 1.580 | 0.84 | 30.0 | 140 | 7.0 | • | |
| ICK 072 | 7.20 | 3.02 | 1.580 | 0.84 | 30.0 | 140 | 7.0 | • | |
| ICK 073 | 7.30 | 3.02 | 1.580 | 0.84 | 30.0 | 140 | 7.0 | • | |
| ICK 074 | 7.40 | 3.02 | 1.580 | 0.84 | 30.0 | 140 | 7.0 | • | |
| ICK 075 | 7.50 | 3.02 | 1.580 | 0.84 | 30.0 | 140 | 7.0 | • | |
| ICK 076 | 7.60 | 3.02 | 1.580 | 0.84 | 30.0 | 140 | 7.0 | • | |
| ICK 078 | 7.80 | 3.02 | 1.580 | 0.84 | 30.0 | 140 | 7.0 | • | |
| ICK 079 | 7.90 | 3.02 | 1.580 | 0.84 | 30.0 | 140 | 7.0 | • | |
| ICK 080 | 8.00 | 3.43 | 1.970 | 0.96 | 30.0 | 140 | 8.0 | • | |
| ICK 082 | 8.20 | 3.43 | 1.970 | 0.96 | 30.0 | 140 | 8.0 | • | |
| ICK 083 | 8.30 | 3.43 | 1.970 | 0.96 | 30.0 | 140 | 8.0 | • | |
| ICK 084 | 8.40 | 3.43 | 1.970 | 0.96 | 30.0 | 140 | 8.0 | • | |
| ICK 085 | 8.50 | 3.43 | 1.970 | 0.96 | 30.0 | 140 | 8.0 | • | |
| ICK 086 | 8.60 | 3.43 | 1.970 | 0.96 | 30.0 | 140 | 8.0 | • | |
| ICK 087 | 8.70 | 3.43 | 1.970 | 0.96 | 30.0 | 140 | 8.0 | • | |
| ICK 088 | 8.80 | 3.43 | 1.970 | 0.96 | 30.0 | 140 | 8.0 | • | |
| ICK 089 | 8.90 | 3.43 | 1.970 | 0.96 | 30.0 | 140 | 8.0 | • | |
| ICK 090 | 9.00 | 3.60 | 2.200 | 1.08 | 30.0 | 140 | 9.0 | • | |
| ICK 091 | 9.10 | 3.60 | 2.200 | 1.08 | 30.0 | 140 | 9.0 | • | |
| ICK 092 | 9.20 | 3.60 | 2.200 | 1.08 | 30.0 | 140 | 9.0 | • | |
| ICK 094 | 9.40 | 3.60 | 2.200 | 1.08 | 30.0 | 140 | 9.0 | • | |
| ICK 095 | 9.50 | 3.60 | 2.200 | 1.08 | 30.0 | 140 | 9.0 | • | |
| ICK 098 | 9.80 | 3.60 | 2.200 | 1.08 | 30.0 | 140 | 9.0 | • | |
| ICK 099 | 9.90 | 3.60 | 2.200 | 1.08 | 30.0 | 140 | 9.0 | • | |
| ICK 100 | 10.00 | 3.77 | 2.430 | 1.20 | 30.0 | 140 | 10.0 | • | |
| ICK 101 | 10.10 | 3.77 | 2.430 | 1.20 | 30.0 | 140 | 10.0 | • | |
| ICK 102 | 10.20 | 3.77 | 2.430 | 1.20 | 30.0 | 140 | 10.0 | • | |
| ICK 103 | 10.30 | 3.77 | 2.430 | 1.20 | 30.0 | 140 | 10.0 | • | |
| ICK 104 | 10.40 | 3.77 | 2.430 | 1.20 | 30.0 | 140 | 10.0 | • | |
| ICK 105 | 10.50 | 3.77 | 2.430 | 1.20 | 30.0 | 140 | 10.0 | • | |
| ICK 106 | 10.60 | 3.77 | 2.430 | 1.20 | 30.0 | 140 | 10.0 | • | |
| ICK 107 | 10.70 | 3.77 | 2.430 | 1.20 | 30.0 | 140 | 10.0 | • | |
| ICK 108 | 10.80 | 3.77 | 2.430 | 1.20 | 30.0 | 140 | 10.0 | • | |
| ICK 109 | 10.90 | 3.77 | 2.430 | 1.20 | 30.0 | 140 | 10.0 | • | |
| ICK 110 | 11.00 | 3.94 | 2.660 | 1.32 | 30.0 | 140 | 11.0 | • | |
| ICK 111 | 11.10 | 3.94 | 2.660 | 1.32 | 30.0 | 140 | 11.0 | • | |
| ICK 112 | 11.20 | 3.94 | 2.660 | 1.32 | 30.0 | 140 | 11.0 | • | |
| ICK 113 | 11.30 | 3.94 | 2.660 | 1.32 | 30.0 | 140 | 11.0 | • | |
| ICK 114 | 11.40 | 3.94 | 2.660 | 1.32 | 30.0 | 140 | 11.0 | • | |
| ICK 115 | 11.50 | 3.94 | 2.660 | 1.32 | 30.0 | 140 | 11.0 | • | |
| ICK 116 | 11.60 | 3.94 | 2.660 | 1.32 | 30.0 | 140 | 11.0 | • | |
| ICK 117 | 11.70 | 3.94 | 2.660 | 1.32 | 30.0 | 140 | 11.0 | • | |
| ICK 118 | 11.80 | 3.94 | 2.660 | 1.32 | 30.0 | 140 | 11.0 | • |
Головка сверла производится со шлифованной фаской и затачиваемым режущим краем • Условия резания см. на страницах 68-76
(1) Код размера посадочного места
Инструмент см. на страницах: DCN-MM (21) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-8D (17) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • DCNT (M8-M24) (168) • MNSNT (358)
