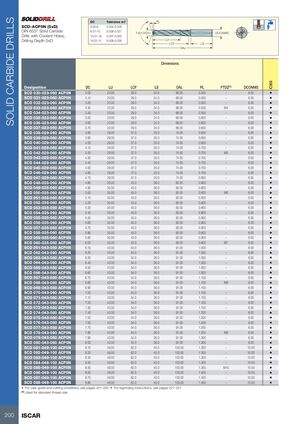

СВЕРЛА ИЗ ТВЕРДОГО СПЛАВА
SCD-ACP5N (5xD)
DIN 6537 Сверла из твердого сплава с каналами подвода охлаждающей жидкости, глубина сверления 5xD
Допуск m7:
- 3.00–6: 0.004–0.016
- 6.01–10: 0.008–0.021
- 10.01–18: 0.007–0.025
- 18.01–21: 0.008–0.029
Угол: 140° DCm7
Размеры
| Обозначение | DC | LU | LCF | LS | OAL | PL | FTDZ(1) | DCONMS | IC908 |
|---|---|---|---|---|---|---|---|---|---|
| SCD 030-023-060 ACP5N | 3.00 | 23.00 | 29.0 | 34.0 | 66.00 | 0.500 | – | 6.00 | • |
| SCD 031-023-060 ACP5N | 3.10 | 23.00 | 29.0 | 34.0 | 66.00 | 0.500 | – | 6.00 | • |
| SCD 032-023-060 ACP5N | 3.20 | 23.00 | 29.0 | 34.0 | 66.00 | 0.500 | – | 6.00 | • |
| SCD 033-023-060 ACP5N | 3.30 | 23.00 | 29.0 | 34.0 | 66.00 | 0.500 | M4 | 6.00 | • |
| SCD 034-023-060 ACP5N | 3.40 | 23.00 | 29.0 | 34.0 | 66.00 | 0.500 | – | 6.00 | • |
| SCD 035-023-060 ACP5N | 3.50 | 23.00 | 29.0 | 34.0 | 66.00 | 0.600 | – | 6.00 | • |
| SCD 036-023-060 ACP5N | 3.60 | 23.00 | 29.0 | 34.0 | 66.00 | 0.600 | – | 6.00 | • |
| SCD 037-023-060 ACP5N | 3.70 | 23.00 | 29.0 | 34.0 | 66.00 | 0.600 | – | 6.00 | • |
| SCD 038-029-060 ACP5N | 3.80 | 29.00 | 37.0 | 35.0 | 74.00 | 0.600 | – | 6.00 | • |
| SCD 039-029-060 ACP5N | 3.90 | 29.00 | 37.0 | 35.0 | 74.00 | 0.600 | – | 6.00 | • |
| SCD 040-029-060 ACP5N | 4.00 | 29.00 | 37.0 | 35.0 | 74.00 | 0.600 | – | 6.00 | • |
| SCD 041-029-060 ACP5N | 4.10 | 29.00 | 37.0 | 35.0 | 74.00 | 0.700 | – | 6.00 | • |
| SCD 042-029-060 ACP5N | 4.20 | 29.00 | 37.0 | 35.0 | 74.00 | 0.700 | M5 | 6.00 | • |
| SCD 043-029-060 ACP5N | 4.30 | 29.00 | 37.0 | 35.0 | 74.00 | 0.700 | – | 6.00 | • |
| SCD 044-029-060 ACP5N | 4.40 | 29.00 | 37.0 | 35.0 | 74.00 | 0.700 | – | 6.00 | • |
| SCD 045-029-060 ACP5N | 4.50 | 29.00 | 37.0 | 35.0 | 74.00 | 0.700 | – | 6.00 | • |
| SCD 046-029-060 ACP5N | 4.60 | 29.00 | 37.0 | 35.0 | 74.00 | 0.700 | – | 6.00 | • |
| SCD 047-029-060 ACP5N | 4.70 | 29.00 | 37.0 | 35.0 | 74.00 | 0.800 | – | 6.00 | • |
| SCD 048-035-060 ACP5N | 4.80 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | – | 6.00 | • |
| SCD 049-035-060 ACP5N | 4.90 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | – | 6.00 | • |
| SCD 050-035-060 ACP5N | 5.00 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | M6 | 6.00 | • |
| SCD 051-035-060 ACP5N | 5.10 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | – | 6.00 | • |
| SCD 052-035-060 ACP5N | 5.20 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | – | 6.00 | • |
| SCD 053-035-060 ACP5N | 5.30 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | – | 6.00 | • |
| SCD 054-035-060 ACP5N | 5.40 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | – | 6.00 | • |
| SCD 055-035-060 ACP5N | 5.50 | 35.00 | 45.0 | 36.0 | 82.00 | 0.900 | – | 6.00 | • |
| SCD 056-035-060 ACP5N | 5.60 | 35.00 | 45.0 | 36.0 | 82.00 | 0.900 | – | 6.00 | • |
| SCD 057-035-060 ACP5N | 5.70 | 35.00 | 45.0 | 36.0 | 82.00 | 0.900 | – | 6.00 | • |
| SCD 058-035-060 ACP5N | 5.80 | 35.00 | 45.0 | 36.0 | 82.00 | 0.900 | – | 6.00 | • |
| SCD 059-035-060 ACP5N | 5.90 | 35.00 | 45.0 | 36.0 | 82.00 | 0.900 | – | 6.00 | • |
| SCD 060-035-060 ACP5N | 6.00 | 35.00 | 45.0 | 36.0 | 82.00 | 0.900 | M7 | 6.00 | • |
| SCD 061-043-080 ACP5N | 6.10 | 43.00 | 54.0 | 36.0 | 91.00 | 1.000 | – | 8.00 | • |
| SCD 062-043-080 ACP5N | 6.20 | 43.00 | 54.0 | 36.0 | 91.00 | 1.000 | – | 8.00 | • |
| SCD 063-043-080 ACP5N | 6.30 | 43.00 | 54.0 | 36.0 | 91.00 | 1.000 | – | 8.00 | • |
| SCD 064-043-080 ACP5N | 6.40 | 43.00 | 54.0 | 36.0 | 91.00 | 1.000 | – | 8.00 | • |
| SCD 065-043-080 ACP5N | 6.50 | 43.00 | 54.0 | 36.0 | 91.00 | 1.000 | – | 8.00 | • |
| SCD 066-043-080 ACP5N | 6.60 | 43.00 | 54.0 | 36.0 | 91.00 | 1.000 | – | 8.00 | • |
| SCD 067-043-080 ACP5N | 6.70 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | – | 8.00 | • |
| SCD 068-043-080 ACP5N | 6.80 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | M8 | 8.00 | • |
| SCD 069-043-080 ACP5N | 6.90 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | – | 8.00 | • |
| SCD 070-043-080 ACP5N | 7.00 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | – | 8.00 | • |
| SCD 071-043-080 ACP5N | 7.10 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | – | 8.00 | • |
| SCD 072-043-080 ACP5N | 7.20 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | – | 8.00 | • |
| SCD 073-043-080 ACP5N | 7.30 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | – | 8.00 | • |
| SCD 074-043-080 ACP5N | 7.40 | 43.00 | 54.0 | 36.0 | 91.00 | 1.200 | – | 8.00 | • |
| SCD 075-043-080 ACP5N | 7.50 | 43.00 | 54.0 | 36.0 | 91.00 | 1.200 | – | 8.00 | • |
| SCD 076-043-080 ACP5N | 7.60 | 43.00 | 54.0 | 36.0 | 91.00 | 1.200 | – | 8.00 | • |
| SCD 077-043-080 ACP5N | 7.70 | 43.00 | 54.0 | 36.0 | 91.00 | 1.200 | – | 8.00 | • |
| SCD 078-043-080 ACP5N | 7.80 | 43.00 | 54.0 | 36.0 | 91.00 | 1.200 | M9 | 8.00 | • |
| SCD 079-043-080 ACP5N | 7.90 | 43.00 | 54.0 | 36.0 | 91.00 | 1.300 | – | 8.00 | • |
| SCD 080-043-080 ACP5N | 8.00 | 43.00 | 54.0 | 36.0 | 91.00 | 1.300 | – | 8.00 | • |
| SCD 081-049-100 ACP5N | 8.10 | 49.00 | 62.0 | 40.0 | 103.00 | 1.300 | – | 10.00 | • |
| SCD 082-049-100 ACP5N | 8.20 | 49.00 | 62.0 | 40.0 | 103.00 | 1.300 | – | 10.00 | • |
| SCD 083-049-100 ACP5N | 8.30 | 49.00 | 62.0 | 40.0 | 103.00 | 1.300 | – | 10.00 | • |
| SCD 084-049-100 ACP5N | 8.40 | 49.00 | 62.0 | 40.0 | 103.00 | 1.300 | – | 10.00 | • |
| SCD 085-049-100 ACP5N | 8.50 | 49.00 | 62.0 | 40.0 | 103.00 | 1.300 | M10 | 10.00 | • |
| SCD 086-049-100 ACP5N | 8.60 | 49.00 | 62.0 | 40.0 | 103.00 | 1.400 | – | 10.00 | • |
| SCD 087-049-100 ACP5N | 8.70 | 49.00 | 62.0 | 40.0 | 103.00 | 1.400 | – | 10.00 | • |
| SCD 088-049-100 ACP5N | 8.80 | 49.00 | 62.0 | 40.0 | 103.00 | 1.400 | – | 10.00 | • |
(1) Используется для стандартного размера резьбы
