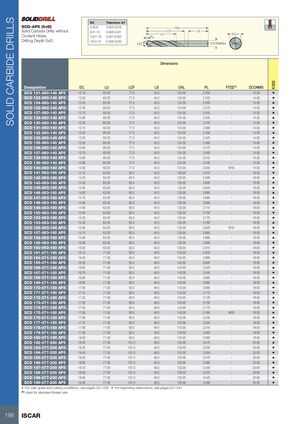

Инструменты для обработки отверстий Iscar 2026 - страница 200
Навигация
Каталог Iscar отрезка 2022
Каталог Iscar крепление инструмента
Токарные инструменты Iscar (часть 2) 2026
Каталог Iscar токарные державки ISO 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Твёрдосплавные свёрла
SCD-AP5 (5xD)
DIN 6537 Твёрдый сплав
Свёрла без каналов подачи охлаждающей жидкости, глубина сверления 5xD
Допуски
| DC | Допуск m7 |
|---|---|
| 3.00–6 | 0.004–0.016 |
| 6.01–10 | 0.008–0.021 |
| 10.01–18 | 0.007–0.025 |
| 18.01–21 | 0.008–0.029 |
Размеры
| Обозначение | DC | LU | LCF | LS | OAL | PL | FTDZ(1) | DCONMS |
|---|---|---|---|---|---|---|---|---|
| SCD 121-060-140 AP5 | 12.10 | 60.00 | 77.0 | 45.0 | 124.00 | 2.200 | – | 14.00 |
| SCD 122-060-140 AP5 | 12.20 | 60.00 | 77.0 | 45.0 | 124.00 | 2.220 | – | 14.00 |
| SCD 124-060-140 AP5 | 12.40 | 60.00 | 77.0 | 45.0 | 124.00 | 2.260 | – | 14.00 |
| SCD 125-060-140 AP5 | 12.50 | 60.00 | 77.0 | 45.0 | 124.00 | 2.270 | – | 14.00 |
| SCD 127-060-140 AP5 | 12.70 | 60.00 | 77.0 | 45.0 | 124.00 | 2.310 | – | 14.00 |
| SCD 128-060-140 AP5 | 12.80 | 60.00 | 77.0 | 45.0 | 124.00 | 2.330 | – | 14.00 |
| SCD 130-060-140 AP5 | 13.00 | 60.00 | 77.0 | 45.0 | 124.00 | 2.370 | – | 14.00 |
| SCD 131-060-140 AP5 | 13.10 | 60.00 | 77.0 | 45.0 | 124.00 | 2.380 | – | 14.00 |
| SCD 132-060-140 AP5 | 13.20 | 60.00 | 77.0 | 45.0 | 124.00 | 2.400 | – | 14.00 |
| SCD 133-060-140 AP5 | 13.30 | 60.00 | 77.0 | 45.0 | 124.00 | 2.420 | – | 14.00 |
| SCD 135-060-140 AP5 | 13.50 | 60.00 | 77.0 | 45.0 | 124.00 | 2.460 | – | 14.00 |
| SCD 136-060-140 AP5 | 13.60 | 60.00 | 77.0 | 45.0 | 124.00 | 2.470 | – | 14.00 |
| SCD 137-060-140 AP5 | 13.70 | 60.00 | 77.0 | 45.0 | 124.00 | 2.490 | – | 14.00 |
| SCD 138-060-140 AP5 | 13.80 | 60.00 | 77.0 | 45.0 | 124.00 | 2.510 | – | 14.00 |
| SCD 139-060-140 AP5 | 13.90 | 60.00 | 77.0 | 45.0 | 124.00 | 2.530 | – | 14.00 |
| SCD 140-060-140 AP5 | 14.00 | 60.00 | 77.0 | 45.0 | 124.00 | 2.550 | M16 | 14.00 |
| SCD 141-063-160 AP5 | 14.10 | 63.00 | 83.0 | 45.0 | 133.00 | 2.570 | – | 16.00 |
| SCD 142-063-160 AP5 | 14.20 | 63.00 | 83.0 | 45.0 | 133.00 | 2.580 | – | 16.00 |
| SCD 143-063-160 AP5 | 14.30 | 63.00 | 83.0 | 45.0 | 133.00 | 2.600 | – | 16.00 |
| SCD 145-063-160 AP5 | 14.50 | 63.00 | 83.0 | 45.0 | 133.00 | 2.640 | – | 16.00 |
| SCD 146-063-160 AP5 | 14.60 | 63.00 | 83.0 | 45.0 | 133.00 | 2.660 | – | 16.00 |
| SCD 147-063-160 AP5 | 14.70 | 63.00 | 83.0 | 45.0 | 133.00 | 2.680 | – | 16.00 |
| SCD 148-063-160 AP5 | 14.80 | 63.00 | 83.0 | 45.0 | 133.00 | 2.690 | – | 16.00 |
| SCD 149-063-160 AP5 | 14.90 | 63.00 | 83.0 | 45.0 | 133.00 | 2.710 | – | 16.00 |
| SCD 150-063-160 AP5 | 15.00 | 63.00 | 83.0 | 45.0 | 133.00 | 2.730 | – | 16.00 |
| SCD 152-063-160 AP5 | 15.20 | 63.00 | 83.0 | 45.0 | 133.00 | 2.770 | – | 16.00 |
| SCD 153-063-160 AP5 | 15.30 | 63.00 | 83.0 | 45.0 | 133.00 | 2.780 | – | 16.00 |
| SCD 155-063-160 AP5 | 15.50 | 63.00 | 83.0 | 45.0 | 133.00 | 2.820 | M18 | 16.00 |
| SCD 157-063-160 AP5 | 15.70 | 63.00 | 83.0 | 45.0 | 133.00 | 2.860 | – | 16.00 |
| SCD 158-063-160 AP5 | 15.80 | 63.00 | 83.0 | 45.0 | 133.00 | 2.880 | – | 16.00 |
| SCD 159-063-160 AP5 | 15.90 | 63.00 | 83.0 | 45.0 | 133.00 | 2.890 | – | 16.00 |
| SCD 160-063-160 AP5 | 16.00 | 63.00 | 83.0 | 45.0 | 133.00 | 2.910 | – | 16.00 |
| SCD 161-071-180 AP5 | 16.10 | 71.00 | 93.0 | 48.0 | 143.00 | 2.930 | – | 18.00 |
| SCD 164-071-180 AP5 | 16.40 | 71.00 | 93.0 | 48.0 | 143.00 | 2.980 | – | 18.00 |
| SCD 165-071-180 AP5 | 16.50 | 71.00 | 93.0 | 48.0 | 143.00 | 3.000 | – | 18.00 |
| SCD 166-071-180 AP5 | 16.60 | 71.00 | 93.0 | 48.0 | 143.00 | 3.020 | – | 18.00 |
| SCD 167-071-180 AP5 | 16.70 | 71.00 | 93.0 | 48.0 | 143.00 | 3.040 | – | 18.00 |
| SCD 168-071-180 AP5 | 16.80 | 71.00 | 93.0 | 48.0 | 143.00 | 3.060 | – | 18.00 |
| SCD 169-071-180 AP5 | 16.90 | 71.00 | 93.0 | 48.0 | 143.00 | 3.080 | – | 18.00 |
| SCD 170-071-180 AP5 | 17.00 | 71.00 | 93.0 | 48.0 | 143.00 | 3.090 | – | 18.00 |
| SCD 171-071-180 AP5 | 17.10 | 71.00 | 93.0 | 48.0 | 143.00 | 3.110 | – | 18.00 |
| SCD 172-071-180 AP5 | 17.20 | 71.00 | 93.0 | 48.0 | 143.00 | 3.130 | – | 18.00 |
| SCD 173-071-180 AP5 | 17.30 | 71.00 | 93.0 | 48.0 | 143.00 | 3.150 | – | 18.00 |
| SCD 174-071-180 AP5 | 17.40 | 71.00 | 93.0 | 48.0 | 143.00 | 3.170 | – | 18.00 |
| SCD 175-071-180 AP5 | 17.50 | 71.00 | 93.0 | 48.0 | 143.00 | 3.180 | M20 | 18.00 |
| SCD 176-071-180 AP5 | 17.60 | 71.00 | 93.0 | 48.0 | 143.00 | 3.200 | – | 18.00 |
| SCD 177-071-180 AP5 | 17.70 | 71.00 | 93.0 | 48.0 | 143.00 | 3.220 | – | 18.00 |
| SCD 178-071-180 AP5 | 17.80 | 71.00 | 93.0 | 48.0 | 143.00 | 3.240 | – | 18.00 |
| SCD 179-071-180 AP5 | 17.90 | 71.00 | 93.0 | 48.0 | 143.00 | 3.260 | – | 18.00 |
| SCD 180-071-180 AP5 | 18.00 | 71.00 | 93.0 | 48.0 | 143.00 | 3.280 | – | 18.00 |
| SCD 182-077-200 AP5 | 18.20 | 77.00 | 101.0 | 48.0 | 153.00 | 3.310 | – | 20.00 |
| SCD 183-077-200 AP5 | 18.30 | 77.00 | 101.0 | 48.0 | 153.00 | 3.330 | – | 20.00 |
| SCD 184-077-200 AP5 | 18.40 | 77.00 | 101.0 | 48.0 | 153.00 | 3.350 | – | 20.00 |
| SCD 185-077-200 AP5 | 18.50 | 77.00 | 101.0 | 48.0 | 153.00 | 3.370 | – | 20.00 |
| SCD 186-077-200 AP5 | 18.60 | 77.00 | 101.0 | 48.0 | 153.00 | 3.380 | – | 20.00 |
| SCD 187-077-200 AP5 | 18.70 | 77.00 | 101.0 | 48.0 | 153.00 | 3.400 | – | 20.00 |
| SCD 188-077-200 AP5 | 18.80 | 77.00 | 101.0 | 48.0 | 153.00 | 3.420 | – | 20.00 |
| SCD 189-077-200 AP5 | 18.90 | 77.00 | 101.0 | 48.0 | 153.00 | 3.440 | – | 20.00 |
| SCD 190-077-200 AP5 | 19.00 | 77.00 | 101.0 | 48.0 | 153.00 | 3.460 | – | 20.00 |
(1) Используется для стандартного размера резьбы
