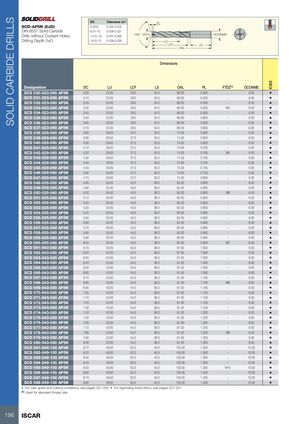

Инструменты для обработки отверстий Iscar 2026 - страница 198
Навигация
Каталог Iscar отрезка 2022
Каталог Iscar крепление инструмента
Токарные инструменты Iscar (часть 2) 2026
Каталог Iscar токарные державки ISO 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Твёрдосплавные свёрла
SCD-AP5N (5xD)
DIN 6537 Твёрдый сплав
Свёрла без каналов подачи охлаждающей жидкости, глубина сверления 5xD
Допуски
| DC | Допуск m7 |
|---|---|
| 3.00–6 | 0.004–0.016 |
| 6.01–10 | 0.008–0.021 |
| 10.01–18 | 0.007–0.025 |
| 18.01–21 | 0.008–0.029 |
Размеры
| Обозначение | DC | LU | LCF | LS | OAL | PL | FTDZ(1) | DCONMS |
|---|---|---|---|---|---|---|---|---|
| SCD 030-023-060 AP5N | 3.00 | 23.00 | 29.0 | 34.0 | 66.00 | 0.500 | – | 6.00 |
| SCD 031-023-060 AP5N | 3.10 | 23.00 | 29.0 | 34.0 | 66.00 | 0.500 | – | 6.00 |
| SCD 032-023-060 AP5N | 3.20 | 23.00 | 29.0 | 34.0 | 66.00 | 0.500 | – | 6.00 |
| SCD 033-023-060 AP5N | 3.30 | 23.00 | 29.0 | 34.0 | 66.00 | 0.500 | M4 | 6.00 |
| SCD 034-023-060 AP5N | 3.40 | 23.00 | 29.0 | 34.0 | 66.00 | 0.500 | – | 6.00 |
| SCD 035-023-060 AP5N | 3.50 | 23.00 | 29.0 | 34.0 | 66.00 | 0.600 | – | 6.00 |
| SCD 036-023-060 AP5N | 3.60 | 23.00 | 29.0 | 34.0 | 66.00 | 0.600 | – | 6.00 |
| SCD 037-023-060 AP5N | 3.70 | 23.00 | 29.0 | 34.0 | 66.00 | 0.600 | – | 6.00 |
| SCD 038-029-060 AP5N | 3.80 | 29.00 | 37.0 | 35.0 | 74.00 | 0.600 | – | 6.00 |
| SCD 039-029-060 AP5N | 3.90 | 29.00 | 37.0 | 35.0 | 74.00 | 0.600 | – | 6.00 |
| SCD 040-029-060 AP5N | 4.00 | 29.00 | 37.0 | 35.0 | 74.00 | 0.600 | – | 6.00 |
| SCD 041-029-060 AP5N | 4.10 | 29.00 | 37.0 | 35.0 | 74.00 | 0.700 | – | 6.00 |
| SCD 042-029-060 AP5N | 4.20 | 29.00 | 37.0 | 35.0 | 74.00 | 0.700 | M5 | 6.00 |
| SCD 043-029-060 AP5N | 4.30 | 29.00 | 37.0 | 35.0 | 74.00 | 0.700 | – | 6.00 |
| SCD 044-029-060 AP5N | 4.40 | 29.00 | 37.0 | 35.0 | 74.00 | 0.700 | – | 6.00 |
| SCD 045-029-060 AP5N | 4.50 | 29.00 | 37.0 | 35.0 | 74.00 | 0.700 | – | 6.00 |
| SCD 046-029-060 AP5N | 4.60 | 29.00 | 37.0 | 35.0 | 74.00 | 0.700 | – | 6.00 |
| SCD 047-029-060 AP5N | 4.70 | 29.00 | 37.0 | 35.0 | 74.00 | 0.800 | – | 6.00 |
| SCD 048-035-060 AP5N | 4.80 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | – | 6.00 |
| SCD 049-035-060 AP5N | 4.90 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | – | 6.00 |
| SCD 050-035-060 AP5N | 5.00 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | M6 | 6.00 |
| SCD 051-035-060 AP5N | 5.10 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | – | 6.00 |
| SCD 052-035-060 AP5N | 5.20 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | – | 6.00 |
| SCD 053-035-060 AP5N | 5.30 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | – | 6.00 |
| SCD 054-035-060 AP5N | 5.40 | 35.00 | 45.0 | 36.0 | 82.00 | 0.800 | – | 6.00 |
| SCD 055-035-060 AP5N | 5.50 | 35.00 | 45.0 | 36.0 | 82.00 | 0.900 | – | 6.00 |
| SCD 056-035-060 AP5N | 5.60 | 35.00 | 45.0 | 36.0 | 82.00 | 0.900 | – | 6.00 |
| SCD 057-035-060 AP5N | 5.70 | 35.00 | 45.0 | 36.0 | 82.00 | 0.900 | – | 6.00 |
| SCD 058-035-060 AP5N | 5.80 | 35.00 | 45.0 | 36.0 | 82.00 | 0.900 | – | 6.00 |
| SCD 059-035-060 AP5N | 5.90 | 35.00 | 45.0 | 36.0 | 82.00 | 0.900 | – | 6.00 |
| SCD 060-035-060 AP5N | 6.00 | 35.00 | 45.0 | 36.0 | 82.00 | 0.900 | M7 | 6.00 |
| SCD 061-043-080 AP5N | 6.10 | 43.00 | 54.0 | 36.0 | 91.00 | 1.000 | – | 8.00 |
| SCD 062-043-080 AP5N | 6.20 | 43.00 | 54.0 | 36.0 | 91.00 | 1.000 | – | 8.00 |
| SCD 063-043-080 AP5N | 6.30 | 43.00 | 54.0 | 36.0 | 91.00 | 1.000 | – | 8.00 |
| SCD 064-043-080 AP5N | 6.40 | 43.00 | 54.0 | 36.0 | 91.00 | 1.000 | – | 8.00 |
| SCD 065-043-080 AP5N | 6.50 | 43.00 | 54.0 | 36.0 | 91.00 | 1.000 | – | 8.00 |
| SCD 066-043-080 AP5N | 6.60 | 43.00 | 54.0 | 36.0 | 91.00 | 1.000 | – | 8.00 |
| SCD 067-043-080 AP5N | 6.70 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | – | 8.00 |
| SCD 068-043-080 AP5N | 6.80 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | M8 | 8.00 |
| SCD 069-043-080 AP5N | 6.90 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | – | 8.00 |
| SCD 070-043-080 AP5N | 7.00 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | – | 8.00 |
| SCD 071-043-080 AP5N | 7.10 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | – | 8.00 |
| SCD 072-043-080 AP5N | 7.20 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | – | 8.00 |
| SCD 073-043-080 AP5N | 7.30 | 43.00 | 54.0 | 36.0 | 91.00 | 1.100 | – | 8.00 |
| SCD 074-043-080 AP5N | 7.40 | 43.00 | 54.0 | 36.0 | 91.00 | 1.200 | – | 8.00 |
| SCD 075-043-080 AP5N | 7.50 | 43.00 | 54.0 | 36.0 | 91.00 | 1.200 | – | 8.00 |
| SCD 076-043-080 AP5N | 7.60 | 43.00 | 54.0 | 36.0 | 91.00 | 1.200 | – | 8.00 |
| SCD 077-043-080 AP5N | 7.70 | 43.00 | 54.0 | 36.0 | 91.00 | 1.200 | – | 8.00 |
| SCD 078-043-080 AP5N | 7.80 | 43.00 | 54.0 | 36.0 | 91.00 | 1.200 | M9 | 8.00 |
| SCD 079-043-080 AP5N | 7.90 | 43.00 | 54.0 | 36.0 | 91.00 | 1.300 | – | 8.00 |
| SCD 080-043-080 AP5N | 8.00 | 43.00 | 54.0 | 36.0 | 91.00 | 1.300 | – | 8.00 |
| SCD 081-049-100 AP5N | 8.10 | 49.00 | 62.0 | 40.0 | 103.00 | 1.300 | – | 10.00 |
| SCD 082-049-100 AP5N | 8.20 | 49.00 | 62.0 | 40.0 | 103.00 | 1.300 | – | 10.00 |
| SCD 083-049-100 AP5N | 8.30 | 49.00 | 62.0 | 40.0 | 103.00 | 1.300 | – | 10.00 |
| SCD 084-049-100 AP5N | 8.40 | 49.00 | 62.0 | 40.0 | 103.00 | 1.300 | – | 10.00 |
| SCD 085-049-100 AP5N | 8.50 | 49.00 | 62.0 | 40.0 | 103.00 | 1.300 | M10 | 10.00 |
| SCD 086-049-100 AP5N | 8.60 | 49.00 | 62.0 | 40.0 | 103.00 | 1.400 | – | 10.00 |
| SCD 087-049-100 AP5N | 8.70 | 49.00 | 62.0 | 40.0 | 103.00 | 1.400 | – | 10.00 |
| SCD 088-049-100 AP5N | 8.80 | 49.00 | 62.0 | 40.0 | 103.00 | 1.400 | – | 10.00 |
(1) Используется для стандартного размера резьбы
