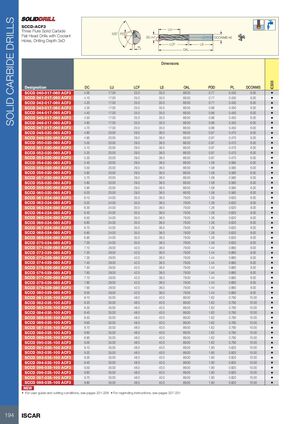

Инструменты для обработки отверстий Iscar 2026 - страница 196
Навигация
Каталог Iscar отрезка 2022
Каталог Iscar крепление инструмента
Токарные инструменты Iscar (часть 2) 2026
Каталог Iscar токарные державки ISO 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
ТВЁРДОСПЛАВНЫЕ СВЕРЛА
SCCD-ACF3
Трёхфлютовые твёрдосплавные сверла с плоским торцом и охлаждающими отверстиями, глубина сверления 3xD.
Размеры
| Обозначение | DC | LU | LCF | LS | OAL | PDD | PL | DCONMS | IC608 |
|---|---|---|---|---|---|---|---|---|---|
| SCCD 040-017-060 ACF3 | 4.00 | 17.00 | 25.0 | 35.0 | 66.00 | 0.77 | 0.430 | 6.00 | • |
| SCCD 041-017-060 ACF3 | 4.10 | 17.00 | 25.0 | 35.0 | 66.00 | 0.77 | 0.430 | 6.00 | • |
| SCCD 042-017-060 ACF3 | 4.20 | 17.00 | 25.0 | 35.0 | 66.00 | 0.77 | 0.430 | 6.00 | • |
| SCCD 043-017-060 ACF3 | 4.30 | 17.00 | 25.0 | 35.0 | 66.00 | 0.86 | 0.450 | 6.00 | • |
| SCCD 044-017-060 ACF3 | 4.40 | 17.00 | 25.0 | 35.0 | 66.00 | 0.86 | 0.450 | 6.00 | • |
| SCCD 045-017-060 ACF3 | 4.50 | 17.00 | 25.0 | 35.0 | 66.00 | 0.86 | 0.450 | 6.00 | • |
| SCCD 046-017-060 ACF3 | 4.60 | 17.00 | 25.0 | 35.0 | 66.00 | 0.86 | 0.450 | 6.00 | • |
| SCCD 047-017-060 ACF3 | 4.70 | 17.00 | 25.0 | 35.0 | 66.00 | 0.86 | 0.450 | 6.00 | • |
| SCCD 048-020-060 ACF3 | 4.80 | 20.00 | 29.0 | 36.0 | 66.00 | 0.97 | 0.470 | 6.00 | • |
| SCCD 049-020-060 ACF3 | 4.90 | 20.00 | 29.0 | 36.0 | 66.00 | 0.97 | 0.470 | 6.00 | • |
| SCCD 050-020-060 ACF3 | 5.00 | 20.00 | 29.0 | 36.0 | 66.00 | 0.97 | 0.470 | 6.00 | • |
| SCCD 051-020-060 ACF3 | 5.10 | 20.00 | 29.0 | 36.0 | 66.00 | 0.97 | 0.470 | 6.00 | • |
| SCCD 052-020-060 ACF3 | 5.20 | 20.00 | 29.0 | 36.0 | 66.00 | 0.97 | 0.470 | 6.00 | • |
| SCCD 053-020-060 ACF3 | 5.30 | 20.00 | 29.0 | 36.0 | 66.00 | 0.97 | 0.470 | 6.00 | • |
| SCCD 054-020-060 ACF3 | 5.40 | 20.00 | 29.0 | 36.0 | 66.00 | 1.08 | 0.580 | 6.00 | • |
| SCCD 055-020-060 ACF3 | 5.50 | 20.00 | 29.0 | 36.0 | 66.00 | 1.08 | 0.580 | 6.00 | • |
| SCCD 056-020-060 ACF3 | 5.60 | 20.00 | 29.0 | 36.0 | 66.00 | 1.08 | 0.580 | 6.00 | • |
| SCCD 057-020-060 ACF3 | 5.70 | 20.00 | 29.0 | 36.0 | 66.00 | 1.08 | 0.580 | 6.00 | • |
| SCCD 058-020-060 ACF3 | 5.80 | 20.00 | 29.0 | 36.0 | 66.00 | 1.08 | 0.580 | 6.00 | • |
| SCCD 059-020-060 ACF3 | 5.90 | 20.00 | 29.0 | 36.0 | 66.00 | 1.08 | 0.580 | 6.00 | • |
| SCCD 060-020-060 ACF3 | 6.00 | 20.00 | 29.0 | 36.0 | 66.00 | 1.08 | 0.580 | 6.00 | • |
| SCCD 061-024-080 ACF3 | 6.10 | 24.00 | 35.0 | 36.0 | 79.00 | 1.26 | 0.620 | 8.00 | • |
| SCCD 062-024-080 ACF3 | 6.20 | 24.00 | 35.0 | 36.0 | 79.00 | 1.26 | 0.620 | 8.00 | • |
| SCCD 063-024-080 ACF3 | 6.30 | 24.00 | 35.0 | 36.0 | 79.00 | 1.26 | 0.620 | 8.00 | • |
| SCCD 064-024-080 ACF3 | 6.40 | 24.00 | 35.0 | 36.0 | 79.00 | 1.26 | 0.620 | 8.00 | • |
| SCCD 065-024-080 ACF3 | 6.50 | 24.00 | 35.0 | 36.0 | 79.00 | 1.26 | 0.620 | 8.00 | • |
| SCCD 066-024-080 ACF3 | 6.60 | 24.00 | 35.0 | 36.0 | 79.00 | 1.26 | 0.620 | 8.00 | • |
| SCCD 067-024-080 ACF3 | 6.70 | 24.00 | 35.0 | 36.0 | 79.00 | 1.26 | 0.620 | 8.00 | • |
| SCCD 068-024-080 ACF3 | 6.80 | 24.00 | 35.0 | 36.0 | 79.00 | 1.26 | 0.620 | 8.00 | • |
| SCCD 069-024-080 ACF3 | 6.90 | 24.00 | 35.0 | 36.0 | 79.00 | 1.26 | 0.620 | 8.00 | • |
| SCCD 070-024-080 ACF3 | 7.00 | 24.00 | 35.0 | 36.0 | 79.00 | 1.26 | 0.620 | 8.00 | • |
| SCCD 071-029-080 ACF3 | 7.10 | 29.00 | 42.0 | 36.0 | 79.00 | 1.44 | 0.660 | 8.00 | • |
| SCCD 072-029-080 ACF3 | 7.20 | 29.00 | 42.0 | 36.0 | 79.00 | 1.44 | 0.660 | 8.00 | • |
| SCCD 073-029-080 ACF3 | 7.30 | 29.00 | 42.0 | 36.0 | 79.00 | 1.44 | 0.660 | 8.00 | • |
| SCCD 074-029-080 ACF3 | 7.40 | 29.00 | 42.0 | 36.0 | 79.00 | 1.44 | 0.660 | 8.00 | • |
| SCCD 075-029-080 ACF3 | 7.50 | 29.00 | 42.0 | 36.0 | 79.00 | 1.44 | 0.660 | 8.00 | • |
| SCCD 076-029-080 ACF3 | 7.60 | 29.00 | 42.0 | 36.0 | 79.00 | 1.44 | 0.660 | 8.00 | • |
| SCCD 077-029-080 ACF3 | 7.70 | 29.00 | 42.0 | 36.0 | 79.00 | 1.44 | 0.660 | 8.00 | • |
| SCCD 078-029-080 ACF3 | 7.80 | 29.00 | 42.0 | 36.0 | 79.00 | 1.44 | 0.660 | 8.00 | • |
| SCCD 079-029-080 ACF3 | 7.90 | 29.00 | 42.0 | 36.0 | 79.00 | 1.44 | 0.660 | 8.00 | • |
| SCCD 080-029-080 ACF3 | 8.00 | 29.00 | 42.0 | 36.0 | 79.00 | 1.44 | 0.660 | 8.00 | • |
| SCCD 081-035-100 ACF3 | 8.10 | 35.00 | 48.0 | 40.0 | 89.00 | 1.62 | 0.790 | 10.00 | • |
| SCCD 082-035-100 ACF3 | 8.20 | 35.00 | 48.0 | 40.0 | 89.00 | 1.62 | 0.790 | 10.00 | • |
| SCCD 083-035-100 ACF3 | 8.30 | 35.00 | 48.0 | 40.0 | 89.00 | 1.62 | 0.790 | 10.00 | • |
| SCCD 084-035-100 ACF3 | 8.40 | 35.00 | 48.0 | 40.0 | 89.00 | 1.62 | 0.790 | 10.00 | • |
| SCCD 085-035-100 ACF3 | 8.50 | 35.00 | 48.0 | 40.0 | 89.00 | 1.62 | 0.790 | 10.00 | • |
| SCCD 086-035-100 ACF3 | 8.60 | 35.00 | 48.0 | 40.0 | 89.00 | 1.62 | 0.790 | 10.00 | • |
| SCCD 087-035-100 ACF3 | 8.70 | 35.00 | 48.0 | 40.0 | 89.00 | 1.62 | 0.790 | 10.00 | • |
| SCCD 088-035-100 ACF3 | 8.80 | 35.00 | 48.0 | 40.0 | 89.00 | 1.62 | 0.790 | 10.00 | • |
| SCCD 089-035-100 ACF3 | 8.90 | 35.00 | 48.0 | 40.0 | 89.00 | 1.62 | 0.790 | 10.00 | • |
| SCCD 090-035-100 ACF3 | 9.00 | 35.00 | 48.0 | 40.0 | 89.00 | 1.62 | 0.790 | 10.00 | • |
| SCCD 091-035-100 ACF3 | 9.10 | 35.00 | 48.0 | 40.0 | 89.00 | 1.80 | 0.820 | 10.00 | • |
| SCCD 092-035-100 ACF3 | 9.20 | 35.00 | 48.0 | 40.0 | 89.00 | 1.80 | 0.820 | 10.00 | • |
| SCCD 093-035-100 ACF3 | 9.30 | 35.00 | 48.0 | 40.0 | 89.00 | 1.80 | 0.820 | 10.00 | • |
| SCCD 094-035-100 ACF3 | 9.40 | 35.00 | 48.0 | 40.0 | 89.00 | 1.80 | 0.820 | 10.00 | • |
| SCCD 095-035-100 ACF3 | 9.50 | 35.00 | 48.0 | 40.0 | 89.00 | 1.80 | 0.820 | 10.00 | • |
| SCCD 096-035-100 ACF3 | 9.60 | 35.00 | 48.0 | 40.0 | 89.00 | 1.80 | 0.820 | 10.00 | • |
| SCCD 097-035-100 ACF3 | 9.70 | 35.00 | 48.0 | 40.0 | 89.00 | 1.80 | 0.820 | 10.00 | • |
| SCCD 098-035-100 ACF3 | 9.80 | 35.00 | 48.0 | 40.0 | 89.00 | 1.80 | 0.820 | 10.00 | • |
НОВОЕ
