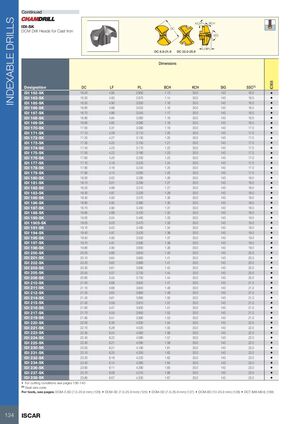

СМЕННЫЕ БУРЫ
Головки бура DCM для чугуна IDI-SK (продолжение)
Размерные характеристики диаметров 6.8–21.9 и 22.0–25.9 мм
| Обозначение | DC | LF | PL | BCH | KCH | SIG | SSC(1) |
|---|---|---|---|---|---|---|---|
| IDI 162-SK | 16.20 | 4.95 | 2.950 | 1.13 | 30.0 | 140 | 16.0 |
| IDI 163-SK | 16.30 | 4.93 | 2.970 | 1.14 | 30.0 | 140 | 16.0 |
| IDI 165-SK | 16.50 | 4.90 | 3.000 | 1.16 | 30.0 | 140 | 16.0 |
| IDI 166-SK | 16.60 | 4.88 | 3.020 | 1.16 | 30.0 | 140 | 16.0 |
| IDI 167-SK | 16.70 | 4.86 | 3.040 | 1.17 | 30.0 | 140 | 16.0 |
| IDI 168-SK | 16.80 | 4.84 | 3.060 | 1.18 | 30.0 | 140 | 16.0 |
| IDI 169-SK | 16.90 | 4.82 | 3.080 | 1.18 | 30.0 | 140 | 16.0 |
| IDI 170-SK | 17.00 | 4.31 | 3.090 | 1.19 | 30.0 | 140 | 17.0 |
| IDI 171-SK | 17.10 | 4.29 | 3.110 | 1.20 | 30.0 | 140 | 17.0 |
| IDI 172-SK | 17.20 | 4.27 | 3.130 | 1.20 | 30.0 | 140 | 17.0 |
| IDI 173-SK | 17.30 | 4.25 | 3.150 | 1.21 | 30.0 | 140 | 17.0 |
| IDI 174-SK | 17.40 | 4.23 | 3.170 | 1.22 | 30.0 | 140 | 17.0 |
| IDI 175-SK | 17.50 | 4.22 | 3.180 | 1.23 | 30.0 | 140 | 17.0 |
| IDI 176-SK | 17.60 | 4.20 | 3.200 | 1.23 | 30.0 | 140 | 17.0 |
| IDI 177-SK | 17.70 | 4.18 | 3.220 | 1.24 | 30.0 | 140 | 17.0 |
| IDI 178-SK | 17.80 | 4.16 | 3.240 | 1.25 | 30.0 | 140 | 17.0 |
| IDI 179-SK | 17.90 | 4.14 | 3.260 | 1.25 | 30.0 | 140 | 17.0 |
| IDI 180-SK | 18.00 | 5.02 | 3.280 | 1.26 | 30.0 | 140 | 18.0 |
| IDI 181-SK | 18.10 | 5.01 | 3.290 | 1.27 | 30.0 | 140 | 18.0 |
| IDI 182-SK | 18.20 | 4.99 | 3.310 | 1.27 | 30.0 | 140 | 18.0 |
| IDI 183-SK | 18.30 | 4.97 | 3.330 | 1.28 | 30.0 | 140 | 18.0 |
| IDI 185-SK | 18.50 | 4.93 | 3.370 | 1.30 | 30.0 | 140 | 18.0 |
| IDI 186-SK | 18.60 | 4.92 | 3.380 | 1.30 | 30.0 | 140 | 18.0 |
| IDI 187-SK | 18.70 | 4.90 | 3.400 | 1.31 | 30.0 | 140 | 18.0 |
| IDI 188-SK | 18.80 | 4.88 | 3.420 | 1.32 | 30.0 | 140 | 18.0 |
| IDI 190-SK | 19.00 | 5.04 | 3.460 | 1.33 | 30.0 | 140 | 19.0 |
| IDI 1905-SK | 19.05 | 5.03 | 3.470 | 1.33 | 30.0 | 140 | 19.0 |
| IDI 191-SK | 19.10 | 5.02 | 3.480 | 1.34 | 30.0 | 140 | 19.0 |
| IDI 194-SK | 19.40 | 4.97 | 3.530 | 1.36 | 30.0 | 140 | 19.0 |
| IDI 195-SK | 19.50 | 4.95 | 3.550 | 1.37 | 30.0 | 140 | 19.0 |
| IDI 197-SK | 19.70 | 4.91 | 3.590 | 1.38 | 30.0 | 140 | 19.0 |
| IDI 198-SK | 19.80 | 4.90 | 3.600 | 1.39 | 30.0 | 140 | 19.0 |
| IDI 200-SK | 20.00 | 5.66 | 3.640 | 1.40 | 30.0 | 140 | 20.0 |
| IDI 201-SK | 20.10 | 5.64 | 3.660 | 1.41 | 30.0 | 140 | 20.0 |
| IDI 202-SK | 20.20 | 5.62 | 3.680 | 1.41 | 30.0 | 140 | 20.0 |
| IDI 203-SK | 20.30 | 5.61 | 3.690 | 1.42 | 30.0 | 140 | 20.0 |
| IDI 205-SK | 20.50 | 5.57 | 3.730 | 1.44 | 30.0 | 140 | 20.0 |
| IDI 206-SK | 20.60 | 5.55 | 3.750 | 1.44 | 30.0 | 140 | 20.0 |
| IDI 210-SK | 21.00 | 5.68 | 3.820 | 1.47 | 30.0 | 140 | 21.0 |
| IDI 211-SK | 21.10 | 5.66 | 3.840 | 1.48 | 30.0 | 140 | 21.0 |
| IDI 212-SK | 21.20 | 5.64 | 3.860 | 1.48 | 30.0 | 140 | 21.0 |
| IDI 214-SK | 21.40 | 5.61 | 3.890 | 1.50 | 30.0 | 140 | 21.0 |
| IDI 215-SK | 21.50 | 5.59 | 3.910 | 1.51 | 30.0 | 140 | 21.0 |
| IDI 216-SK | 21.60 | 5.57 | 3.930 | 1.51 | 30.0 | 140 | 21.0 |
| IDI 217-SK | 21.70 | 5.55 | 3.950 | 1.52 | 30.0 | 140 | 21.0 |
| IDI 219-SK | 21.90 | 5.51 | 3.990 | 1.53 | 30.0 | 140 | 21.0 |
| IDI 220-SK | 22.00 | 6.30 | 4.000 | 1.54 | 30.0 | 140 | 22.0 |
| IDI 221-SK | 22.10 | 6.28 | 4.020 | 1.55 | 30.0 | 140 | 22.0 |
| IDI 223-SK | 22.30 | 6.24 | 4.060 | 1.56 | 30.0 | 140 | 22.0 |
| IDI 224-SK | 22.40 | 6.22 | 4.080 | 1.57 | 30.0 | 140 | 22.0 |
| IDI 225-SK | 22.50 | 6.21 | 4.090 | 1.58 | 30.0 | 140 | 22.0 |
| IDI 230-SK | 23.00 | 6.21 | 4.190 | 1.61 | 30.0 | 140 | 23.0 |
| IDI 231-SK | 23.10 | 6.20 | 4.200 | 1.62 | 30.0 | 140 | 23.0 |
| IDI 232-SK | 23.20 | 6.18 | 4.220 | 1.62 | 30.0 | 140 | 23.0 |
| IDI 234-SK | 23.40 | 6.14 | 4.260 | 1.64 | 30.0 | 140 | 23.0 |
| IDI 236-SK | 23.60 | 6.11 | 4.290 | 1.65 | 30.0 | 140 | 23.0 |
| IDI 237-SK | 23.70 | 6.09 | 4.310 | 1.66 | 30.0 | 140 | 23.0 |
| IDI 238-SK | 23.80 | 6.07 | 4.330 | 1.67 | 30.0 | 140 | 23.0 |
• Условия резания см. стр. 136–140
(1) Код размера посадочного гнезда
