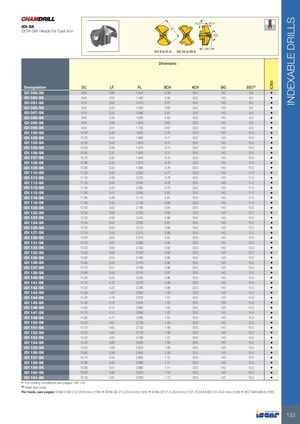

СМЕННЫЕ БУРЫ
Головки бура DCM для чугуна IDI-SK
Размерные характеристики диаметров 6.8–21.9 и 22.0–25.9 мм
| Обозначение | DC | LF | PL | BCH | KCH | SIG | SSC(1) |
|---|---|---|---|---|---|---|---|
| IDI 068-SK | 6.80 | 2.86 | 1.240 | 0.48 | 30.0 | 140 | 6.8 |
| IDI 080-SK | 8.00 | 2.64 | 1.460 | 0.56 | 30.0 | 140 | 8.0 |
| IDI 081-SK | 8.10 | 2.63 | 1.470 | 0.57 | 30.0 | 140 | 8.0 |
| IDI 085-SK | 8.50 | 2.55 | 1.550 | 0.60 | 30.0 | 140 | 8.0 |
| IDI 087-SK | 8.70 | 2.52 | 1.580 | 0.61 | 30.0 | 140 | 8.0 |
| IDI 088-SK | 8.80 | 2.50 | 1.600 | 0.62 | 30.0 | 140 | 8.0 |
| IDI 090-SK | 9.00 | 2.66 | 1.640 | 0.63 | 30.0 | 140 | 9.0 |
| IDI 095-SK | 9.50 | 2.57 | 1.730 | 0.67 | 30.0 | 140 | 9.0 |
| IDI 100-SK | 10.00 | 3.48 | 1.820 | 0.70 | 30.0 | 140 | 10.0 |
| IDI 102-SK | 10.20 | 3.44 | 1.860 | 0.71 | 30.0 | 140 | 10.0 |
| IDI 103-SK | 10.30 | 3.43 | 1.870 | 0.72 | 30.0 | 140 | 10.0 |
| IDI 105-SK | 10.50 | 3.39 | 1.910 | 0.74 | 30.0 | 140 | 10.0 |
| IDI 106-SK | 10.60 | 3.37 | 1.930 | 0.74 | 30.0 | 140 | 10.0 |
| IDI 107-SK | 10.70 | 3.35 | 1.950 | 0.75 | 30.0 | 140 | 10.0 |
| IDI 108-SK | 10.80 | 3.33 | 1.970 | 0.76 | 30.0 | 140 | 10.0 |
| IDI 109-SK | 10.90 | 3.32 | 1.980 | 0.76 | 30.0 | 140 | 10.0 |
| IDI 110-SK | 11.00 | 3.50 | 2.000 | 0.77 | 30.0 | 140 | 11.0 |
| IDI 111-SK | 11.10 | 3.48 | 2.020 | 0.78 | 30.0 | 140 | 11.0 |
| IDI 112-SK | 11.20 | 3.46 | 2.040 | 0.78 | 30.0 | 140 | 11.0 |
| IDI 113-SK | 11.30 | 3.44 | 2.060 | 0.79 | 30.0 | 140 | 11.0 |
| IDI 115-SK | 11.50 | 3.41 | 2.090 | 0.81 | 30.0 | 140 | 11.0 |
| IDI 116-SK | 11.60 | 3.39 | 2.110 | 0.81 | 30.0 | 140 | 11.0 |
| IDI 118-SK | 11.80 | 3.35 | 2.150 | 0.83 | 30.0 | 140 | 11.0 |
| IDI 120-SK | 12.00 | 3.62 | 2.180 | 0.84 | 30.0 | 140 | 12.0 |
| IDI 122-SK | 12.20 | 3.58 | 2.220 | 0.85 | 30.0 | 140 | 12.0 |
| IDI 123-SK | 12.30 | 3.56 | 2.240 | 0.86 | 30.0 | 140 | 12.0 |
| IDI 124-SK | 12.40 | 3.54 | 2.260 | 0.87 | 30.0 | 140 | 12.0 |
| IDI 125-SK | 12.50 | 3.53 | 2.270 | 0.88 | 30.0 | 140 | 12.0 |
| IDI 127-SK | 12.70 | 3.49 | 2.310 | 0.89 | 30.0 | 140 | 12.0 |
| IDI 130-SK | 13.00 | 3.63 | 2.370 | 0.91 | 30.0 | 140 | 13.0 |
| IDI 131-SK | 13.10 | 3.62 | 2.380 | 0.92 | 30.0 | 140 | 13.0 |
| IDI 132-SK | 13.20 | 3.60 | 2.400 | 0.92 | 30.0 | 140 | 13.0 |
| IDI 133-SK | 13.30 | 3.58 | 2.420 | 0.93 | 30.0 | 140 | 13.0 |
| IDI 135-SK | 13.50 | 3.54 | 2.460 | 0.95 | 30.0 | 140 | 13.0 |
| IDI 136-SK | 13.60 | 3.53 | 2.470 | 0.95 | 30.0 | 140 | 13.0 |
| IDI 137-SK | 13.70 | 3.51 | 2.490 | 0.96 | 30.0 | 140 | 13.0 |
| IDI 138-SK | 13.80 | 3.49 | 2.510 | 0.97 | 30.0 | 140 | 13.0 |
| IDI 140-SK | 14.00 | 4.25 | 2.550 | 0.98 | 30.0 | 140 | 14.0 |
| IDI 141-SK | 14.10 | 4.23 | 2.570 | 0.99 | 30.0 | 140 | 14.0 |
| IDI 142-SK | 14.20 | 4.22 | 2.580 | 0.99 | 30.0 | 140 | 14.0 |
| IDI 143-SK | 14.30 | 4.20 | 2.600 | 1.00 | 30.0 | 140 | 14.0 |
| IDI 144-SK | 14.40 | 4.18 | 2.620 | 1.01 | 30.0 | 140 | 14.0 |
| IDI 145-SK | 14.50 | 4.16 | 2.640 | 1.02 | 30.0 | 140 | 14.0 |
| IDI 146-SK | 14.60 | 4.14 | 2.660 | 1.02 | 30.0 | 140 | 14.0 |
| IDI 147-SK | 14.70 | 4.12 | 2.680 | 1.03 | 30.0 | 140 | 14.0 |
| IDI 148-SK | 14.80 | 4.11 | 2.690 | 1.04 | 30.0 | 140 | 14.0 |
| IDI 150-SK | 15.00 | 4.67 | 2.730 | 1.05 | 30.0 | 140 | 15.0 |
| IDI 151-SK | 15.10 | 4.65 | 2.750 | 1.06 | 30.0 | 140 | 15.0 |
| IDI 152-SK | 15.20 | 4.63 | 2.770 | 1.06 | 30.0 | 140 | 15.0 |
| IDI 153-SK | 15.30 | 4.62 | 2.780 | 1.07 | 30.0 | 140 | 15.0 |
| IDI 154-SK | 15.40 | 4.60 | 2.800 | 1.08 | 30.0 | 140 | 15.0 |
| IDI 155-SK | 15.50 | 4.58 | 2.820 | 1.09 | 30.0 | 140 | 15.0 |
| IDI 156-SK | 15.60 | 4.56 | 2.840 | 1.09 | 30.0 | 140 | 15.0 |
| IDI 157-SK | 15.70 | 4.54 | 2.860 | 1.10 | 30.0 | 140 | 15.0 |
| IDI 158-SK | 15.80 | 5.02 | 2.880 | 1.11 | 30.0 | 140 | 15.0 |
| IDI 159-SK | 15.90 | 5.01 | 2.890 | 1.11 | 30.0 | 140 | 15.0 |
| IDI 160-SK | 16.00 | 4.99 | 2.910 | 1.12 | 30.0 | 140 | 16.0 |
| IDI 161-SK | 16.10 | 4.97 | 2.930 | 1.13 | 30.0 | 140 | 16.0 |
• Условия резания см. стр. 136–140
(1) Код размера посадочного гнезда
