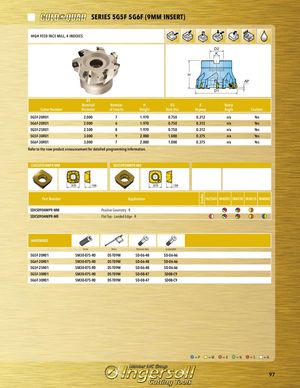

SERIES 5G5F 5G6F (9MM INSERT)
HIGH FEED FACE MILL, 4 INDEXES D2 K
H AP D1 D1
| Nominal | Number | H | D2 | K | Ramp | |||
| Cutter Number Diameter | of Inserts | Height | Bore Dia. | Keyway | Angle | Coolant | ||
| 5G5F-20R01 | 2.000 | 7 | 1.970 | 0.750 | 0.312 | n/a | Yes | |
| 5G6F-20R01 | 2.000 | 6 | 1.970 | 0.750 | 0.312 | n/a | Yes | |
| 5G5F-25R01 | 2.500 | 8 | 1.970 | 0.750 | 0.312 | n/a | Yes | |
| 5G5F-30R01 | 3.000 | 9 | 2.000 | 1.000 | 0.375 | n/a | Yes | |
| 5G6F-30R01 | 3.000 | 7 | 2.000 | 1.000 | 0.375 | n/a | Yes |
Refer to the new product announcement for detailed programming information.
SDXS0904MPR-MM SDXS0904MPR-MR
.370 .158 .370 .158
Part Number Application ades IN2504 IN4005 IN4030 IN4035 IN4040
SDXS0904MPR-MM Positive Geometry - R SDXS0904MPR-MR Flat Top - Landed Edge - R
HARDWARE
| Screw Driver | Retention Bolt | Coolant Bolt | ||
| 5G5F-20R01 | SM30-075-R0 | DS-T09W | SD-06-48 | SD-06-A6 |
| 5G6F-20R01 | SM30-075-R0 | DS-T09W | SD-06-48 | SD-06-A6 |
| 5G5F-25R01 | SM30-075-R0 | DS-T09W | SD-06-48 | SD-06-A6 |
| 5G5F-30R01 | SM30-075-R0 | DS-T09W | SD-08-47 | SD08-C9 |
| 5G6F-30R01 | SM30-075-R0 | DS-T09W | SD-08-47 | SD08-C9 |
