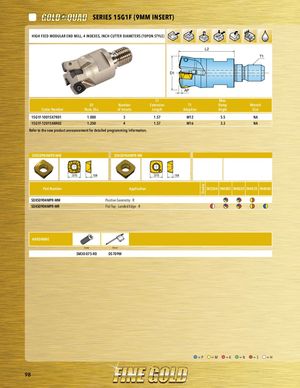

SERIES 15G1F (9MM INSERT)

HIGH FEED MODULAR END MILL, 4 INDEXES, INCH CUTTER DIAMETERS (TOPON STYLE) L2 T1

D1

AP L1 Max.

D1NumberExtensionT1RampWrench
Cutter NumberNom. Dia.of InsertsLengthAdaptionAngleSize
15G1F-10015X7R011.00031.57M125.5NA
15G1F-12015X8R021.25041.57M163.3NA

Refer to the new product announcement for detailed programming information.

SDXS0904MPR-MM SDXS0904MPR-MR

.370 .158 .370 .158

Part Number Application ades IN2504 IN4005 IN4030 IN4035 IN4040

SDXS0904MPR-MM Positive Geometry - R SDXS0904MPR-MR Flat Top - Landed Edge - R

HARDWARE Screw Driver SM30-075-R0 DS-T09W
