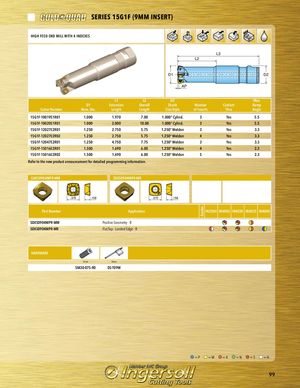

SERIES 15G1F (9MM INSERT)
HIGH FEED END MILL WITH 4 INDEXES
| L2 | L3 | ||||
| L1 L2 D2 D1 AP | Max | . D2 | |||
| D1 | Extension Overall Shank | Numbe | r Coolan | t Ram | p |
| Cutter Number Nom. Dia. | Length Length Size/Style | of Insert | s Thru | Angl | e |
| 15G1F-10019S1R01 1.000 | 1.970 7.00 1.000“ Cylind. | 3 | Yes | 5.5 | |
| 15G1F-10020S1R01 1.000 | 2.000 10.00 1.000“ Cylind. | 3 | Yes | 5.5 | |
| 15G1F-12027E2R01 1.250 | 2.750 5.75 1.250“ Weldon | 3 | Yes | 3.3 | |
| 15G1F-12027E2R02 1.250 | 2.750 5.75 1.250“ Weldon | 4 | Yes | 3.3 | |
| 15G1F-12047E2R01 1.250 | 4.750 7.75 1.250“ Weldon | 3 | Yes | 3.3 | |
| 15G1F-15016E2R01 1.500 | 1.690 6.00 1.250“ Weldon | 4 | Yes | 2.3 | |
| 15G1F-15016E2R02 1.500 | 1.690 6.00 1.250“ Weldon | 5 | Yes | 2.3 | |
| SDXS0904MPR-MM Refer to the new product announcement for detail | SDXS0904MPR-MR ed programming information. | ||||
| .370 .158 | .370 .158 | ||||
| Part Number | Application | Grades | IN2504 IN4005 I | N4030 IN4035 I | N4040 |
| SDXS0904MPR-MM | Positive Geometry- R | ||||
| SDXS0904MPR-MR | Flat Top- Landed Edge - R | ||||
| HARDWARE SM30-075-R0 Screw | DS-T09W Driver |
