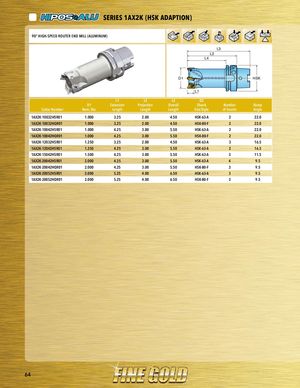

SERIES 1AX2K (HSK ADAPTION)
90° HIGH-SPEED ROUTER END MILL (ALUMINUM) L3 L2 L4
D1 HSK L1
L1 L2 L3 D2
| D1 | Extension | Projection | Overall | Shank | Number | Ramp | |
| Nom. Dia. Cutter Number | Length | Length | Length | Size/Style | of Inserts | Angle | |
| 1AX2K-10032H5R01 | 1.000 | 3.25 | 2.00 | 4.50 | HSK-63-A | 2 | 22.0 |
| 1AX2K-10032HQR01 | 1.000 | 3.25 | 2.00 | 4.50 | HSK-80-F | 2 | 22.0 |
| 1AX2K-10042H5R01 | 1.000 | 4.25 | 3.00 | 5.50 | HSK-63-A | 2 | 22.0 |
| 1AX2K-10042HQR01 | 1.000 | 4.25 | 3.00 | 5.50 | HSK-80-F | 2 | 22.0 |
| 1AX2K-12032H5R01 | 1.250 | 3.25 | 2.00 | 4.50 | HSK-63-A | 3 | 16.5 |
| 1AX2K-12042H5R01 | 1.250 | 4.25 | 3.00 | 5.50 | HSK-63-A | 2 | 16.5 |
| 1AX2K-15042H5R01 | 1.500 | 4.25 | 3.00 | 5.50 | HSK-63-A | 3 | 11.5 |
| 1AX2K-20042H5R01 | 2.000 | 4.25 | 3.00 | 5.50 | HSK-63-A | 4 | 9.5 |
| 1AX2K-20042HQR01 | 2.000 | 4.25 | 3.00 | 5.50 | HSK-80-F | 3 | 9.5 |
| 1AX2K-20052H5R01 | 2.000 | 5.25 | 4.00 | 6.50 | HSK-63-A | 3 | 9.5 |
| 1AX2K-20052HQR01 | 2.000 | 5.25 | 4.00 | 6.50 | HSK-80-F | 3 | 9.5 |
