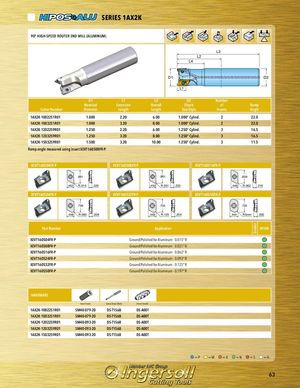

SERIES 1AX2K
90° HIGH-SPEED ROUTER END MILL (ALUMINUM)
L3 L2 L4
D1 D2 L1
D1 L1 L2 D2 Number
| Nominal | Extension | Overall | Shank | of | Ramp | ||
| Cutter Number Diameter | Length | Length | Size/Style | Inserts | Angle | ||
| 1AX2K-10022S1R01 | 1.000 | 2.20 | 6.00 | 1.000“ Cylind. | 2 | 22.0 | |
| 1AX2K-10032S1R01 | 1.000 | 3.20 | 8.00 | 1.000“ Cylind. | 2 | 22.0 | |
| 1AX2K-12022S9R01 | 1.250 | 2.20 | 6.00 | 1.250“ Cylind. | 3 | 16.5 | |
| 1AX2K-12032S9R01 | 1.250 | 3.20 | 8.00 | 1.250“ Cylind. | 3 | 16.5 | |
| 1AX2K-15032S9R01 | 1.500 | 3.20 | 10.00 | 1.250“ Cylind. | 3 | 11.5 |
Ramp angle measured using insert XEVT160508FR-P.
XEVT160504FR-P XEVT160508FR-P XEVT160516FR-P
.881 .881 .838
.452 R.015 .220 .452 R.031 .220 .448 R.062 .216
XEVT160524FR-P XEVT160532FR-P XEVT160550FR-P
.795 .755 .720
.448 R.093 .208 .448 R.125 .204 .444 R5mm .200
Part Number Application ades IN10K
XEVT160504FR-P Ground/Polished for Aluminum - 0.015" R XEVT160508FR-P Ground/Polished for Aluminum - 0.031" R XEVT160516FR-P Ground/Polished for Aluminum - 0.062" R XEVT160524FR-P Ground/Polished for Aluminum - 0.093" R XEVT160532FR-P Ground/Polished for Aluminum - 0.125" R XEVT160550FR-P Ground/Polished for Aluminum - 0.197" R
HARDWARE
| Insert Screw Screw Driver Blade | Driver Handle | ||
| 1AX2K-10022S1R01 | SM40-079-20 | DS-T156B | DS-A00T |
| 1AX2K-10032S1R01 | SM40-079-20 | DS-T156B | DS-A00T |
| 1AX2K-12022S9R01 | SM40-093-20 | DS-T156B | DS-A00T |
| 1AX2K-12032S9R01 | SM40-093-20 | DS-T156B | DS-A00T |
| 1AX2K-15032S9R01 | SM40-093-20 | DS-T156B | DS-A00T |
