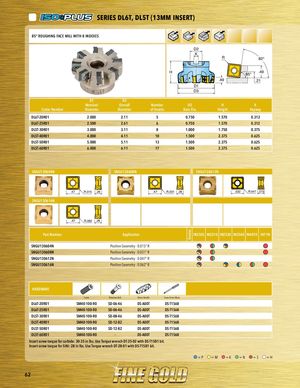

SERIES DL6T, DL5T (13MM INSERT)
85° ROUGHING FACE MILL WITH 8 INDEXES D2 K R 82°
H 85° .49
.49 .21 D1 D3 D1 D3
| Nominal | Overall | Number | D2 | H | K | ||
| Cutter Number Diameter | Diameter | of Inserts | Bore Dia. | Height | Keyway | ||
| DL6T-20R01 | 2.000 | 2.11 | 5 | 0.750 | 1.570 | 0.312 | |
| DL6T-25R01 | 2.500 | 2.61 | 6 | 0.750 | 1.570 | 0.312 | |
| DL5T-30R01 | 3.000 | 3.11 | 8 | 1.000 | 1.750 | 0.375 | |
| DL5T-40R01 | 4.000 | 4.11 | 10 | 1.500 | 2.375 | 0.625 | |
| DL5T-50R01 | 5.000 | 5.11 | 13 | 1.500 | 2.375 | 0.625 | |
| DL5T-60R01 | 6.000 | 6.11 | 17 | 1.500 | 2.375 | 0.625 |
SNGU130604N SNGU130608N SNGU130612N
.47 R.015 .26 .47 R.031 .26 .532 R.047 .273
SNGU130616N
.47 R.062 .26
Part Number Application ades IN2505 IN2510 IN2530 IN2540 IN4015 IN71N
SNGU130604N Positive Geometry - 0.015“ R SNGU130608N Positive Geometry - 0.031“ R SNGU130612N Positive Geometry - 0.047“ R SNGU130616N Positive Geometry - 0.062“ R
HARDWARE
| Screw Retention Bolt | Driver Handle | Screw Driver Blade | ||
| DL6T-20R01 | SM40-100-R0 | SD-06-46 | DS-A00T | DS-T156B |
| DL6T-25R01 | SM40-100-R0 | SD-06-46 | DS-A00T | DS-T156B |
| DL5T-30R01 | SM40-100-R0 | SD-08-46 | DS-A00T | DS-T156B |
| DL5T-40R01 | SM40-100-R0 | SD-12-82 | DS-A00T | DS-T156B |
| DL5T-50R01 | SM40-100-R0 | SD-12-82 | DS-A00T | DS-T156B |
| DL5T-60R01 | SM40-100-R0 | - DS-A00T | DS-T156B |
Insert screw torque for carbide: 30-35 in lbs. Use Torque wrench DT-35-02 with DS-T15B1 bit. Insert screw torque for SiNi: 28 in lbs. Use Torque wrench DT-28-01 with DS-T15B1 bit.
