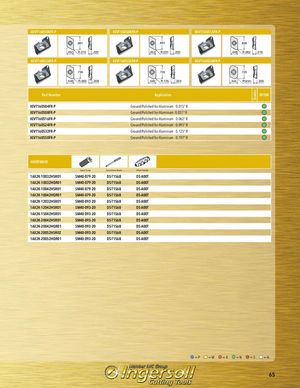

Общий каталог Ingersoll 2016 - 2017 - страница 67
Навигация
Каталог Ingersoll инструмент для нарезания резьбы
Каталог Ingersoll новинки 2021
Общий каталог Ingersoll 2011
Общий каталог Ingersoll 2014
Общий каталог Ingersoll 2013 - 2014
XEVT160504FR-P XEVT160508FR-P XEVT160516FR-P
.881 .881 .838
.452 R.015 .220 .452 R.031 .220 .448 R.062 .216
XEVT160524FR-P XEVT160532FR-P XEVT160550FR-P
.795 .755 .720
.448 R.093 .208 .448 R.125 .204 .444 R5mm .200
Part Number Application ades IN10K
XEVT160504FR-P Ground/Polished for Aluminum - 0.015“ R XEVT160508FR-P Ground/Polished for Aluminum- 0.031“ R XEVT160516FR-P Ground/Polished for Aluminum - 0.062“ R XEVT160524FR-P Ground/Polished for Aluminum - 0.093“ R XEVT160532FR-P Ground/Polished for Aluminum - 0.125“ R XEVT160550FR-P Ground/Polished for Aluminum - 0.197“ R
HARDWARE
| Insert Screw Screw Driver Blade | Driver Handle | ||
| 1AX2K-10032H5R01 | SM40-079-20 | DS-T156B | DS-A00T |
| 1AX2K-10032HQR01 | SM40-079-20 | DS-T156B | DS-A00T |
| 1AX2K-10042H5R01 | SM40-079-20 | DS-T156B | DS-A00T |
| 1AX2K-10042HQR01 | SM40-079-20 | DS-T156B | DS-A00T |
| 1AX2K-12032H5R01 | SM40-093-20 | DS-T156B | DS-A00T |
| 1AX2K-12042H5R01 | SM40-093-20 | DS-T156B | DS-A00T |
| 1AX2K-15042H5R01 | SM40-093-20 | DS-T156B | DS-A00T |
| 1AX2K-20042H5R01 | SM40-093-20 | DS-T156B | DS-A00T |
| 1AX2K-20042HQR01 | SM40-093-20 | DS-T156B | DS-A00T |
| 1AX2K-20052H5R02 | SM40-093-20 | DS-T156B | DS-A00T |
| 1AX2K-20052HQR01 | SM40-093-20 | DS-T156B | DS-A00T |
