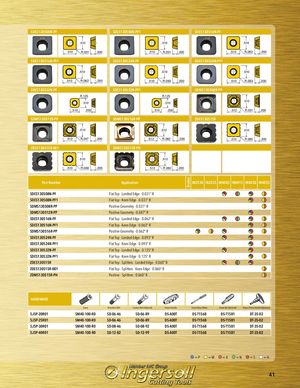

SDES130508N-PF SDES130508N-PF1 SDES130516N-PF
.510 .510 .510
.510 R.031 .200 .510 R.031 .200 .510 R.062 .200
SDES130516N-PF1 SDES130524N-PF SDES130524N-PF1
.510 .510 .510
.510 R.062 .200 .510 R.093 .200 .510 R.093 .200
| SDES130532N-PF | SDES130532N-PF1 | SDMS130508R-PP | |||
| R.125 | R.125 | ||||
| .512 | |||||
| .510 | .510 |
.510 .200 .510 .200 .512 R.031 .200
SDMS130512R-PP SDMS130516R-PP ZDES130515R
.512 .512 .510
| .512 | R.047 | .200 | .512 | R.062 | .200 | .510 | R.060 | .200 | ||
| ZDES130515R-001 | ZDMS130515R-PH | |||||||||
| .510 | .512 | |||||||||
| .510 | R.060 | .200 | .512 | R.060 | .200 |
| ades IN2530 IN2535 IN4005 IN4015 IN4030 IN4035 Application Part Number | |
| SDES130508N-PF | Flat Top - Landed Edge - 0.031“ R |
| SDES130508N-PF1 | Flat Top - Keen Edge - 0.031“ R |
| SDMS130508R-PP | Positive Geometry - 0.031“ R |
| SDMS130512R-PP | Positive Geometry - 0.047“ R |
| SDES130516N-PF | Flat Top - Landed Edge - 0.062“ R |
| SDES130516N-PF1 | Flat Top - Keen Edge - 0.062“ R |
| SDMS130516R-PP | Positive Geometry - 0.062“ R |
| SDES130524N-PF | Flat Top - Landed Edge - 0.093“ R |
| SDES130524N-PF1 | Flat Top - Keen Edge - 0.093“ R |
| SDES130532N-PF | Flat Top - Landed Edge - 0.125“ R |
| SDES130532N-PF1 | Flat Top - Keen Edge - 0.125“ R |
| ZDES130515R | Flat Top - Splitters - Landed Edge - 0.060“ R |
| ZDES130515R-001 | Flat Top - Splitters - Keen Edge - 0.060“ R |
| ZDMS130515R-PH | Positive - Splitters - 0.060“ R |
HARDWARE
| Screw | Retention Bolt | Coolant Bolt (Optional) | Driver Handle | Screw Driver Blade | Driver Bit (Optional) | Torque Driver Handle (Optional) | |||
| 5J5P-20R01 | SM40-100-R0 | SD-06-46 | SD-06-89 | DS-A00T | DS-T156B | DS-T15B1 | DT-35-02 | ||
| 5J5P-25R01 | SM40-100-R0 | SD-06-46 | SD-06-89 | DS-A00T | DS-T156B | DS-T15B1 | DT-35-02 | ||
| 5J5P-30R01 | SM40-100-R0 | SD-08-46 | SD-08-92 | DS-A00T | DS-T156B | DS-T15B1 | DT-35-02 | ||
| 5J5P-40R01 | SM40-100-R0 | SD-12-82 | SD-12-99 | DS-A00T | DS-T156B | DS-T15B1 | DT-35-02 |
