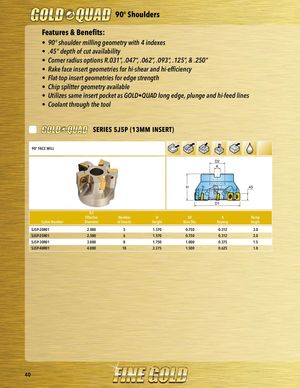

90° Shoulders
Features & Benefits:
• 90° shoulder milling geometry with 4 indexes
• .45” depth of cut availability
• Corner radius options R.031”, .047”, .062”, .093”, .125”, & .250”
• Rake face insert geometries for hi-shear and hi-efficiency
• Flat-top insert geometries for edge strength
• Chip splitter geometry available
• Utilizes same insert pocket as GOLD•QUAD long edge, plunge and hi-feed lines
• Coolant through the tool

SERIES 5J5P (13MM INSERT)
90° FACE MILL

D2
K


H .45

D1
D1
Effective Number H D2 K Ramp
Cutter Number Diameter of Inserts Height Bore Dia. Keyway Angle
5J5P-20R01 2.000 5 1.570 0.750 0.312 3.0
5J5P-25R01 2.500 6 1.570 0.750 0.312 2.0
5J5P-30R01 3.000 8 1.750 1.000 0.375 1.5
5J5P-40R01 4.000 10 2.375 1.500 0.625 1.0


40
